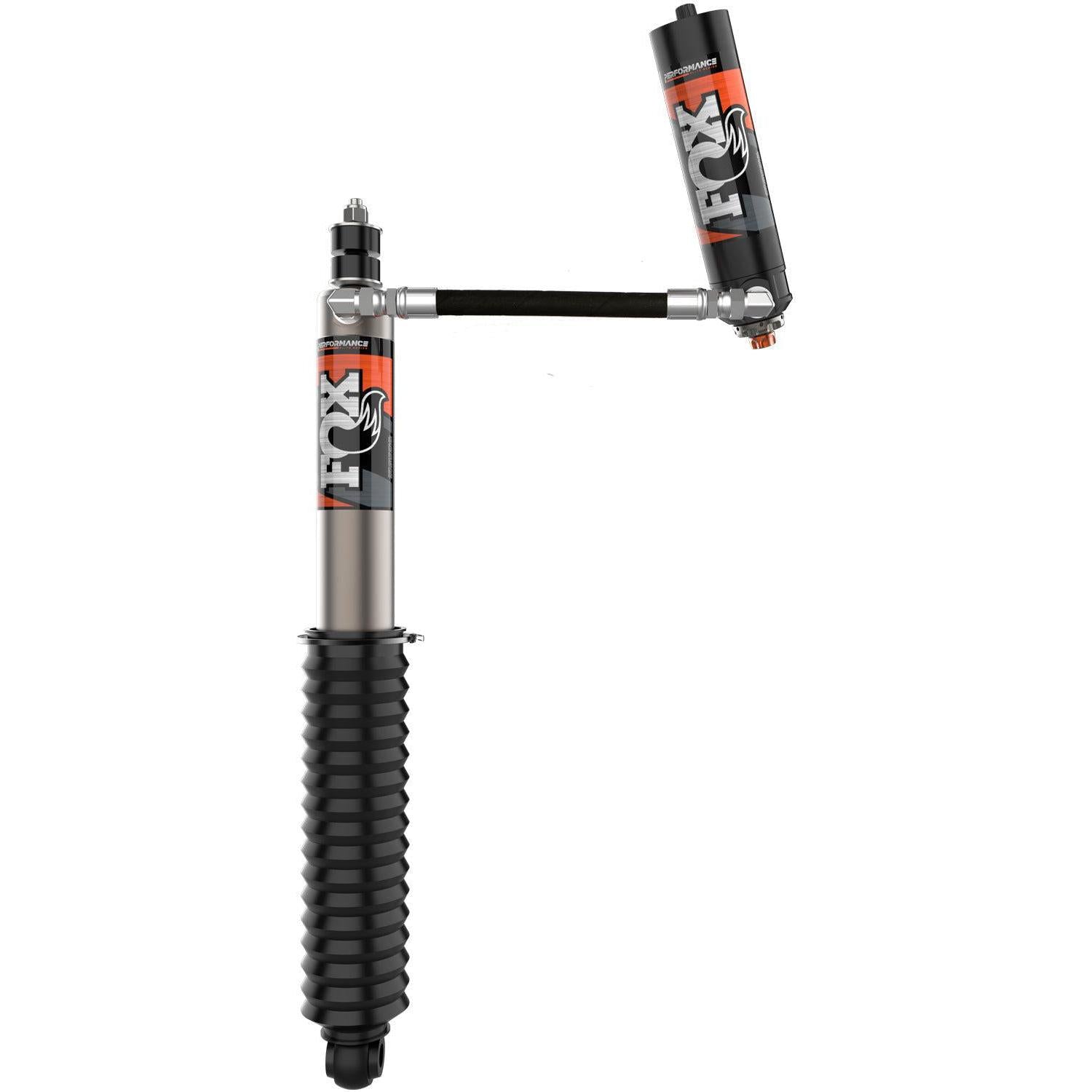

2022-2024 Tundra 2.5 Elite Series 0-1.5" Lift Rear RR Shock (883-26-139)

Fits

FOX Performance Elite Series 2.5 shocks improve the stock Tundra platform by eliminating the vehicle's forward rake, providing a level ride height, and increasing the suspension articulation of your truck.

Type III anodization prevents corrosion and wear of the 2.5" aluminum bodies. External Reservoirs increase oil capacity, remove dead space from the shock Body, and decrease the harshness associated with nitrogen ramp-up.

Cooler shock temperatures, more travel, and consistent damping forces result. Each reservoir features a Dual Speed Compression (DSC) adjuster, strategically mounted to eliminate interference with aggressive tires at full lock.

Part Number: 883-26-139

• 2.5" impact-extruded and CNC machined 6061-T6 Type III anodized aluminum Body
• 2.5" smooth bore and honed seamless alloy Reservoir with Dual Speed Compression (DSC) adjuster
• Application-specific springs
• 7/8" hard chrome-plated steel Shafts
• Vehicle-specific Valving to maximize performance
• Redundant sealing pack system: main seal, wiper seal, scraper seal
• Rear Shaft boot to protect against roost spray

Specs:

• Travel 9.18
• Rear Lift Height 0-1.5
• Extended Length 25.48
• Compressed Length 15.35
• Top Mount Stem
• Bottom Mount Eyelet
