2022-2024 Tundra 3" SST Lift Kit (69-52330)

Fits

ReadyLift has always been a go-to if you're looking for a quick, cost-effective, and safe way to give your Tundra a modest lift without compromising factory suspension components or ride quality and handling. Featuring a front strut spacer to eliminate the hassle, time, and concern of compressing springs while the rear airbag spacers allow you to maintain the full range of use.

Part Number: 69-52330

• Maintains full operation and range of OEM load-leveling system
• Retains factory turning radius
• No need to compress springs
• No modifications nesessary
• Allows fine-tuning adjustments
• Does not affect the factory aid control system

Tire Fitment:

• 35x12.50 tall tires when used on 18"x9" wide wheels with a +12mm offset

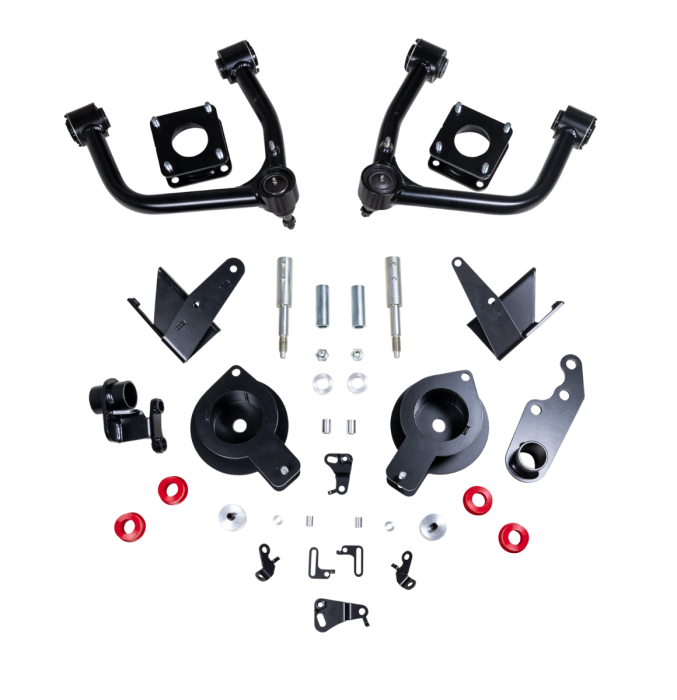

Includes:

• Front Strut Spacer
• Driver & Passenger Upper Control Arm
• Driver & Passenger Front Differential Drop
• Crush Sleeve, Differential Drop Polyurethane Bushing
• End Link Spacers
• Driver & Passenger Brake Line Relocation Bracket
• Rear Brake Line Relocation Bracket
• Driver & Passenger Airbag Spacer
• Driver & Passenger Bump Stop Extension
• Rear Shock Extensions
• Rear Brake Line Spacers - Tall
• Rear Brake Line Spacers - Short
• Airbag Ride Height Sensor Brackets
• Hardware Pack

•  Not for use on 2022+ Tundra TRD Pro w/ Bilstein coilover shocks, the TRD rear sway bar option for trucks equipped with Load-Leveling Rear Height Control Air Suspension
• Only works with factory 20" wheels - will not work with factory 18" wheels. Most aftermarket wheels are compatible (confirm fitment prior to installation)
• Toyota OEM lift kit cv shafts PT362-3432B and PT362-3431B are recommended by Toyota and required by ReadyLIFT on all lifted 22-UP Tundras. Failure to use these axle shafts may lead to damage if used in 4WD not covered by the manufacturer and will not be covered by ReadyLIFT ReadyGuard warranty
