2021-2026 Bronco Wheel Bearing Assembly (AX1104)

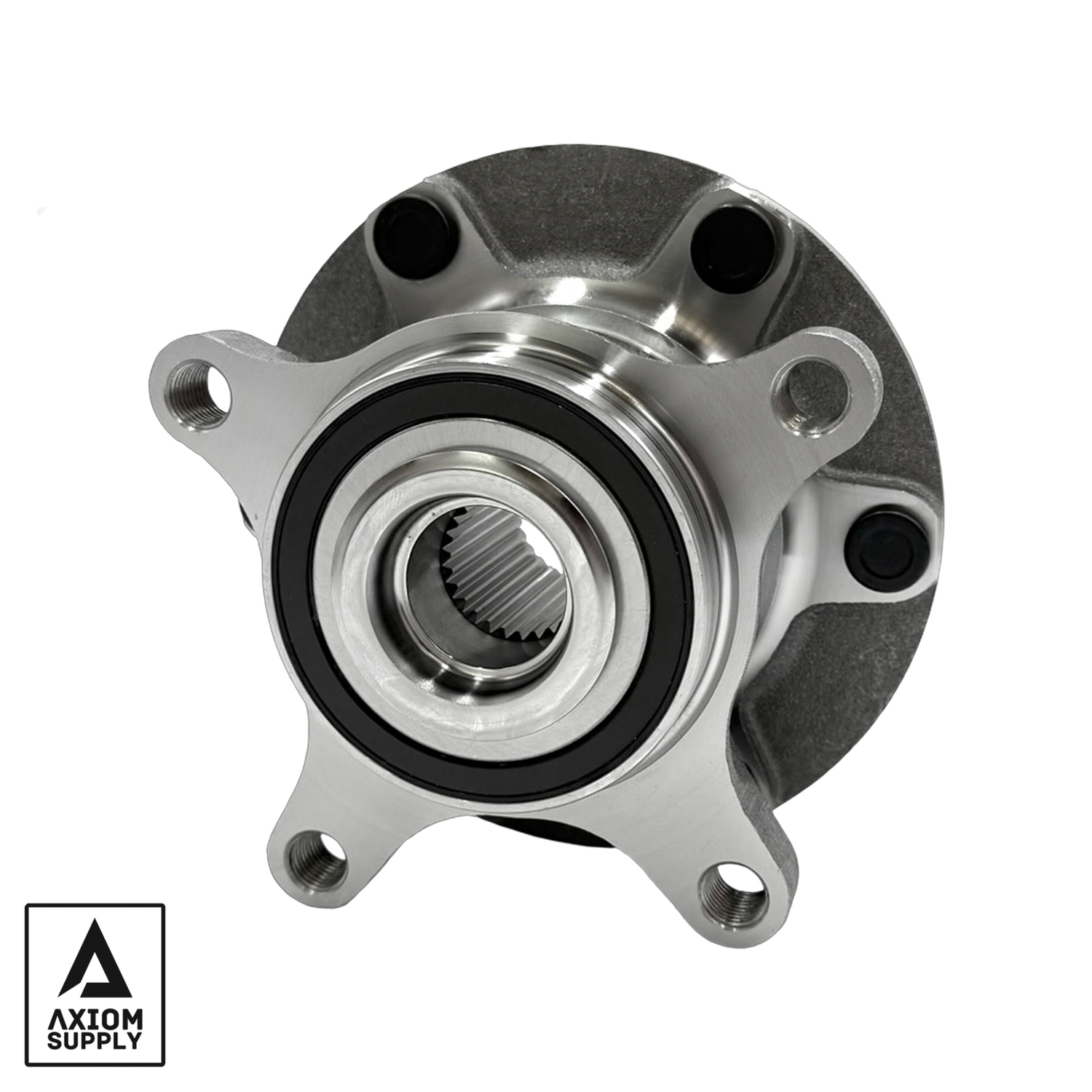

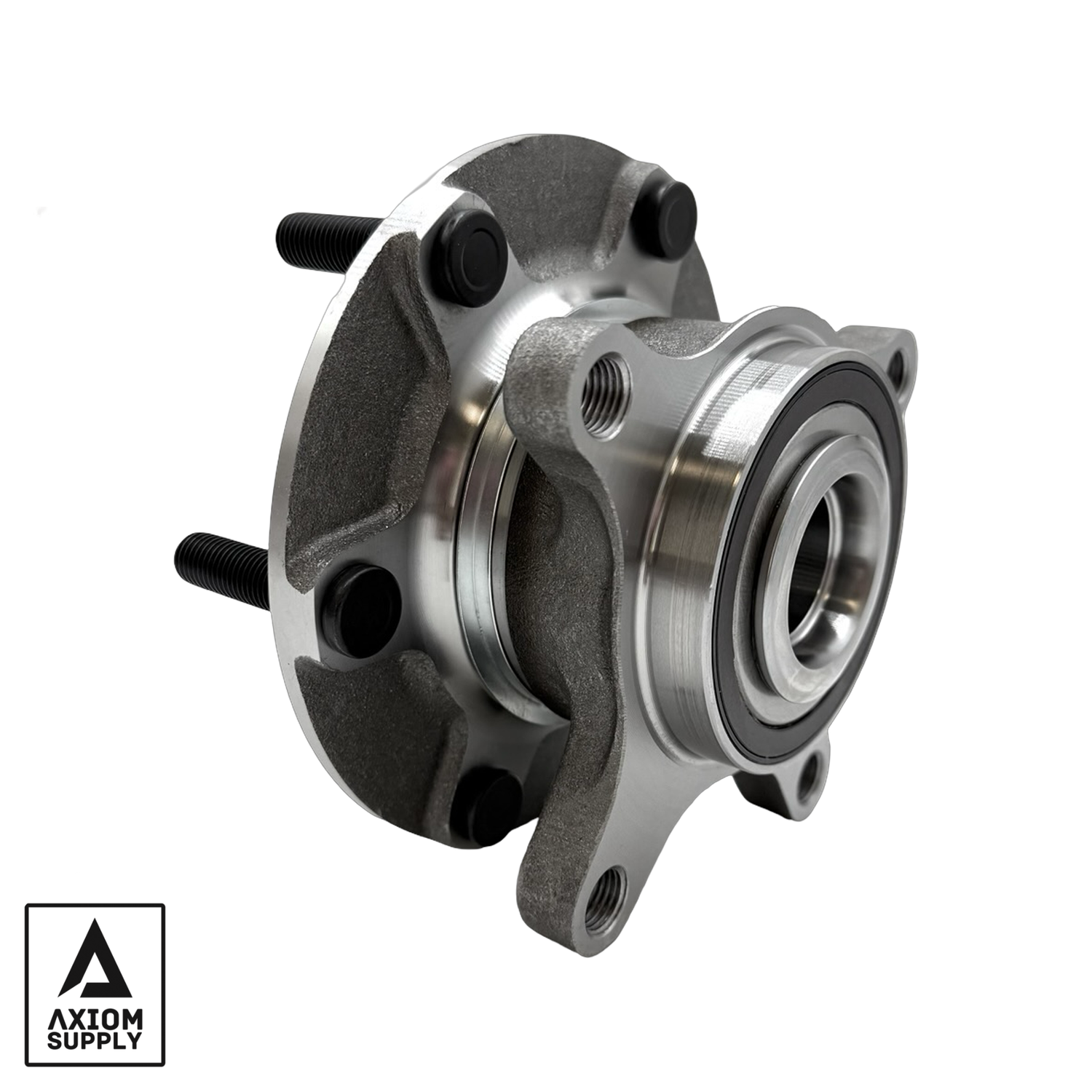

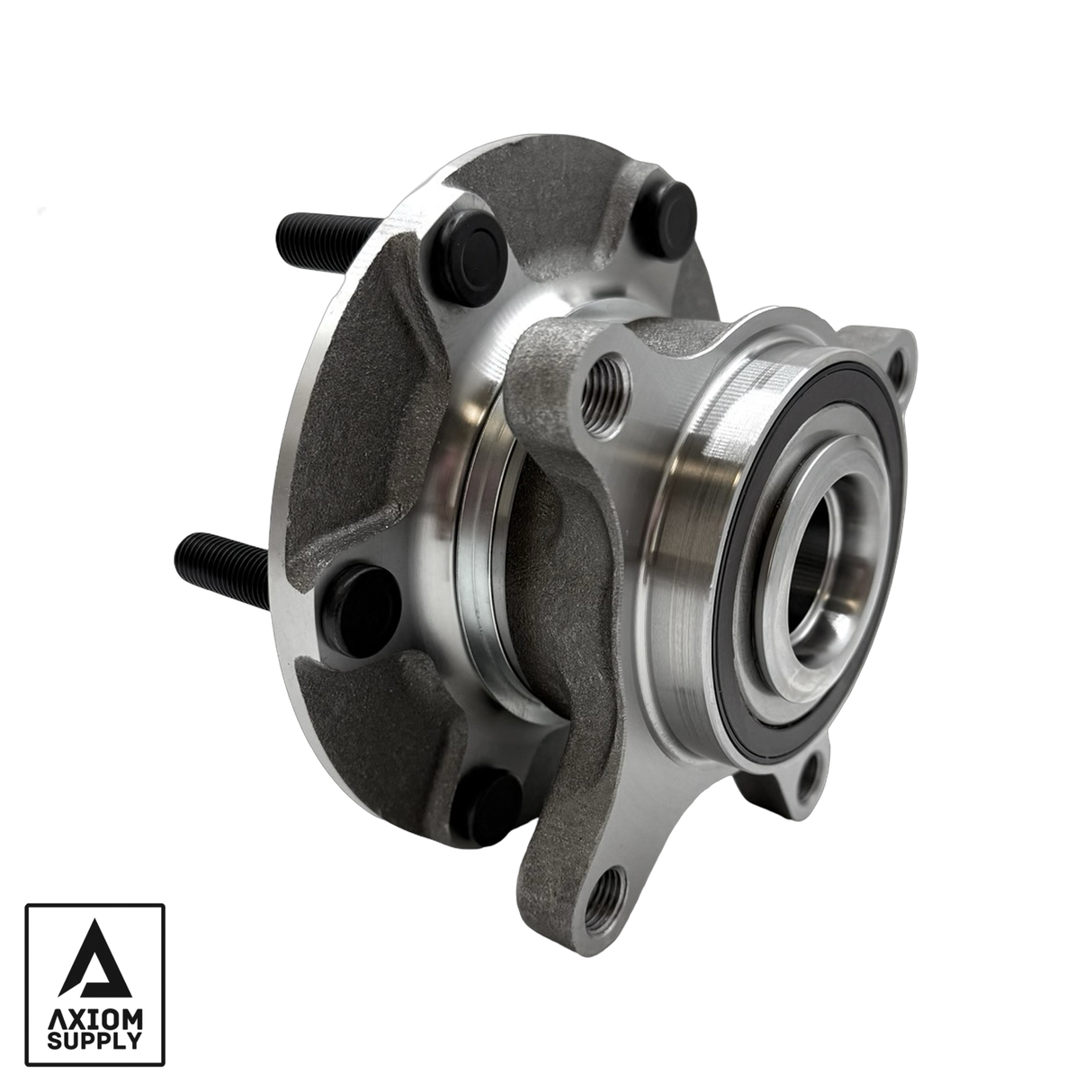

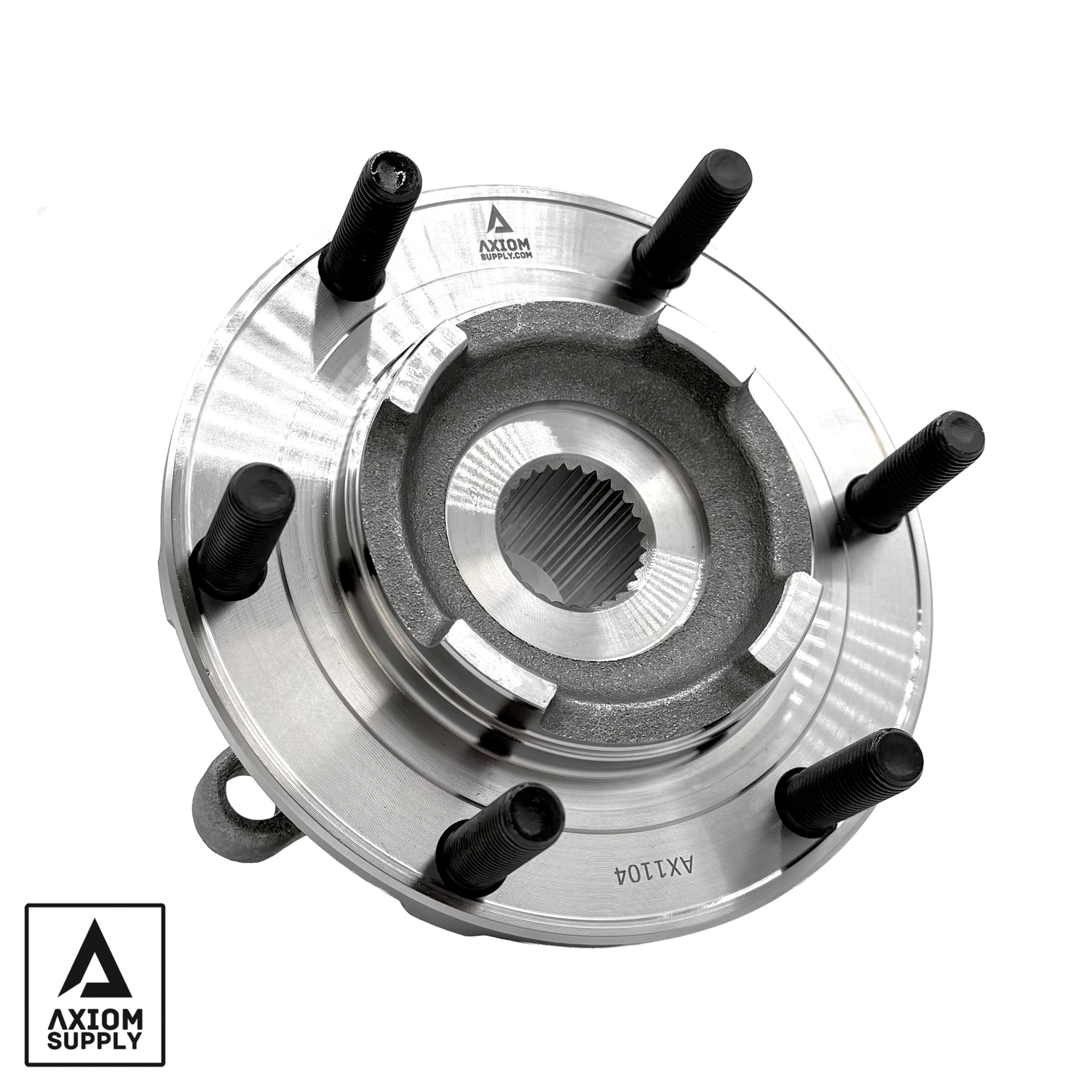

A tired front hub on a Bronco shows up as an ABS light, a hum that builds with speed, and steering that never feels planted. This Axiom Supply front wheel bearing and hub assembly is a complete bolt-in replacement for 2021-2026 Broncos and 2019-2024 Ranger 4WD trucks, built with a proprietary bearing and hub structure that reduces hub-face deflection under the stress of oversized tires and lifted setups. It fits either the left or right front position, installs in about 2 hours with no modifications, and interchanges with Ford OE MB3Z-1104-E.

Part Number: AX1104

• Precision tapered roller bearings packed with high performance grease for maintenance-free operation
• Grade 10.9 cold-formed, zinc-plated wheel studs for tensile strength and corrosion protection
• Durable ABS sensor built to maintain accurate signal transmission through heat, mud, and moisture
• Configuration: 6x5.5" (6x139.7) bolt pattern with M12-1.50 lug studs
• Interchanges with Ford OE MB3Z-1104-E
• Complete bolt-in unit, fits both left and right spindle positions
• Proprietary bearing and hub structure reduces hub-face deflection under load for tighter steering response and improved braking stability

• 1 x Wheel Bearing & Hub Assembly with Integrated ABS Wire

• Excludes Bronco Raptor models
• Torque specs: axle nut 221 lb-ft, spindle bolts 133 lb-ft, main caliper bolts 166 lb-ft, lug nuts 110 lb-ft
• Typical installation time is approximately 2 hours with no special modifications required
