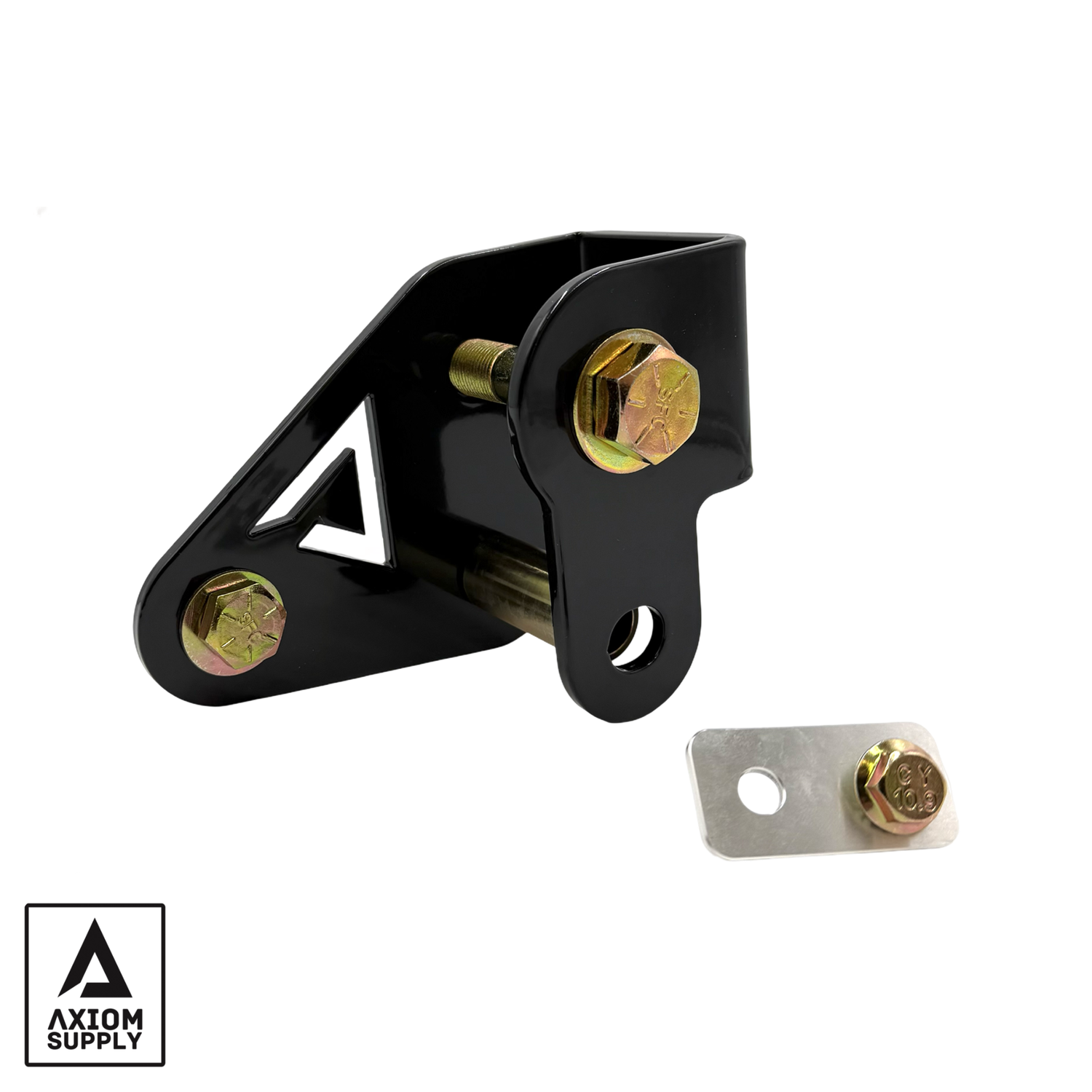

2021-2026 Bronco Rear Track Bar Relocation Kit (AXBRTB01)

Lift a Bronco and the rear roll center drops away from the vehicle's center of gravity, which hurts handling, especially with weight up high or behind the tailgate. The Axiom Supply Rear Track Bar Relocation Kit bolts to the factory axle housing and raises the track bar mounting point to bring the rear suspension back into proper alignment. It works with factory and aftermarket adjustable track bars, and the included brake line relocation tab provides clearance for the new bolt location.

Part Number: AXBRTB01

• 3/16" laser-cut and formed plate steel bracket with durable gloss black powder coat finish
• Raises the rear roll center closer to the vehicle's center of gravity for improved handling
• Fully bolt-on installation to the factory axle housing, no welding
• Works with both factory and aftermarket adjustable track bars
• Grade 10.9 gold zinc coated hardware resists corrosion in all environments
• Precision machined sleeve and reinforced washer for optimal fit
• Includes a rear brake line relocation tab for proper clearance at the new bolt location

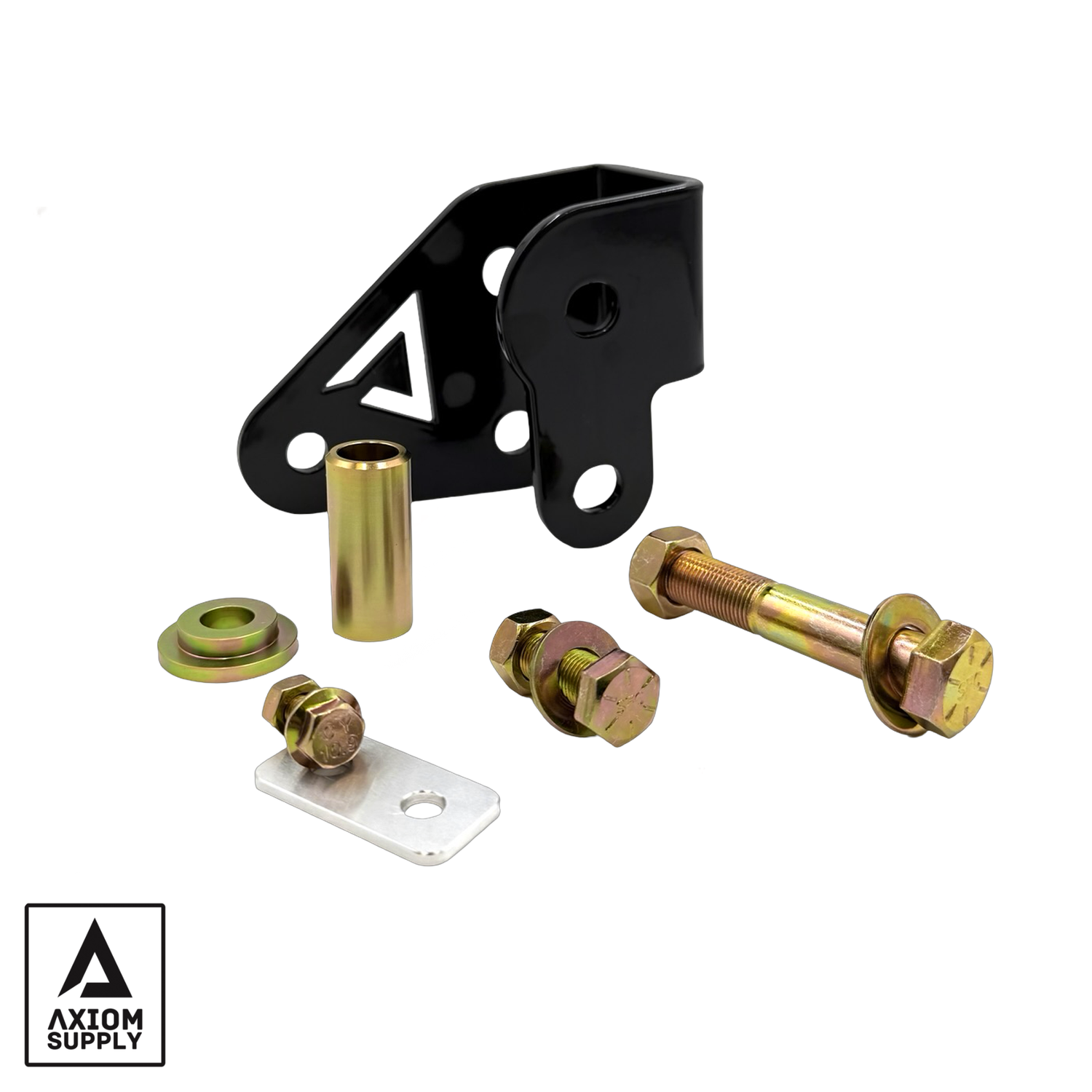

• (1) Track Bar Relocation Tab
• (1) Brake Line Relocation Bracket
• (1) Hardware Pack

• Not for use on stock-height vehicles.
• Minimum lift required: Base models +2", Badlands +1.5", any Sasquatch-equipped model +1".
• Rear shocks must measure at least 18.15" at full compression, otherwise the bracket can contact the frame.
• Intended for use with a factory or aftermarket adjustable track bar.
