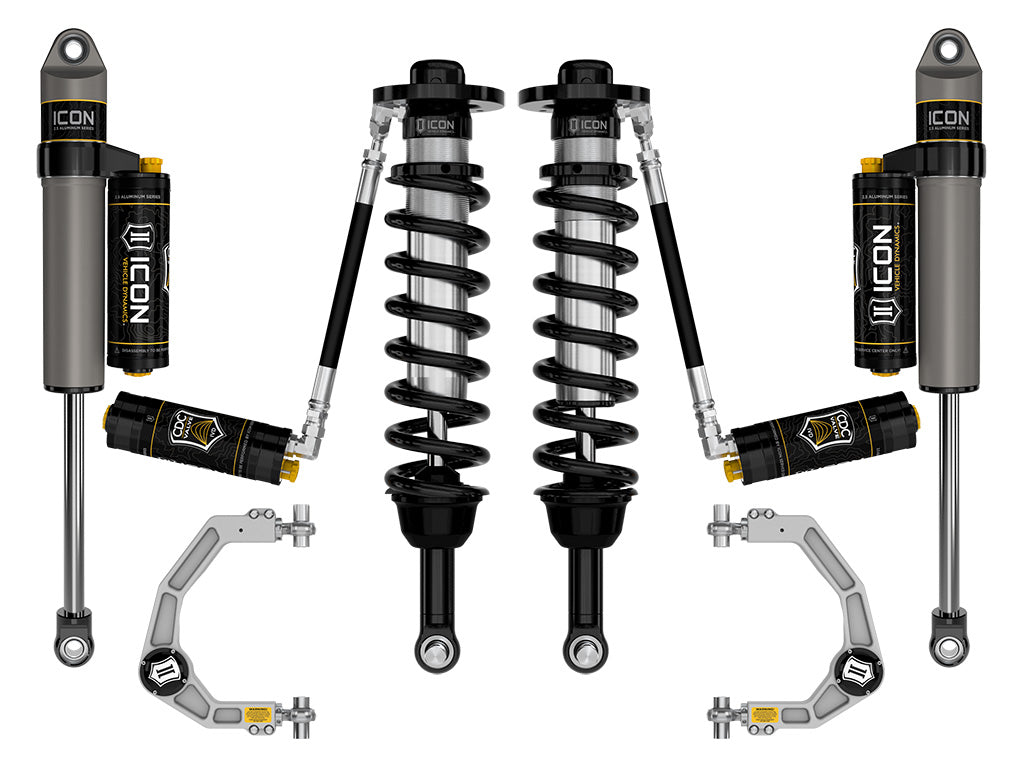

2021-2025 F-150 ICON CDCV Front and Rear Lift Kit (ICOK93134)

The ICON CDCV (Compression Damping Control Valve) suspension system for the 2021-2025 Ford F-150 delivers precision-tuned damping performance with 2.75-3.5" of lift. The kit includes adjustable coilovers, billet aluminum upper control arms engineered to work as a complete package for consistent damping and handling. Bolt-on installation with no cutting or welding required.

Part Number: ICOK93134

• Adjustable coilovers offer 2.75-3.5" of front lift height over stock
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling
• Billet Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK rod end bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin
• 2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts
• 6061 Aircraft grade aluminum CNC machined components
• 100% Bolt-on system - no cutting or welding necessary for install

• ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
• ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Tires: 34" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

• Only fits 4WD models
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Will Not Work With Factory Installed Electronically Controlled Suspension
• Equipped With Dynamic Bending Headlamps Purchase Part# 611071
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• Will not fit F-150 Tremor or F-150 Raptor
• Not compatible with models equipped with OnBoard Scales
• Only compatible with OE steering knuckles. Do not install in combination with any aftermarket steering knuckles.
• Models equipped with PowerBoost hybrid engines will have lift height range of 2.5-3.25" over stock
• Models equipped with Power-Stroke diesel engines will have lift height range of 2.25-3" over stock
• Included rear shocks are compatible with 0-1" of rear lift over stock on most models
