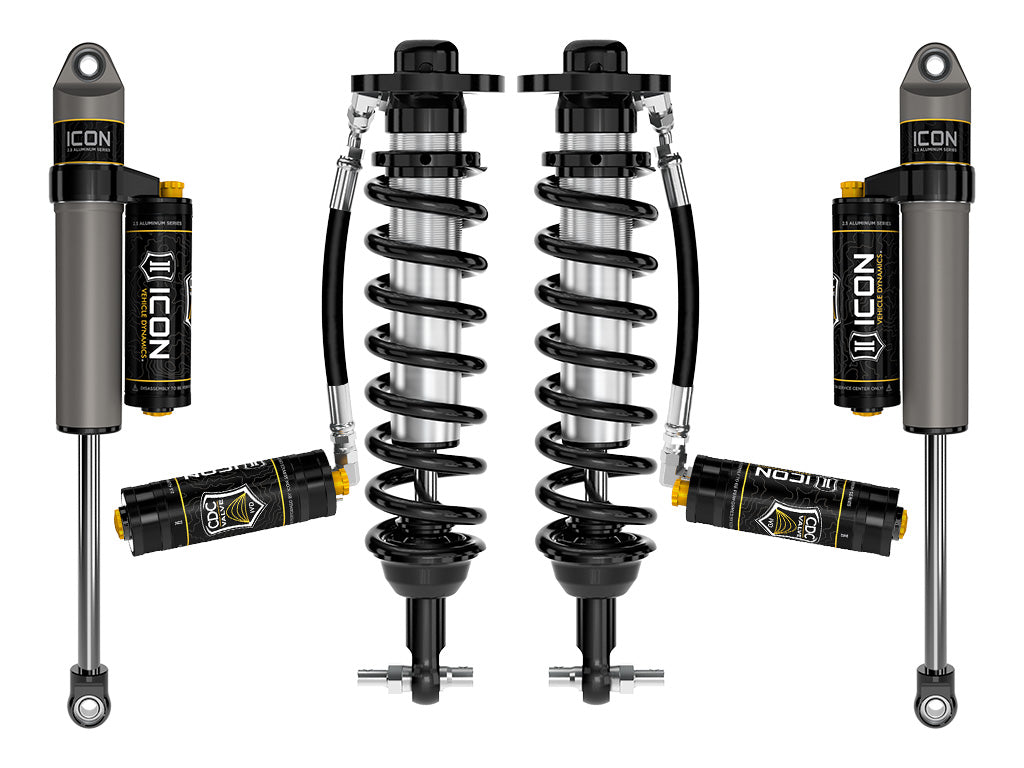

2021-2025 F-150 ICON CDCV Front and Rear Lift Kit (ICOK93114)

Fits

The ICON CDCV (Compression Damping Control Valve) suspension system for the 2021-2025 Ford F-150 delivers precision-tuned damping performance with 0-2.75" of lift. The kit includes adjustable coilovers engineered to work as a complete package for consistent damping and handling. Bolt-on installation with no cutting or welding required.

Part Number: ICOK93114

• Increased wheel travel and ride quality over stock with no change in towing capacity
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Adjustable coilovers from 0-2.75" of lift height
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• 6061 Aircraft grade aluminum CNC machined components
• High strength alloy CNC machined lower bar pins
• FK rod end bearings for extended longevity and minimal deflection
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series rear shocks feature hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• 100% Bolt-on system - no cutting or welding necessary for install

• ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
• ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

• Only fits 4WD models
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Will Not Work With Factory Installed Electronically Controlled Suspension
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs.
• Will not fit F-150 Tremor or F-150 Raptor
• Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.5" over stock
• Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.25" over stock
• Included rear shocks are compatible with 0-1" of rear lift over stock on most models
