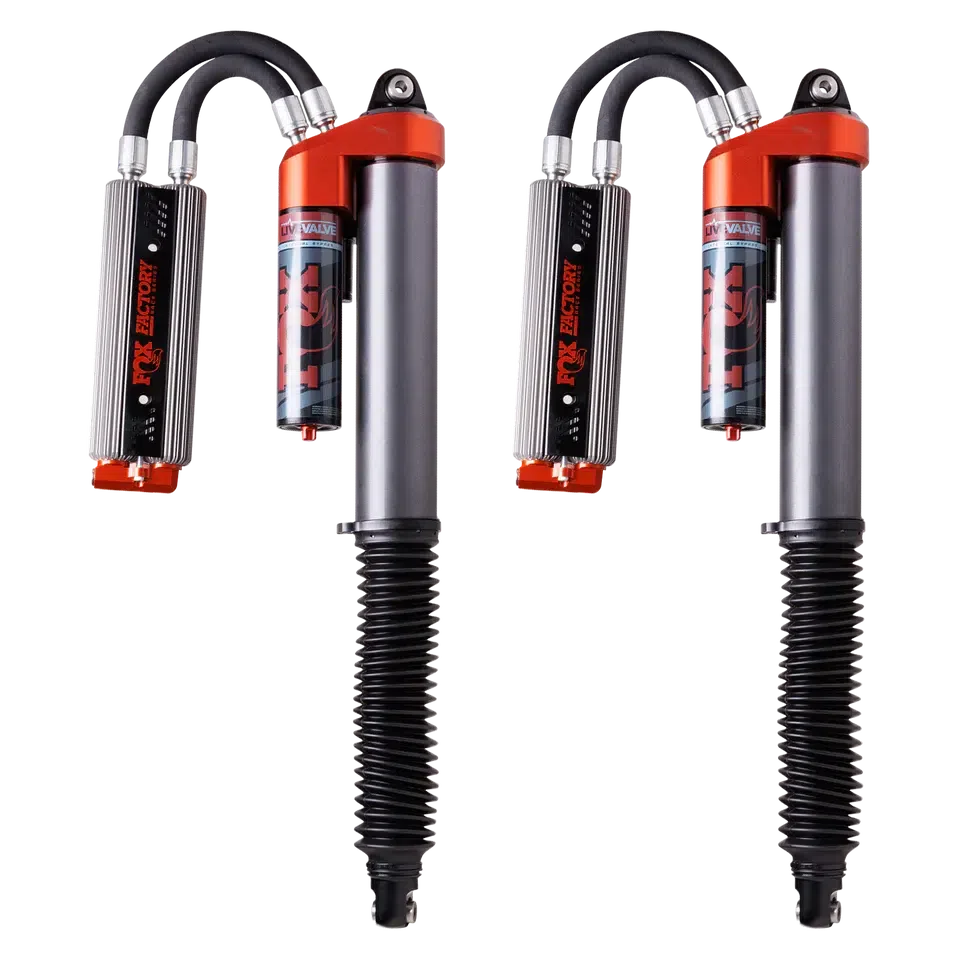

2021-2024 Raptor 3.2 Live Valve 0-1" Lift Internal Bypass Rear R/R (883-06-183)

Fits

Note: Does not fit Dual Valve Equipped Trucks

FOX Factory Race Series 3.2 Live Valve Internal Bypass shocks for the Ford Raptor deliver semi-active adjustment, position-sensitive damping technology, and plug-and-play integration with OEM electronics in a bolt-on kit.

Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.

Part Number: 883-06-183

• 3.2” shock bodies can withstand internal pressures of over 3,000 psi.
• Position- and velocity-sensitive damping maximize control through any terrain
• Patented, Internal Bypass is specifically tuned to accommodate a lifted ride height
• Coil-overs utilize 1” hard chromed steel shafts and an optimized spring rate
• Recirculating dual hoses, rear ECS2 coolers, and front finned reservoirs increase shock cooling
• Redesigned shock mounting improves clearance under extreme suspension travel
• Guaranteed to fit all 3rd gen single valve Raptors.

Specs:

• Extended Length: 32.25"
• Compressed Length: 19.99"
• Travel Length: 12.26"
• Top Mount: OEM
• Bottom Mount: Eyelet
