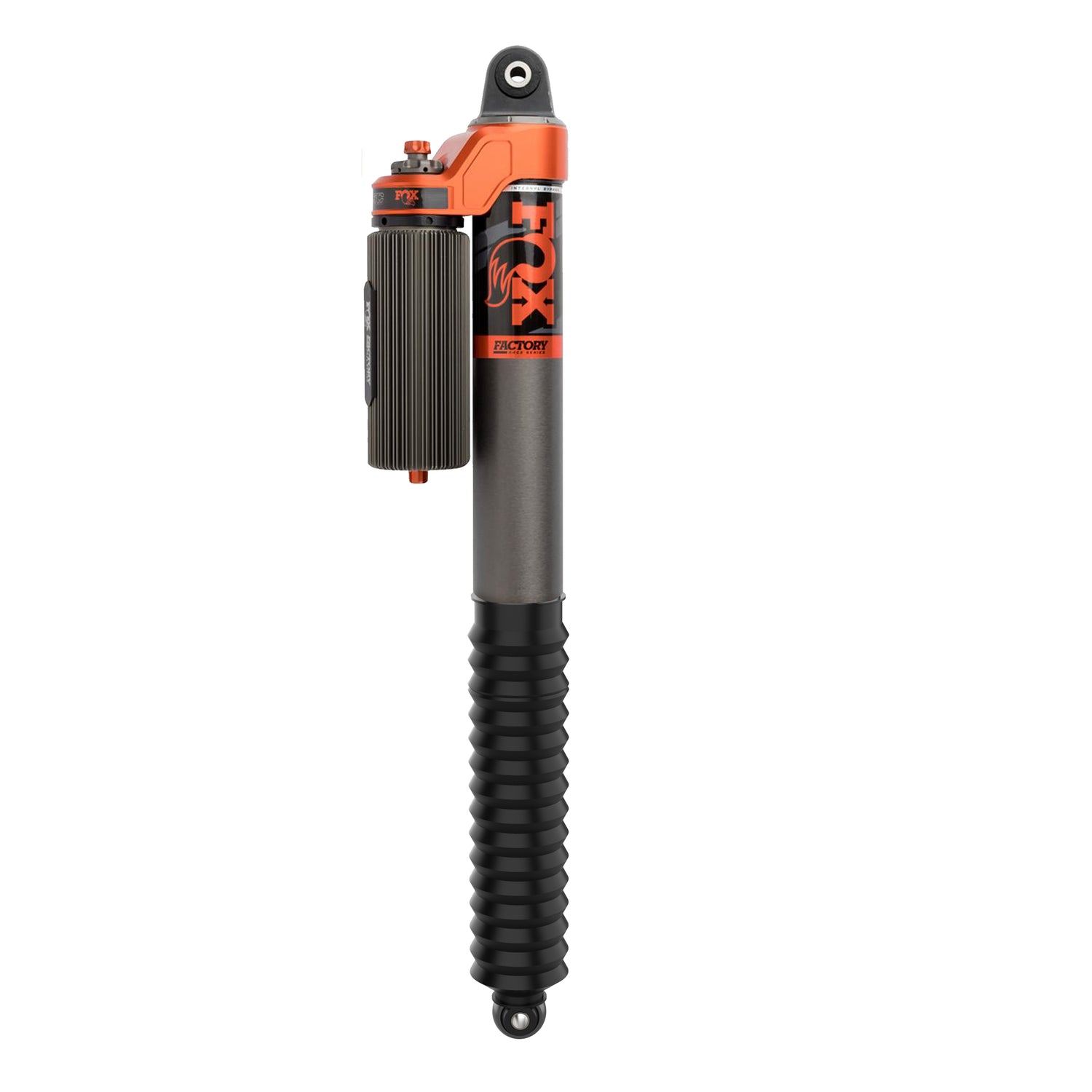

2021-2024 F-150 3.0 Race Series 0-1" Lift Internal Bypass Piggyback Rear Shock

Fits

Increase your vehicle's off-road capability by extending drop-out travel in most applications. Experience on-road comfort with performance-minded shock valving for a connected ride with less vehicle sway. Consistent and fade-resistant performance due to high-quality materials: aluminum bodies, race-developed main piston, and a true internal floating piston (IFP) to separate gas and oil.

Part Number: 883-26-121

• 3" impact-extruded and CNC machined 6061-T6 hard-anodized aluminum Body
• Patented, internal bypass design
• Application-specific springs
• 7/8" stainless steel Shafts
• Vehicle-specific tuning maximizes performance
• Redundant sealing pack system: main seal, wiper seal, scraper seal
• Recirculating Reservoir bridge keeps shock temperatures cool
• Finned Reservoir, with DSC adjuster
• Rear Shaft guards protect against roost

Specs:

• Travel: 10.72"
• Rear Lift Height: 0-1"
• Extended Length: 28.3"
• Compressed Length: 17.58"
• Top Mount: Eyelet
• Bottom Mount: Eyelet
