2021-2024 Bronco 4" HD SST Lift Kit (69-21410)

Note: Will NOT fit Bronco Sport models

Engineered to give your Bronco superior off-road performance, durability over any terrain, and a more aggressive curb appeal, especially if you plan on installing larger wheels and tires. This ReadyLift 4" SST Lift Kit features fully bolt-on, high-angle HD ball joints pre-installed into the control arms, eliminating the need to modify the factory ball joints. This prevents ball joint binding, effectively improving articulation and maintaining factory geometry for an overall amazing ride!

Part Number: 69-21410

• 100% bolt-on installation ‚no modifications required
• CNC machine aircraft-grade 6061 T6 billet Aluminum front spacers
• CNC turned 4130 Chromoly front preload spacers
• High-strength steel offset rear spacers
• .250" steel heavy-duty rear track bar bracket to optimize rear geometry

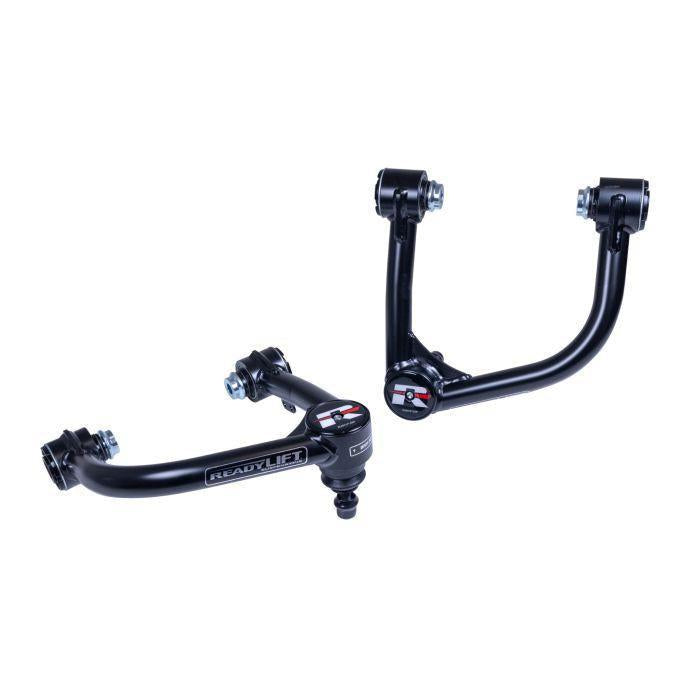

• High-performance tubular upper control arms
• Corrected ball joint angle and position to address caster/camber
• Dust cap to protect from debris
• High-grade hardware

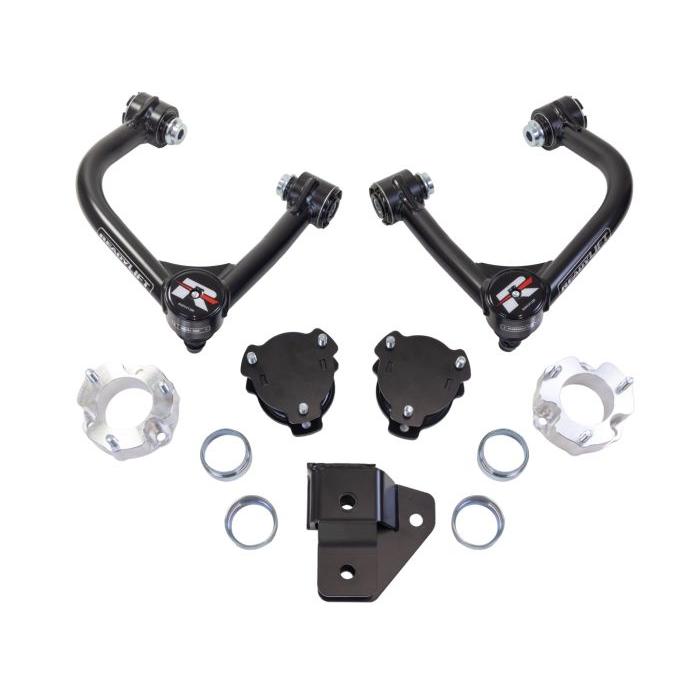

Includes:

• (2) Front strut spacers
• (2) Front preload spacers
• (1) Left upper control arm w/ ball joint
• (1) Right upper control arm w/ ball joint
• (2) Rear strut spacers
• (1) Rear track bar bracket
• Rear brake line bracket
• Hardware pack

Tire Fitment:

• Allows for up to 37x12.50 tall tires when used on 17"x8.5" wide wheels with a +18mm offset
• *Max tire size with trimming 38"x12.50" on 17"x8.5" wide wheels with a +18mm offset*

• Although 37" x 12.50" will work at ride height, the tires will still contact the front body mount and possibly the rear inner fender through wheel travel and steering lock to lock. If running this size tire and using the full suspension travel, these areas must be addressed.
• For standard suspension Broncos ONLY
• Not for use on Sasquatch Package-equipped vehicles, Badland, and Wildtrack equipped with Hoss 3.0 Fox shocks
