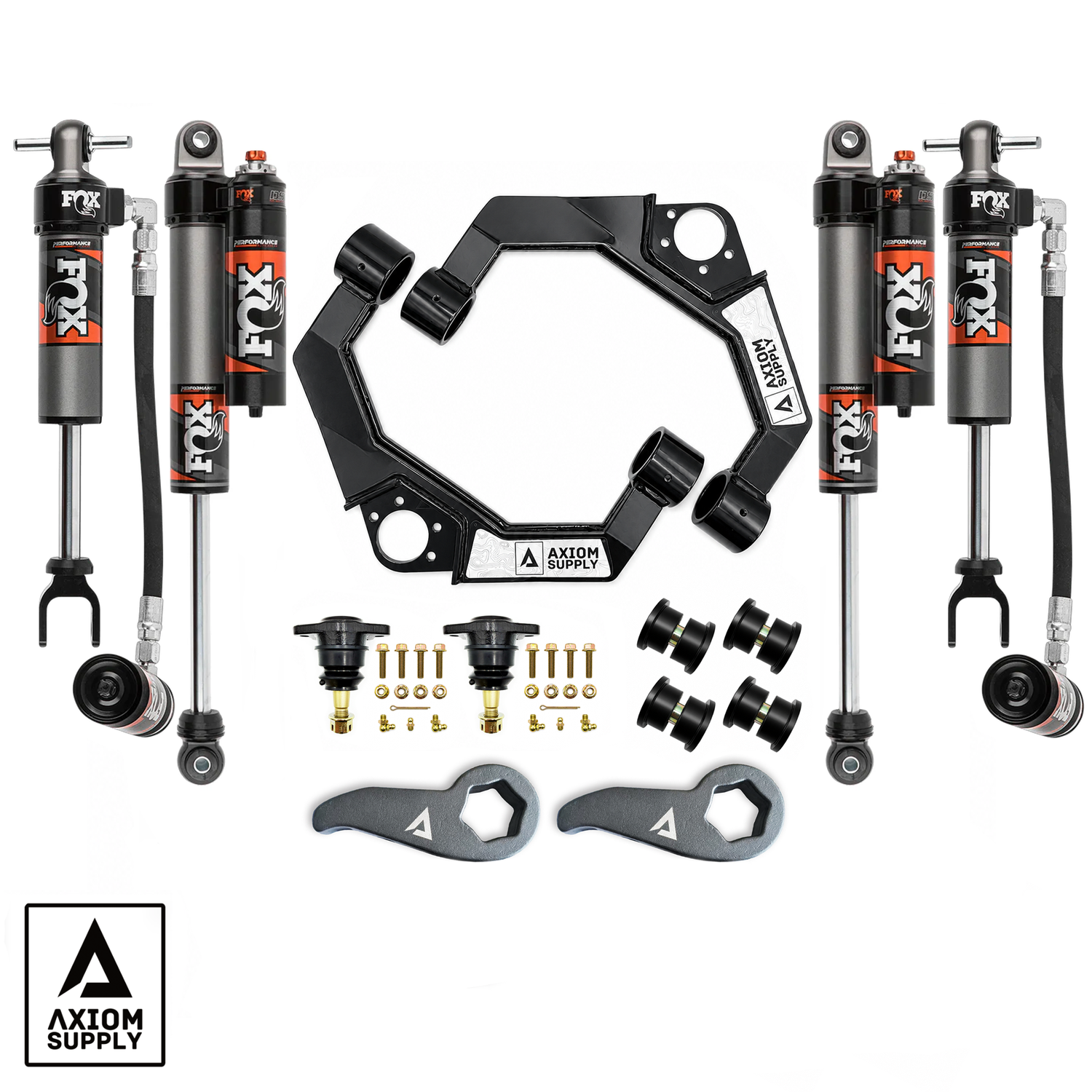

2020-2026 Duramax HD Stage 3 FOX 2.5 Performance Elite Leveling System (AXGM20STAGE3FOX2.5ELITE)

This is the top of Axiom Supply's GM HD lineup: a complete Stage 3 leveling package built around FOX Performance Elite Series 2.5 Reservoir shocks at all four corners. Forged torsion leveling keys add up to 2" of front ride height, double-shear upper control arms correct the geometry, and the remote-reservoir FOX 2.5s keep damping consistent through heavy towing and long off-road runs. Everything bolts on with no compromises for a 2020-2026 Silverado or Sierra HD.

Part Number: AXGM20STAGE3FOX2.5ELITE

• Complete set of four FOX Performance Elite Series 2.5 Reservoir shocks, front and rear, valved for leveled GM HD trucks
• External reservoirs add shock oil and nitrogen capacity for better heat management and fade resistance under towing and off-road use
• Large-bore 2.5" shock bodies with increased piston area and fluid volume for more damping capacity
• Monotube Internal Floating Piston design keeps damping consistent under sustained load
• Type II hard-anodized aluminum shock bodies dissipate heat and resist corrosion
• Forged torsion leveling keys deliver up to 2" of front ride height adjustment
• True double-shear upper control arms with AX6292 Grade 12.9 bolt-on upper ball joints
• Dual-position ball joint mounting for extra alignment flexibility

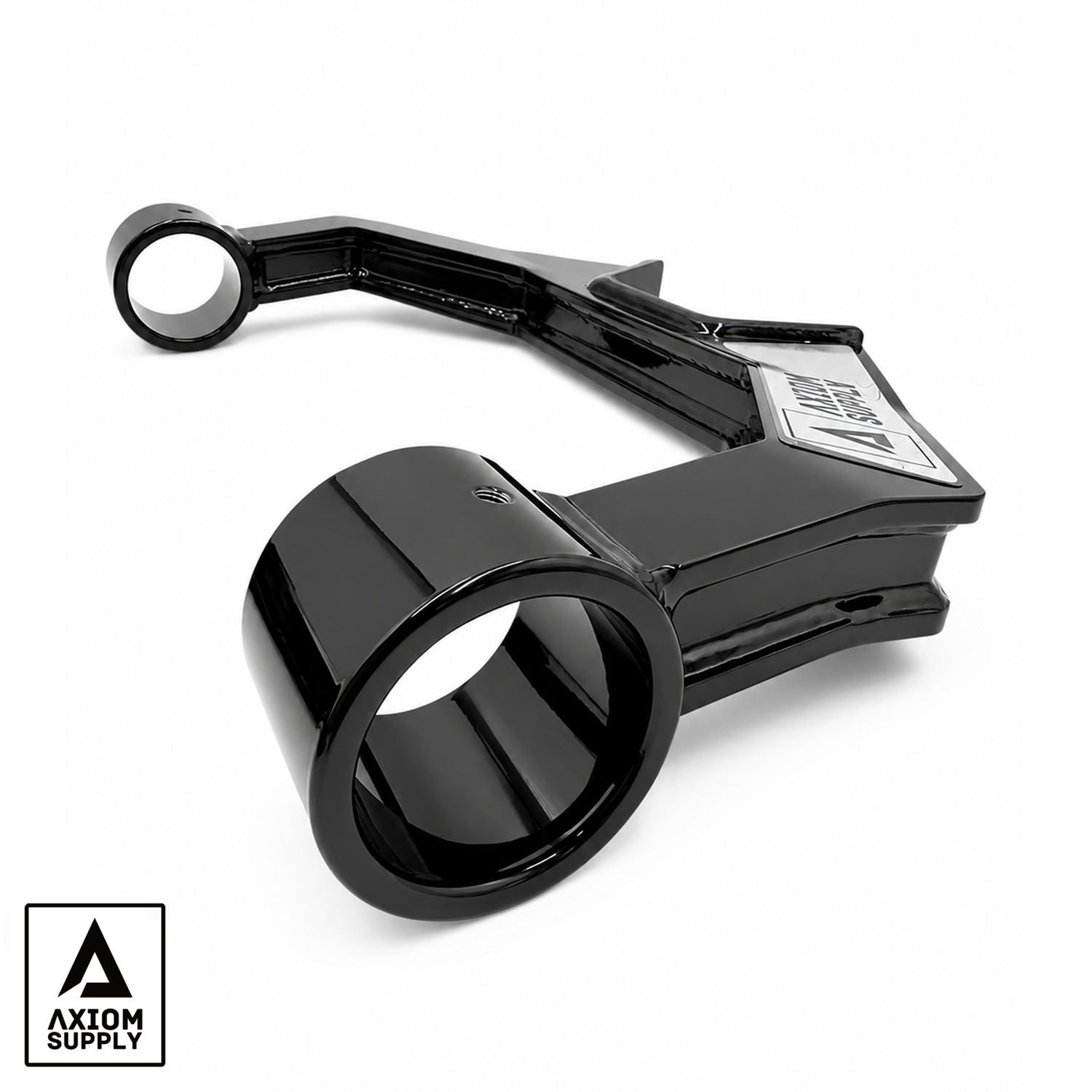

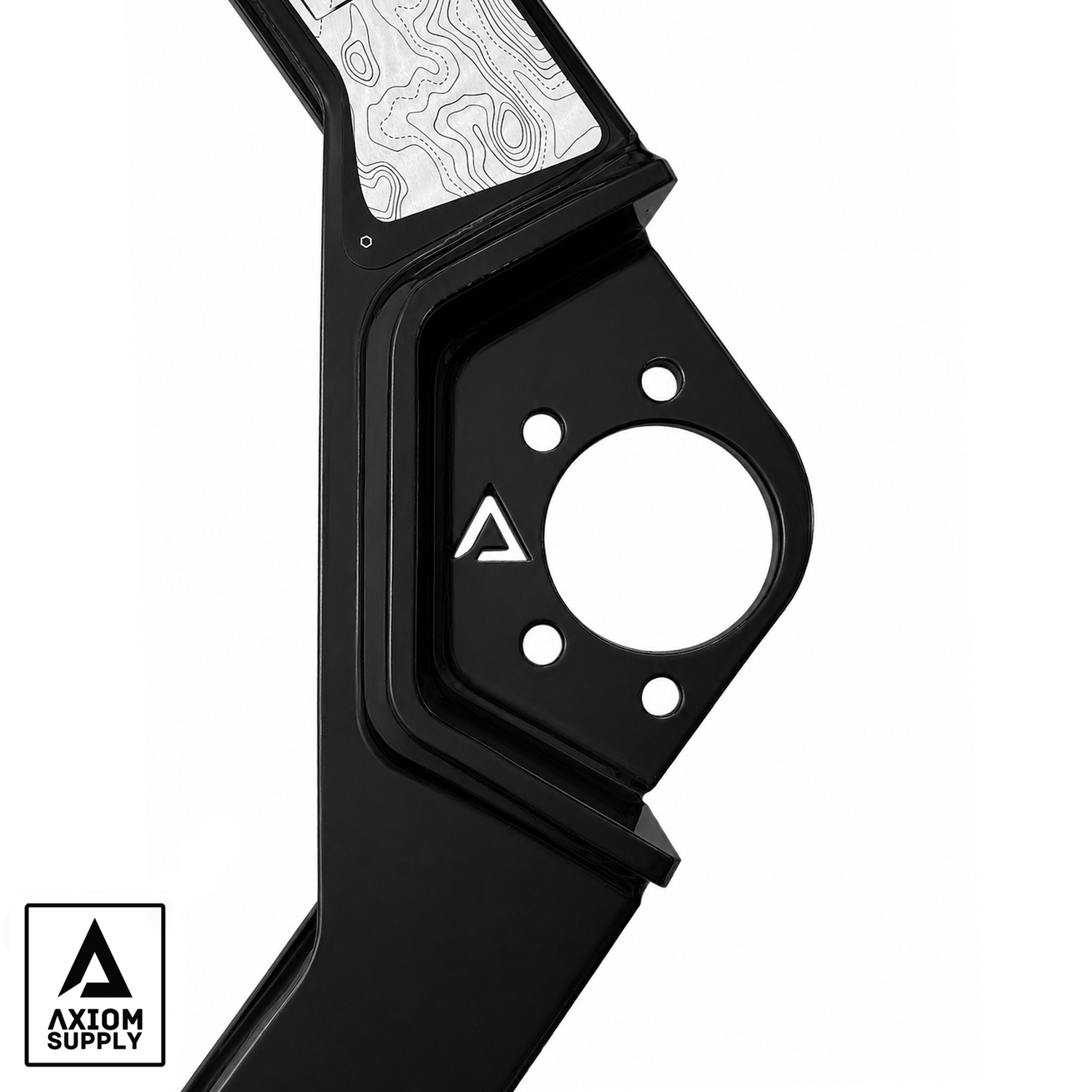

• (2) Axiom Supply Heavy-Duty Upper Control Arms
• (2) Axiom Supply AX6292 Grade 12.9 Bolt-On Upper Ball Joints
• (2) Axiom Supply Forged Torsion Leveling Keys
• (2) FOX Performance Elite Series 2.5 Reservoir Front Shocks
• (2) FOX Performance Elite Series 2.5 Reservoir Rear Shocks
• (4) Control Arm Sleeves
• (8) Control Arm Bushings
• (1) Complete Installation Hardware Kit

• Provides up to 2" of front ride height adjustment; works on stock, leveled, and lifted trucks.
• Compatible with most aftermarket suspension systems that use factory-style upper control arm mounting locations.
• Tires wider than 11.50" may contact the control arm with certain factory wheel configurations; additional wheel offset or spacers may be required.
• Apply 3 pumps of grease to each ball joint at install, then service every 5,000 to 7,000 miles. Do not over-grease.
