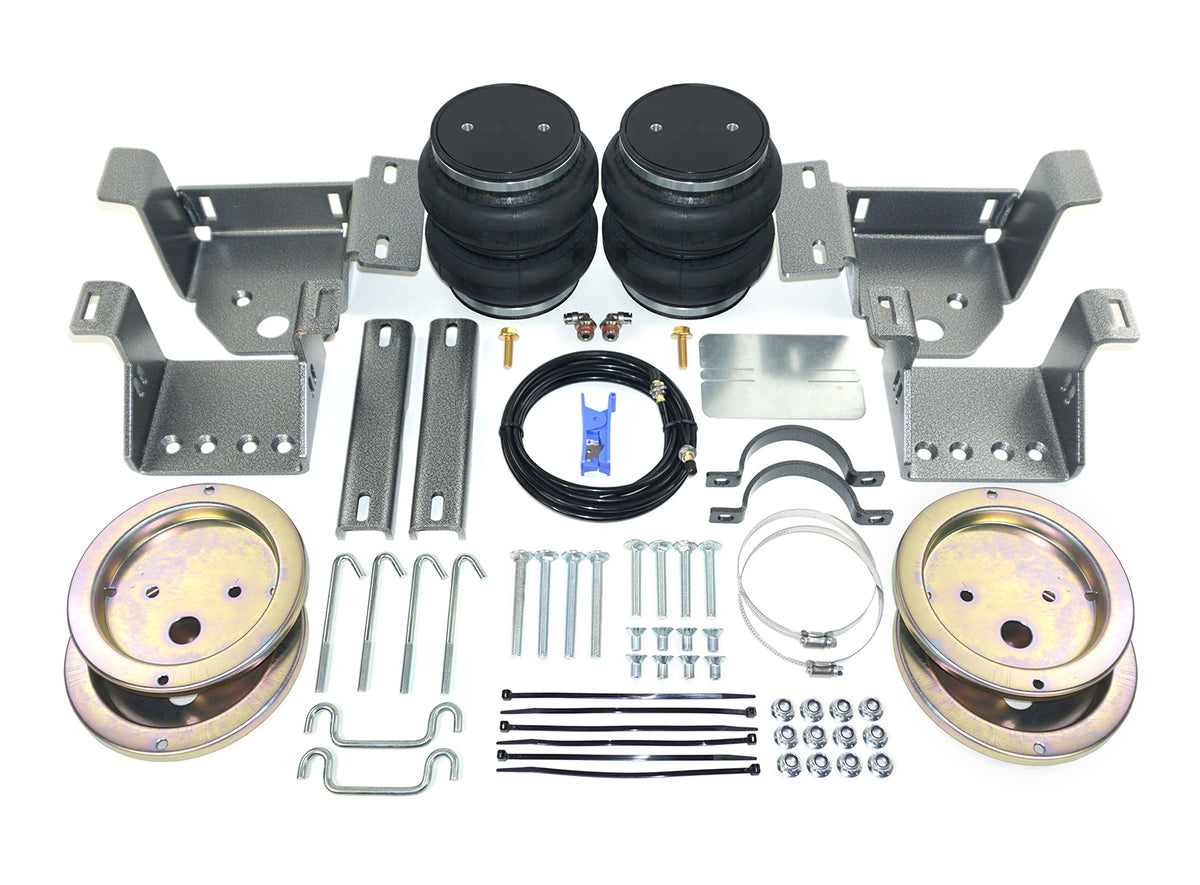

2020-2026 Duramax Alpha XD 7500 Air Suspension Kit W/ 5th Wheel Prep (HP10725-X)

Note: This is the 5th wheel version. It fits trucks with (OEM) 5th wheel prep packages, where the standard HP10585-X kit does not.

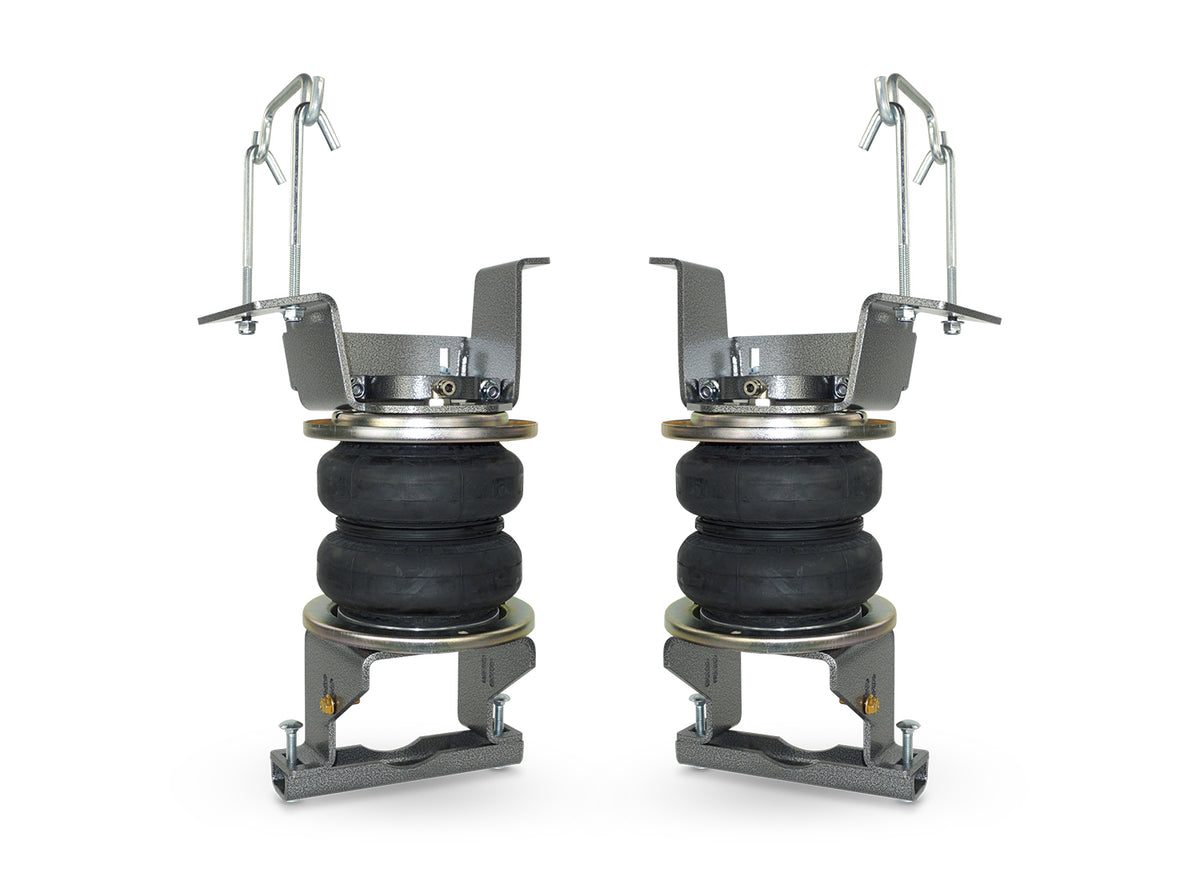

The ALPHA XD is Pacbrake's heavy end of the range. Big 7 inch double convoluted bellows hold far more air than a standard sleeve spring, which is what gets you to 7,500 lbs of load leveling capacity instead of 5,000. If your Duramax works hard for a living and the standard ALPHA HD is not enough spring, this is the kit.

One piece aluminum end caps and 20 support wires mean no cracked plastic caps in a Canadian winter and no slow leaks a year down the road.

Part Number: HP10725-X

• Eliminates sag, sway and bottoming out
• Distributes weight evenly across the tires
• One piece aluminum end caps, not plastic
• 20 support wires for strength and durability
• Corrosion resistant roll plates
• Precision laser cut, powder coated steel brackets
• Grade 5 plated hardware and a complete bolt on install kit

• Fits with (OEM) 5th wheel prep packages
• Will not fit with (aftermarket) Curt 5th wheel packages
• Will not fit Chassis Cab, Trail Boss or AT4X models
• Will not fit where the distance from the bottom of the jounce cup to the top of the strike plate is greater than 7.5"
• ALPHA XD kits are not compatible with Pacbrake 2", 4" or 6" air spring spacers
• Never exceed the manufacturer's recommended Gross Vehicle Weight Rating

• Installation Guide (L6661)
