2020-2025 Duramax 3" Standard SM Series Leveling Kit Front (110-P1307)
Purchase to earn 1528 Dirty Dollars Learn More
Description
Description
Fits
Year | Make | Model | Engine |
2020-2025 | GMC/Chevrolet | Silverado/Sierra 2500HD/3500HD 2WD/4WD | L5P 6.6L Duramax |
Level up your Duramax with this premium 3" Standard SM Series Leveling Kit Front!
This Duramax leveling kit keeps your truck’s front lifted by 3” all while maintaining ride quality. Pick your favourite tires and shocks to finish the job.

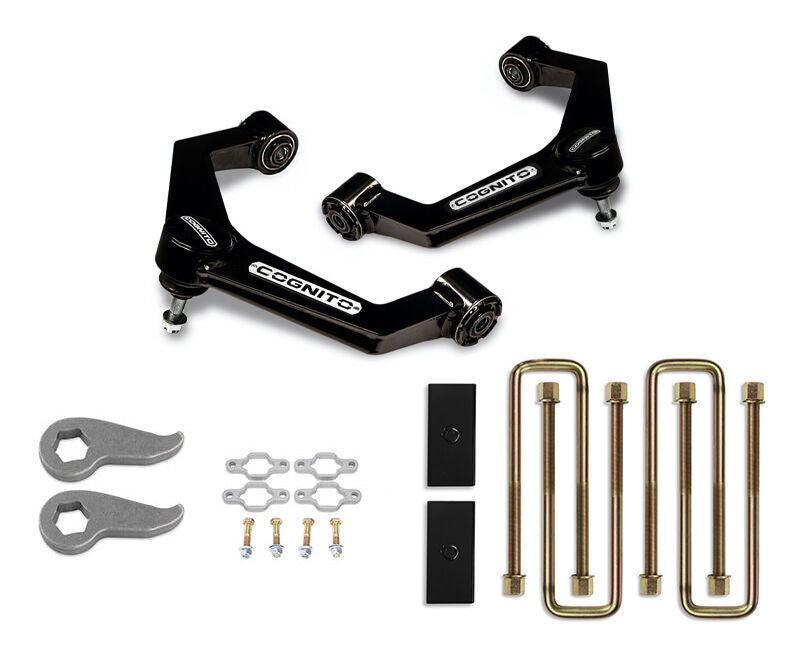

This kit uses your stock shocks with added spacers to keep droop just right. It includes Upper Control Arms to provide corrected angle ball joints and Torsion Bar Keys to fine-tune ride height. Plus, a 1” block and u-bolts help lift the rear if you’ve got heavy gear in the bed.
Part Number: 110-P1307
Features
Features
- Yields 3" of front lift
- SM Series Upper Control Arm Kit
- Torsion Bar Adjuster Key Kit
- Front shock spacer kit
- Block & U-Bolt Kit yields 1" of rear lift
- Improves vehicle appearance and reduces nose-down rake
- Improved ball joint angle
- Maintains adequate droop travel to retain ride quality
Installation
Installation
- 4-hour DIY install time
Notes
Notes
- Not included in this package, but very highly recommended, is the pitman and idler arm support kit which will prevent premature wear of pitman and idler arms that arises from increased tie rod angles that is an inherent result when adding a leveling kit to an IFS truck with pitman and idler arm type steering system.
Tire Fitment
Tire Fitment
- Fits up to a 35 x 12.5" tire on a 9" wide wheel with 5" backspacing
Additional Fitment
Additional Fitment
Year | Make | Model | Sub-Model |
2020-2025 | GMC | Sierra 3500 HD | SLT |
2020-2025 | GMC | Sierra 3500 HD | SLE |
2023-2025 | GMC | Sierra 3500 HD | Pro |
2025 | GMC | Sierra 3500 HD | Denali Ultimate |
2020-2025 | GMC | Sierra 3500 HD | Denali |
2020-2025 | GMC | Sierra 3500 HD | AT4 |
2020-2025 | GMC | Sierra 2500 HD | SLT |
2020-2025 | GMC | Sierra 2500 HD | SLE |
2023-2025 | GMC | Sierra 2500 HD | Pro |
2025 | GMC | Sierra 2500 HD | Denali Ultimate |
2020-2025 | GMC | Sierra 2500 HD | Denali |
2020-2025 | GMC | Sierra 2500 HD | AT4 |
2020-2025 | Chevrolet | Silverado 3500 HD | WT |
2020-2025 | Chevrolet | Silverado 3500 HD | LTZ |
2020-2025 | Chevrolet | Silverado 3500 HD | LT |
2020-2025 | Chevrolet | Silverado 3500 HD | High Country |
2020-2025 | Chevrolet | Silverado 3500 HD | Base |
2020-2025 | Chevrolet | Silverado 2500 HD | WT |
2020-2025 | Chevrolet | Silverado 2500 HD | LTZ |
2020-2025 | Chevrolet | Silverado 2500 HD | LT |
2020-2025 | Chevrolet | Silverado 2500 HD | High Country |
2020-2025 | Chevrolet | Silverado 2500 HD | Custom |
2020-2022 | GMC | Sierra 3500 HD | Base |
2020-2022 | GMC | Sierra 2500 HD | Base |
2020 | GMC | Sierra 3500 HD | |
2020 | GMC | Sierra 2500 HD |
Warranty
Warranty
Parts Only
- Limited Lifetime Warranty - Cognito Branded Products
