2020-2024 Gladiator EnduroSport 3" Lift Suspension System (JT30-1X5310-L3)

Fits

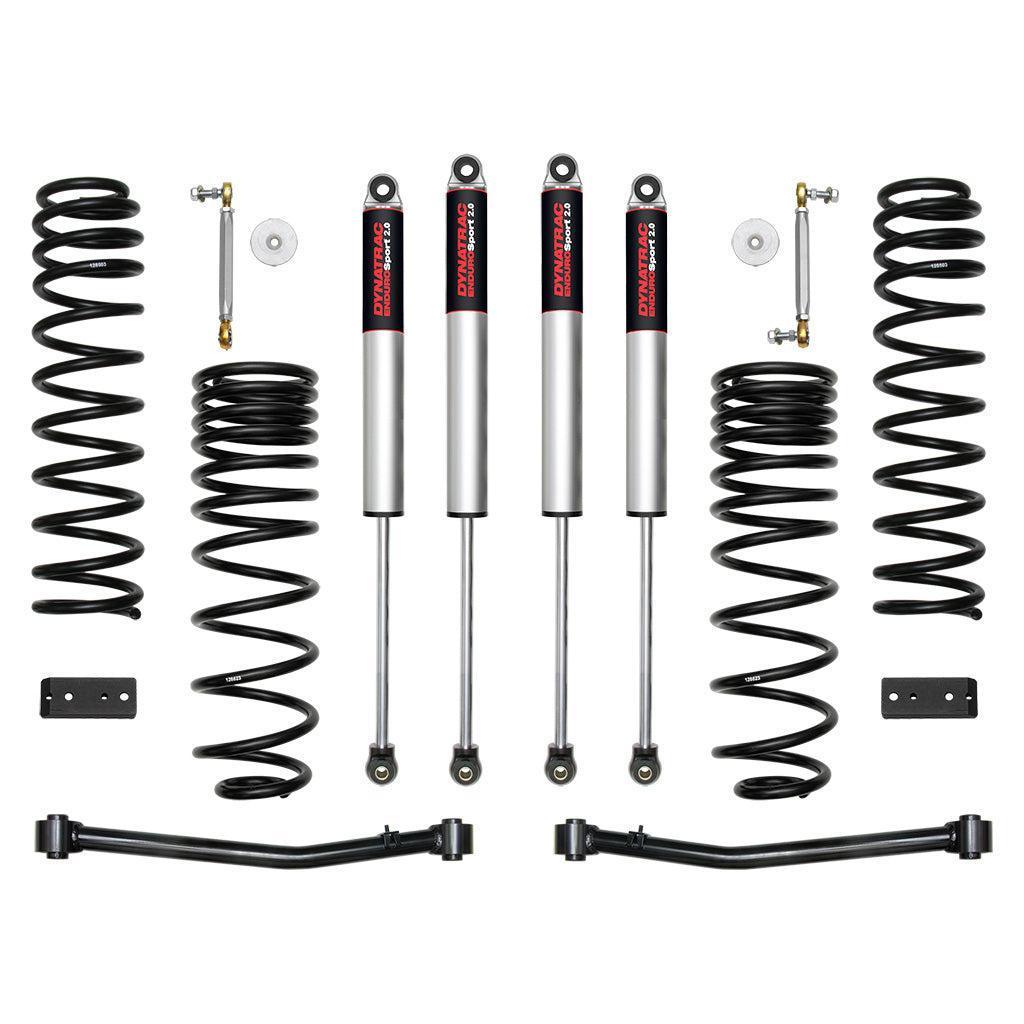

The EnduroSport 3" Lift Suspension for 2020-2024 Jeep Gladiator boosts your ride with 3" lift front dual rate coil springs, 1.5" lift triple rate rear coil springs, 2.0 EnduroSport shocks, bump stop spacers, adjustable front sway bar links and rear brackets, and all necessary hardware. It adds serious wheel travel—3" front, 2" rear—so you can run up to 35" tires without issue. Want 37" tires? Grab the optional bump stop spacers.

Part Number: JT30-1X5310-L3

• 3" front lift height and 1.5" of rear lift over stock
• Fits 35" tires (37" with optional extended bump stop spacer kit)
• 3" front, 2" rear increase in wheel travel
• Improves on and off-road ride quality over stock
• Dual-rate front coil springs and triple-rate rear coils with lifetime guarantee against sagging/breakage
• 2.0 EnduroSport shocks with Jeep JT-specific valving
• Adjustable front sway bar links and rear sway bar brackets eliminate sway bar bind
• Tubular steel link arms with dual durometer bushings for noise-free performance, maximum articulation, and minimal bind
• 100% bolt-on
• Easy install
• Tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Bushings Included: No
• Coil Spring End 1 Type: Closed
• Coil Spring End 2 Type: Closed
• Coils Quantity Front: 2
• Coils Quantity Rear: 2
• Grade Type: Performance
• Maximum Lift Front: 3
• Maximum Lift Rear: 1.5
• Mounting Hardware Included: Yes
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

• Dynatrac's advertised lift heights are based around a typical Jeep JT build, which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock, weighted vehicle.
• Springs are NOT rated for use with models equipped with EcoDiesel engines.
• NOT compatible with Jeep Gladiator Mojave

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5" w/ 4.5” Backspace / -6mm Offset
• Recommended Aftermarket Tires: 35 x 12.50 (37 x 12.50 with optional extended bump stop spacer kit PN: DT922071)
