2020-2024 Gladiator EnduroSport 3" Suspension Lift System (JT30-1X5310-L7)
Purchase to earn 4364 Dirty Dollars Learn More
Description
Description
Fits
Year | Make | Model |
2020-2024 | Jeep | Gladiator, JT |

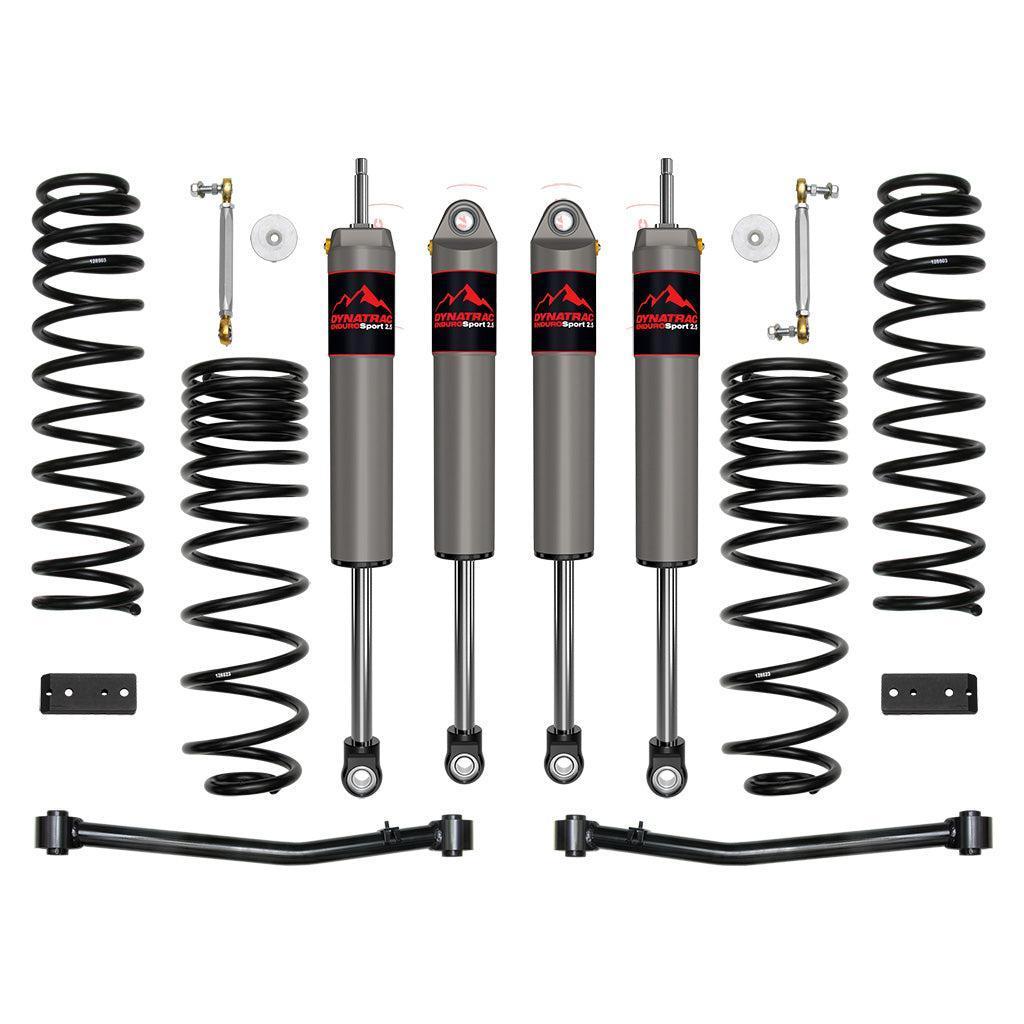

The Dynatrac 3" Suspension Lift System 7 for 2020+ Jeep Gladiators boosts your ride with 3" lift front dual-rate coil springs, 1.5" lift triple-rate rear coil springs, 2.5 EnduroSport shocks, bump stop spacers, adjustable front sway bar links and rear brackets, and all necessary hardware. It’s got tough steel links and noise-free bushings for smooth, flexible off-road action. You’ll get more wheel travel and fit 35" tires easily. Want 37" tires? Grab the extra bump stop kit. Simple upgrade, serious performance.
Part Number: JT30-1X5310-L7
Features
Features
- 3" front lift height and 1.5" of rear lift over stock
- Fits 35" tires (37" with optional extended bump stop spacer kit)
- 3" front, 2" rear increase in wheel travel
- Improves on and off-road ride quality over stock
- Dual-rate front coil springs and triple-rate rear coils with lifetime guarantee against sagging/breakage
- 2.5 EnduroSport shocks with Jeep JL-specific valving offer greater shock damping and performance
- Adjustable front sway bar links and rear sway bar brackets eliminate sway bar bind
- Tubular steel link arms with dual durometer bushings for noise-free performance, maximum articulation, and minimal bind
- 100% bolt-on
- Easy install
- Tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Bushings Included: No
- Coil Spring End 1 Type: Closed
- Coil Spring End 2 Type: Closed
- Coils Quantity Front: 2
- Coils Quantity Rear: 2
- Grade Type: Performance
- Maximum Lift Front: 3
- Maximum Lift Rear: 1.5
- Mounting Hardware Included: Yes
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
Notes
Notes
- Dynatrac's advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
- Springs are NOT rated for use with models equipped with EcoDiesel engines.
- Jeep Gladiator Mojave also requires heim spacer kit, part # DT9611070
Tire Fitment
Tire Fitment
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 4.5” Backspace / -6mm Offset
- Recommended Aftermarket Tires: 35 x 12.50 (37 x 12.50 with optional extended bump stop spacer kit PN: DT922071)
