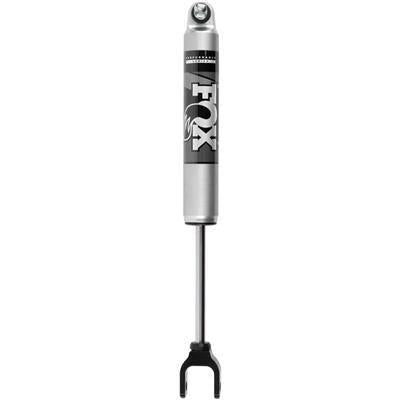

2020-2024 Duramax 2.0 Performance Series Front Shock 1.5-2.5" Lift (985-24-240)
Purchase to earn 321 Dirty Dollars Learn More
Description
Description
Fits
| Year | Make | Engine | Model | Lift | Wheel | Position |
| 2020-2024 | GM | 6.6L Duramax | 2500/3500 | 1.5"-2.5" | ALL | Front |
By utilizing Fox's race-proven damping control, these 2.0 Performance Series Shocks provide a comfortable on-road ride and predictable off-road handling even in the toughest conditions.
The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find their race-proven performance valving technology as well as their Internal Floating Piston (IFP) mono-tube design which separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race-developed high-flow damping piston matched with application-specific valving provides the Performance Series 2.0 IFP shock a predictable ride quality capable of handling the roughest road conditions.
Part Number: 985-24-240
Features
Features
| Body | 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
|---|---|
| Body Plating | Clear-anodized for a durable finish |
| Reservoir | Internal IFP mono-tube reservoir design |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 5/8" hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application-specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Oil | JM92 Advanced Suspension Fluid for improved performance at variable temperatures |
| Bushings | Quiet nitrile rubber allows for increased suspension articulation |
| Extended | 18.910" |
| Compressed | 13.280" |
| Travel | 5.630 |
| Top Mount | Eyelet |
| Bottom Mount |
Eyelet |
Questions and Answers
Questions and Answers
Previously asked questions
We've compiled a list of questions and answers below.
Don't see your question? Ask us anything about this product.
Ask a Question-
With a three inch leveling kit would this one be the right length in shock
These will not be long enough unfortunately.
