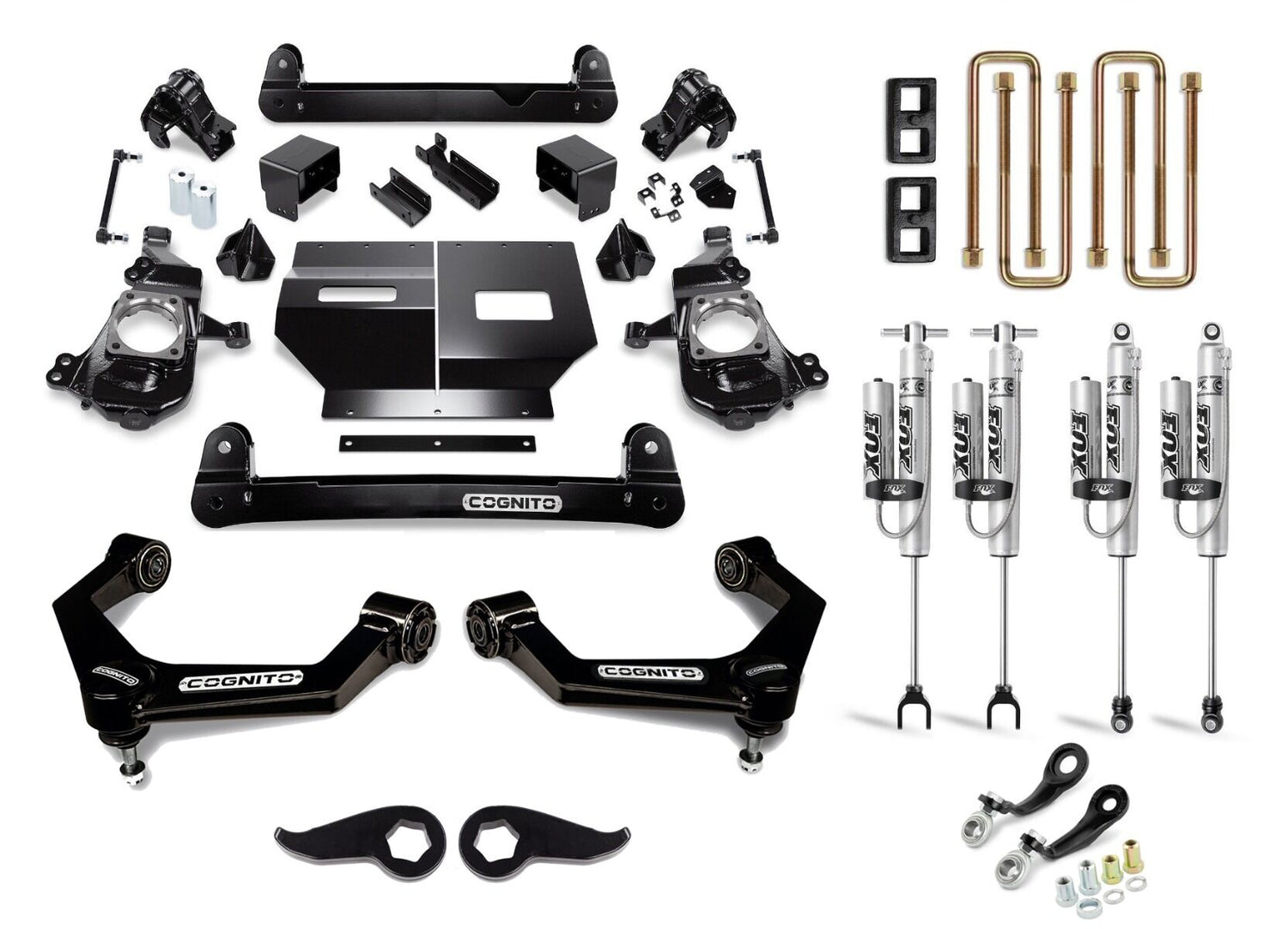

2020-2025 Duramax 5" Performance Lift Kit W/ Fox 2.0 Shocks (110-P1270)

Fits

Elevate your Duramax with this all-inclusive 5" Performance Lift Kit W/ Fox 2.0 Shocks!

The Non-Torsion Bar Drop Front Lift kit keeps torsion bars tucked up in the frame for maximum ground clearance while maintaining superior ride quality and proper CV axle angles.

The Ball Joint SM Series Upper Control Arms are made from boxed sheet metal, CNC robot-welded, and powder-coated semi-gloss black. They add style, function and performance to your ride by correcting the Ball Joint Angle in lifted and leveled applications. Pre-installed maintenance-free ball joints and pivot bushings are included.

The Pitman and Idler Arm Support Kit, designed to replace problem components and add support to the pitman and idler arms in Chevy and GMC trucks and SUVs, eliminates the forward and rearward movement of the center-link.

Fox 2.0 Performance Series Remote Reservoir shocks deliver next-level technology in the 2" diameter shock lineup. The extruded aluminum body is rust-resistant, while the aluminum body increases cooling capacity.

Part Number: 220-P1270

• Yields 5" of front lift, 3" Rear Lift
• SM Series Ball Joint Upper Control Arms
• Patented Pitman and Idler Arm Support Kit
• Fox 2.0 Performance Series Remote Reservoir Shocks
• Maintains Adequate Droop Travel for Superior Ride Quality


• 13-hour DIY install time
• Click Here 7024
• Click Here 7057
• Click Here 7244
• Click Here 7267
• Click Here 7271
• Click Here 7550

37x12.50 tire on stock 20” wheel
Will require a wheel spacer at least 1/4” thick. A 1.5” wheel spacer looks really good. Use tie back kit plus medium trimming.

35 on 10” wide wheel +18mm offset
Use tie-back kit plus light trimming.

35 on 10” wide wheel, 0mm offset
Use tie-back kit plus medium trimming.

37x12.50, 9” wide wheel +18mm offset
Use tie-back kit plus light trimming.

37x12.50, 9” wide wheel, 0mm offset
Use tie-back kit plus medium trimming.

37x12.50 on 10” wide wheel, +18mm offset
Use tie-back kit plus medium trimming.

37x12.50 on 10” wide wheel, 0mm offset
Use tie-back kit plus heavy trimming.

Parts Only

• Limited Lifetime Warranty - Cognito branded products
