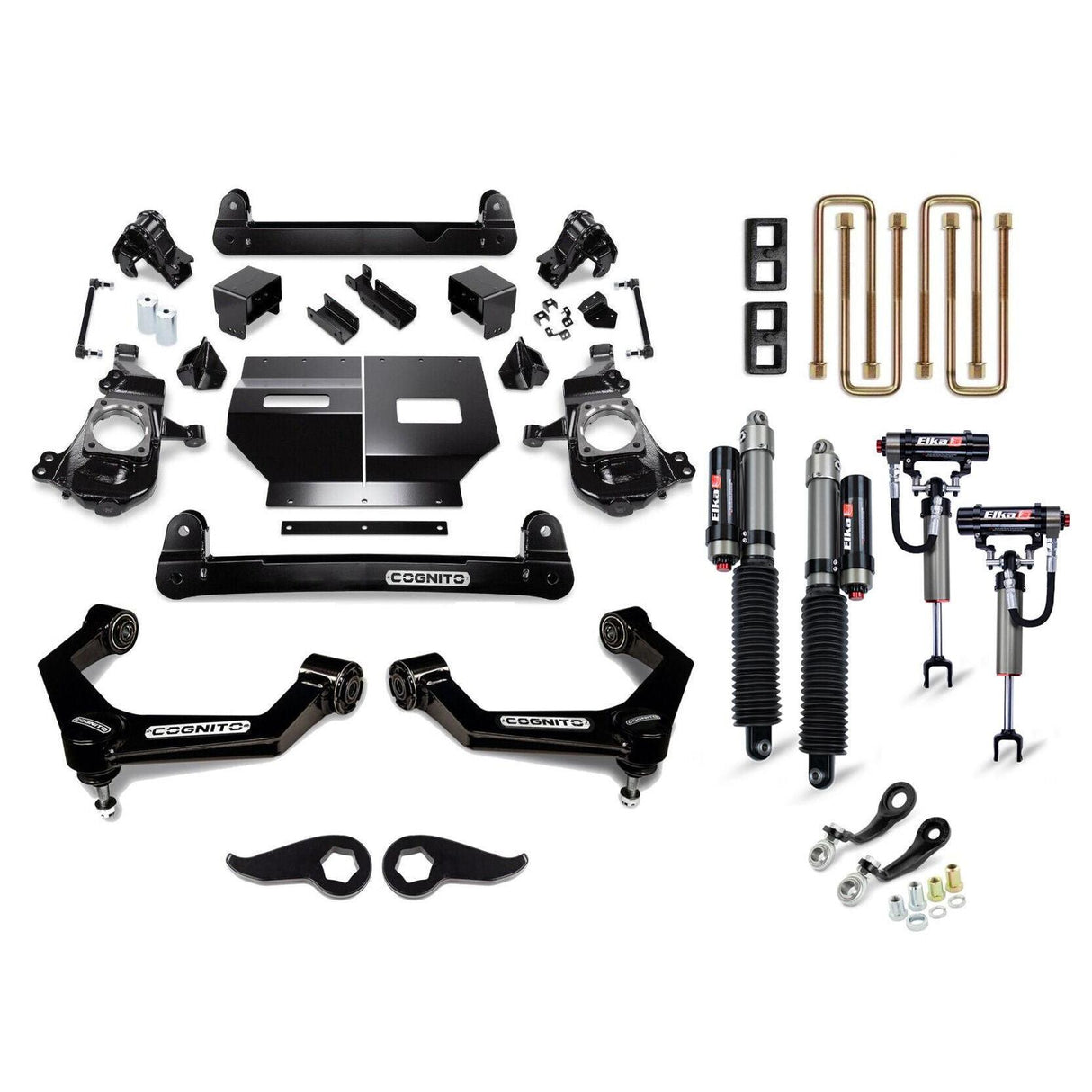

2020-2025 Duramax 5" Elite Lift Kit W/ Elka 2.5 Reservoir Shocks (210-P1292)

Elevate your Duramax with this all-inclusive 5" Elite Lift Kit w/ Elka 2.5 Reservoir Shocks!

The Ball Joint SM Series Upper Control Arms provide style, function and performance by correcting ball joint angles in lifted and leveled trucks. They are powder-coated, semi-gloss black, welded, boxed sheet metal arms. Pre-installed ball joints and pivot bushings.

Pitman and Idler Arm Support Kit replaces weak factory components in Chevy/GMC trucks and SUVs. Solves a decades-old steering problem that affects both stock and aftermarket systems.

The 3" Block and U-Bolt Kit includes 3" tall powder-coated semi-gloss black cast steel blocks and heavy-duty zinc-plated U-bolts.

The Elka 2.5 Shocks feature Dual Speed Compression adjustment. Enhanced comfort on various terrains, stable and predictable handling, less front-end diving during turns or braking, minimal rear-end bouncing or lifting, better towing and load handling.

Torsion Bar Keys level the front with the rear of the truck. They are forged construction and are bolt-in for a simple install.

Part Number: 210-P1292

• Yields 5" front and 3" rear lift
• SM Series upper control arm kit
• Patented pitman and idler arm support kit
• Elka 2.5" reservoir shocks
• Added droop travel for exceptional ride quality
• Complete kit
• Made in the USA

• Click Here 7024
• Click Here 7057
• Click Here 7244
• Click Here 7267
• Click Here 7271
• Click Here 7559

• NOT compatible with AT4X and ZR2 models.

Parts Only

• Limited Lifetime Warranty - Cognito Branded Products

• 37x12.50 tire on stock 20” wheel
  Will require a wheel spacer at least 1/4” thick. A 1.5” wheel spacer looks really good. Use tie back kit plus medium trimming.
• 35 on 10” wide wheel +18mm offset
  Use tie back kit plus light trimming.
• 35 on 10” wide wheel, 0mm offset
  Use tie back kit plus medium trimming.
• 37x12.50, 9” wide wheel +18mm offset
  Use tie back kit plus light trimming.
• 37x12.50, 9” wide wheel, 0mm offset
  Use tie back kit plus medium trimming.
• 37x12.50 on 10” wide wheel, +18mm offset
  Use tie back kit plus medium trimming.
• 37x12.50 on 10” wide wheel, 0mm offset
  Use tie back kit plus heavy trimming.
