2020-2025 Duramax 4" Performance Lift Kit W/ Fox 2.0 Shocks (110-P0896)

Elevate your Duramax with this all-inclusive 4" Performance Lift Kit W/ Fox 2.0 Shocks!

The Non-Torsion Bar Drop Front Lift kit is designed to offer superior ride quality and proper CV axle angles.

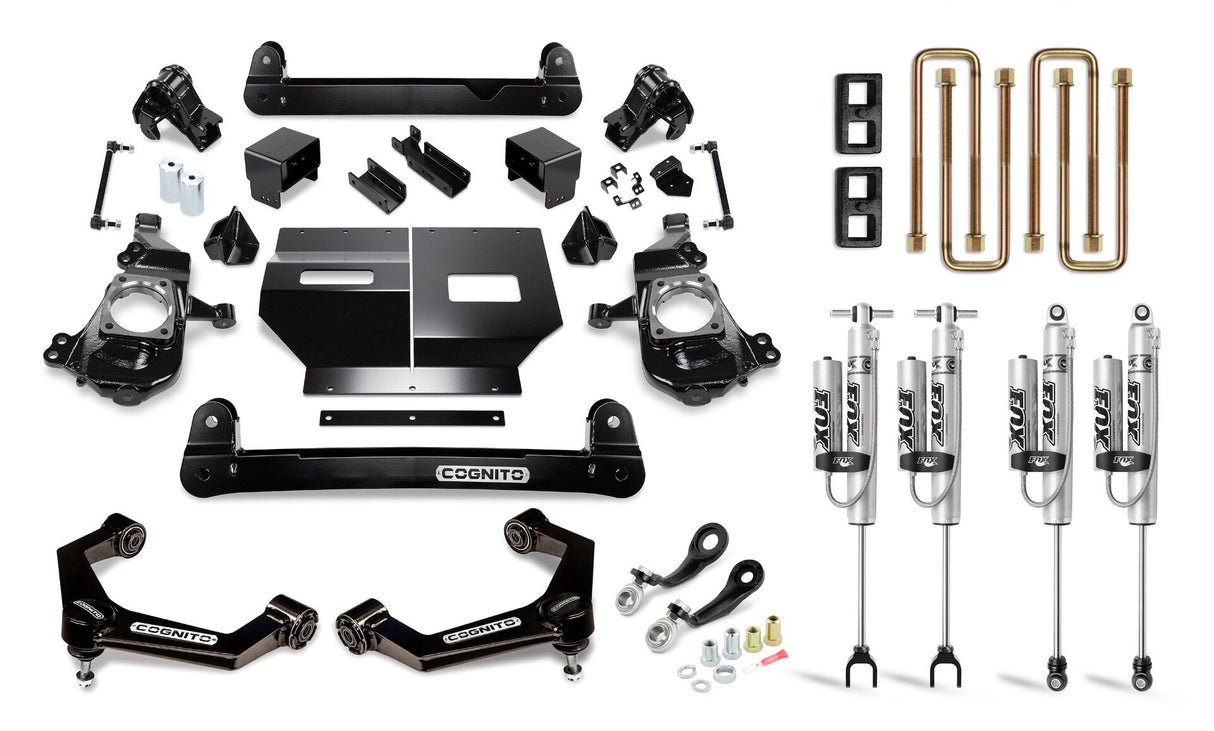

The Ball Joint SM Series Upper Control Arms are made from boxed sheet metal, CNC robot-welded, and powder-coated semi-gloss black. They add style, function and performance to your ride by correcting the Ball Joint Angle in lifted and leveled applications.

The Pitman and Idler Arm Support Kit, designed to replace problem components and add support to the pitman and idler arms in Chevy and GMC trucks and SUVs, eliminates the forward and rearward movement of the center-link.

Fox 2.0 Performance Series Remote Reservoir shocks deliver next-level technology. The extruded aluminum body is rust-resistant, while the aluminum body increases cooling capacity.

The 2" Block and U-Bolt Kit includes 2" tall powder-coated semi-gloss black cast steel blocks and heavy-duty zinc-plated U-bolts

Part Number: 110-P0896

• Yields 4" of front lift
• Block and U-Bolt Kit yields 2" of rear lift
• Maintains Adequate Droop Travel for Superior Ride Quality

• Made In USA
• SM Series Ball Joint Upper Control Arms
• Patented Pitman and Idler Arm Support Kit
• Fox 2.0 Performance Series Remote Reservoir Shocks

• 13-hour DIY install time
• Click Here 7024
• Click Here 7057
• Click Here 7244
• Click Here 7259
• Click Here 7267
• Click Here 7271

• 37x12.50 tire on stock 20” wheel
  Will require a wheel spacer at least 1/4” thick. A 1.5” wheel spacer looks really good. Use tie tie-back kit plus medium trimming.

  35 on 10” wide wheel +18mm offset
  Use tie-back kit plus light trimming.

  35 on 10” wide wheel, 0mm offset
  Use tie-back kit plus medium trimming.

  37x12.50, 9” wide wheel +18mm offset
  Use tie-back kit plus light trimming.

  37x12.50, 9” wide wheel, 0mm offset
  Use tie-back kit plus medium trimming.

  37x12.50 on 10” wide wheel, +18mm offset
  Use tie-back kit plus medium trimming.

  37x12.50 on 10” wide wheel, 0mm offset
  Use tie-back kit plus heavy trimming.

Parts Only

• Limited Lifetime Warranty - Cognito Branded Products
