2020-2025 Duramax 4" Lift Kit W/ Fox 2.0 Coilover (110-P0890)

Fits

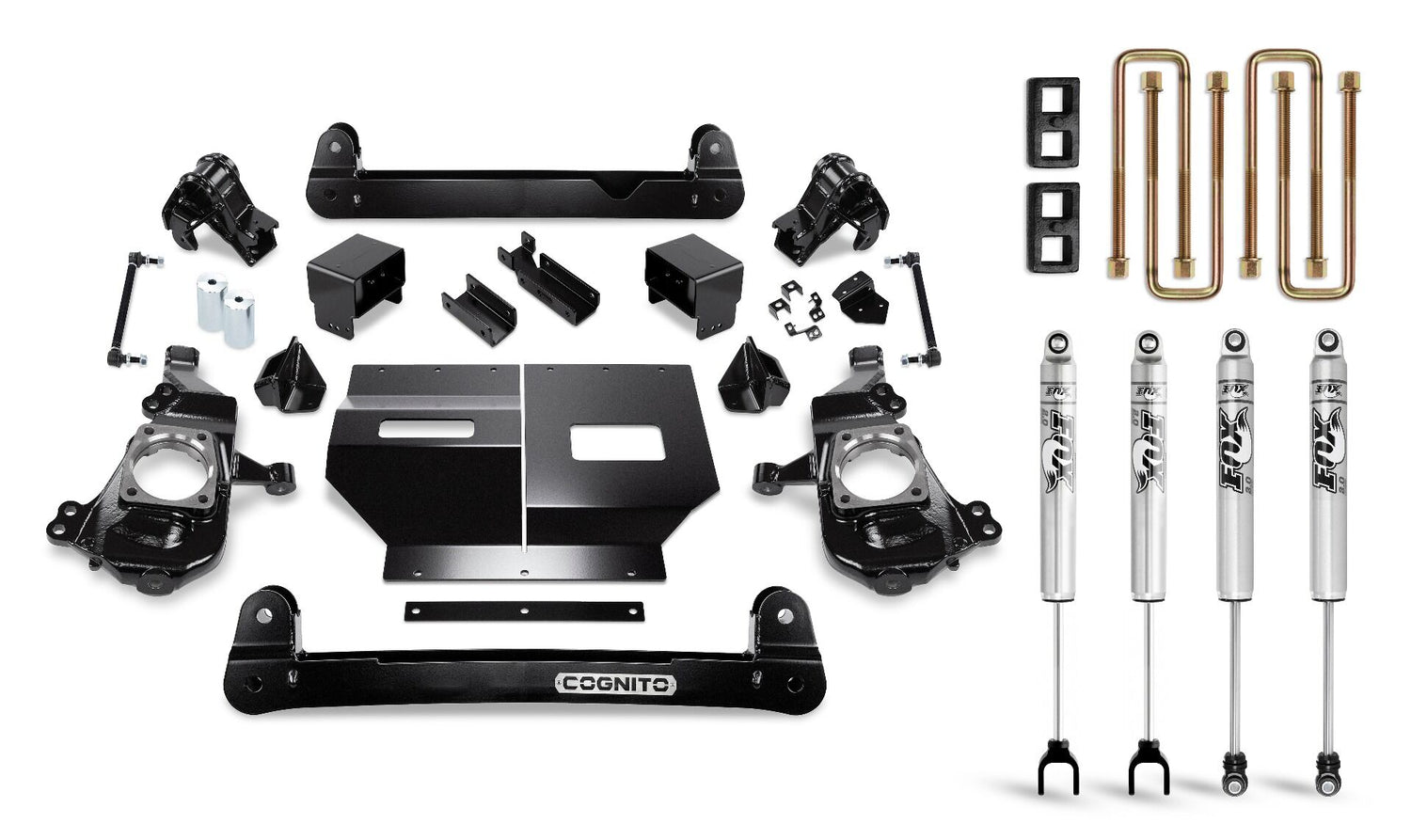

The  4" Standard Lift Kit with Fox 2.0 IFP Shocks delivers serious lift with ride quality to match. With 4" up front, 2"  in the rear, and Fox Performance Series 2.0 IFP shocks all around, this kit improves stance, suspension geometry, and capability, while keeping your ride smooth on and off the road.

Part Number: 110-P0890

• 4" of front lift with Non-Torsion Bar Drop setup
• 2" of rear lift with block and U-bolt kit
• Fox 2.0 Performance Series IFP monotube shocks, front and rear
• Front shock size: 2.0 IFP aluminum body
• Rear shock size: 2.0 IFP aluminum body
• Improved CV joint angles for better durability
• Maintains proper droop travel for superior ride quality


• Click Here 7024
• Click Here 7244
• Click Here 7258

• 37x12.50 tire on stock 20” wheel
  Will require a wheel spacer at least 1/4” thick. A 1.5” wheel spacer looks really good. Use tie back kit plus medium trimming.
• 35 on 10” wide wheel +18mm offset
  Use tie back kit plus light trimming.
• 35 on 10” wide wheel, 0mm offset
  Use tie back kit plus medium trimming.
• 37x12.50, 9” wide wheel +18mm offset
  Use tie back kit plus light trimming.
• 37x12.50, 9” wide wheel, 0mm offset
  Use tie back kit plus medium trimming.
• 37x12.50 on 10” wide wheel, +18mm offset
  Use tie back kit plus medium trimming.
• 37x12.50 on 10” wide wheel, 0mm offset
  Use tie back kit plus heavy trimming.

Parts Only

• Limited Lifetime Warranty - Cognito Branded Products
