2020-2025 Duramax 4" Elite Lift Kit W/ King 2.5 Reservoir Shocks (510-P1179)

Fits

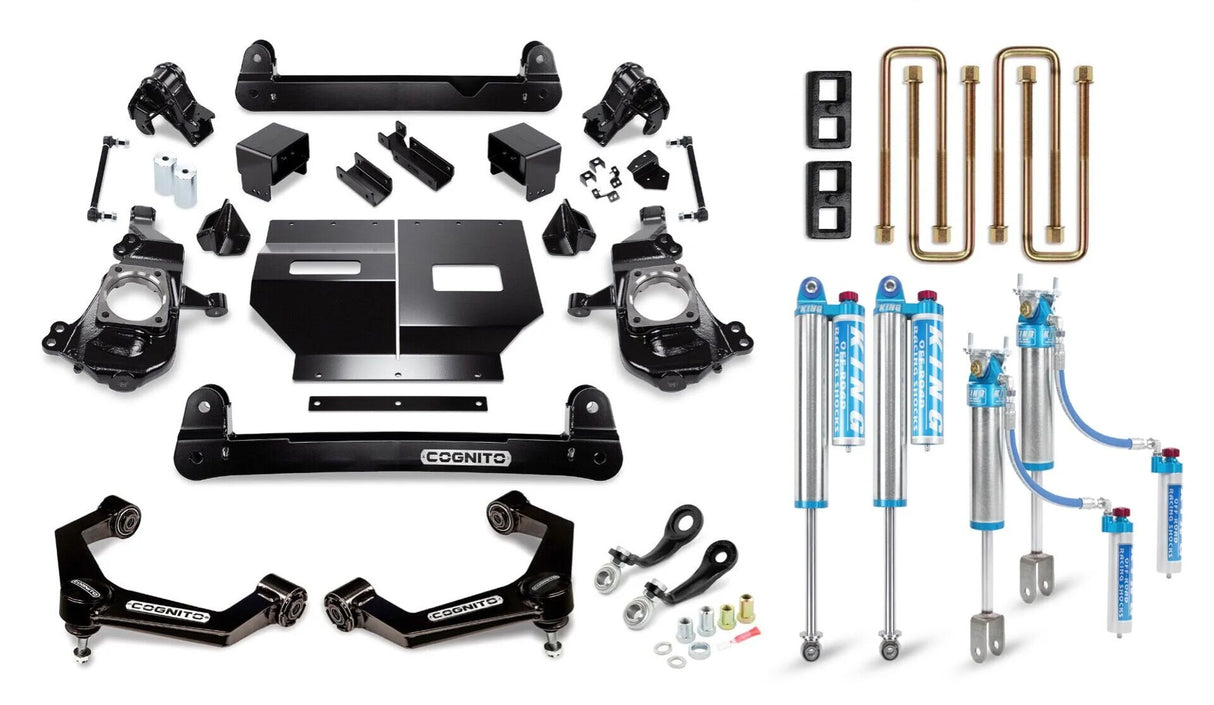

Elevate your Duramax with this all-inclusive 4" Elite Lift Kit W/ King 2.5 Reservoir Shocks !

The Ball Joint SM Series Upper Control Arms provide style, function and performance by correcting ball joint angles in lifted and leveled trucks. They are powder-coated, semi-gloss black, welded, boxed sheet metal arms.  Pre-installed maintenance-free ball joints and pivot bushings are included.

Pitman and Idler Arm Support Kit replaces weak factory components in Chevy/GMC trucks and SUVs. Solves a decades-old steering problem that affects both stock and aftermarket systems.

King 2.5 Reservoir Shocks delivers unmatched performance for your truck with this 4" Elite Lift. Features bolt-on installation with no cutting or welding, adjustable ride height, and 2.5" reservoir shocks that increase wheel travel while preventing heat-related performance loss. Serviceable design and easily adjustable with basic tools.

The 2" Block and U Bolt kit includes 2" tall powder-coated semi-gloss black cast steel blocks and heavy-duty zinc-plated U-Bolts.

Part Number: 510-P1179

• Yields 4" of front lift & 2" of rear lift
• Block and U-Bolt Kit
• SM Series Ball Joint Upper Control Arms
• Patented Pitman and Idler Arm Support Kit
• King 2.5 Reservoir Shocks with compression adjusters
• Maintains Adequate Droop Travel for Superior Ride Quality
• Bushings Included: Yes
• Grade Type: Elite
• Maximum Lift: 4
• Mounting Hardware Included: Yes
• Shocks Included: Yes

• 14-hour DIY install time
• Click Here 7024
• Click Here 7244
• Click Here 7267
• Click Here 7271
• Click Here 7406

• 37 x 12.50 tire on stock 20” wheel
  Will require a wheel spacer at least 1/4” thick. A 1.5” wheel spacer looks really good. Use tie-back kit plus medium trimming.

  35 on 10” wide wheel +18mm offset
  Use tie-back kit plus light trimming.

  35 on 10” wide wheel, 0mm offset
  Use tie-back kit plus medium trimming.

  37 x 12.50, 9” wide wheel +18mm offset
  Use tie-back kit plus light trimming.

  37 x 12.50, 9” wide wheel, 0mm offset
  Use tie-back kit plus medium trimming.

  37 x 12.50 on 10” wide wheel, +18mm offset
  Use tie-back kit plus medium trimming.

  37 x 12.50 on 10” wide wheel, 0mm offset
  Use tie-back kit plus heavy trimming

Parts Only

• Limited Lifetime Warranty - Cognito Branded Products
