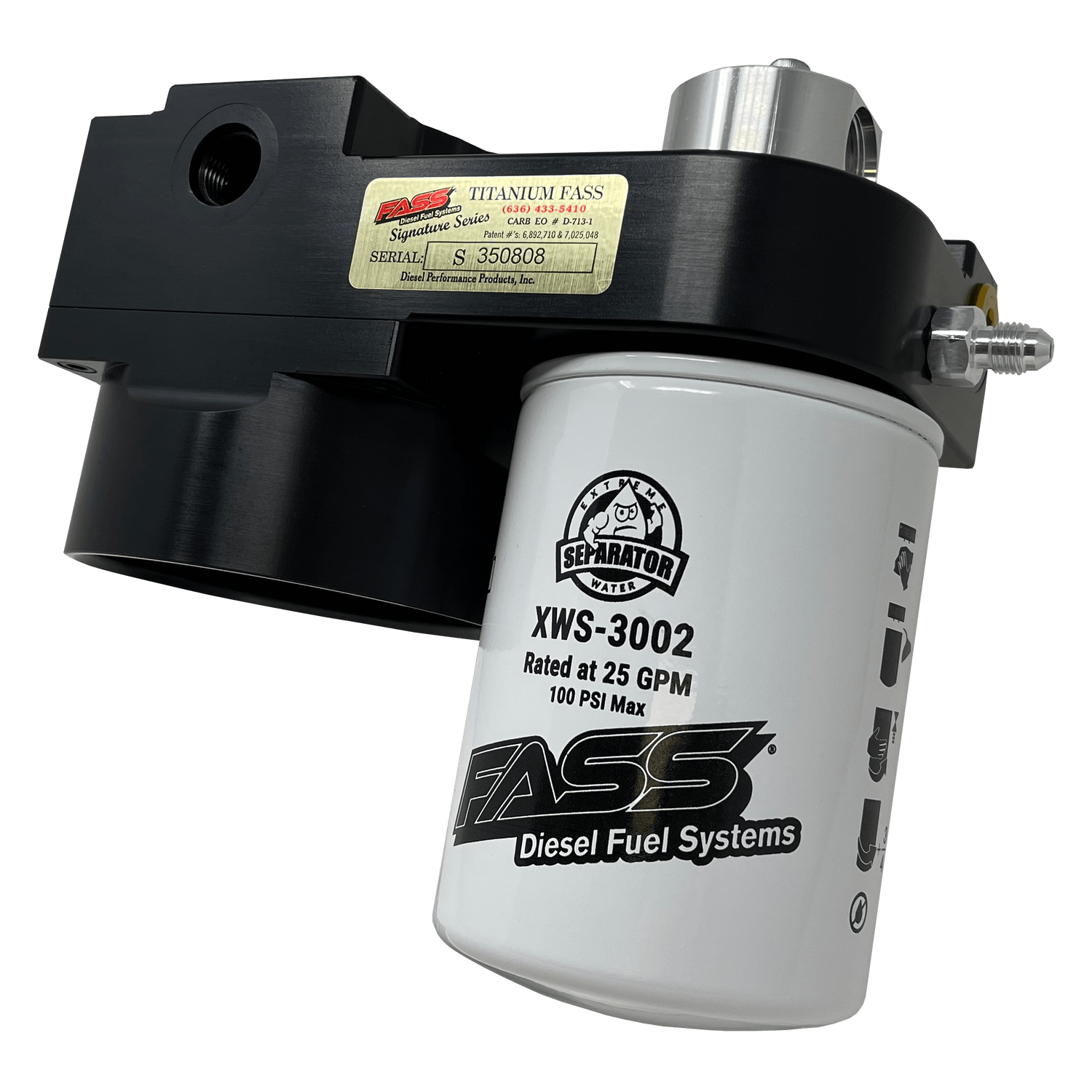

2020-2024 Duramax Drop-In Diesel Fuel System (DIFSL5P2001)

Fass Fuel Systems Part Number: DIFSL5P2001
$684.97 CAD

This product ships for free to most Canadian locations! Learn more

Description

Fits

 Year Make Model Engine
2020-2024 GM/Chevrolet Crew Cab Short Bed L5P 6.6L Duramax

Note:  If you have a Crew Cab Long Box, Click Here

This Drop-In Series Fuel System protects your L5P Duramax from the issues caused by fuel contamination.

Without proper fuel filtration, modern diesel injection systems are prone to excessive wear, which can cost THOUSANDS! By removing over 99% of the water from your diesel fuel, along with entrained air and debris down to 2 Microns, the Drop-In Series System protects the L5P’s injection system from premature failure.

Additionally, by eliminating the contaminants mentioned above, Fass's Drop-In Series System for the L5P Duramax optimizes MPG (results will vary), restores horsepower, and sharpens throttle response.

Fass's industry-leading water removal capabilities (3rd-party proven to exceed 99%) are reinforced by the unique design of Fass's Extreme Water Separator (XWS). If Fass's XWS reaches capacity, it acts as a dam, shutting down your truck and preventing major destruction of fuel system components.

Part Number: DIFSL5P2001

Features

  • The only drop-in L5P filtration system that retains full functionality of the water-in-fuel sensor!
  • The only drop-in L5P filtration system with air separation!
  • Plug & play
  • Zero tuning changes required or clearing of codes
  • Increases lubricity of the fuel by up to 10% by removing entrained air and air vapor.
  • Extends the life of fuel injection system components.
  • Over 99% free and emulsified water separation with Fass's Extreme Water Separator technology.
  • 2 Micron absolute filtration rating.
  • 100% drop-In, no additional modifications needed.
  • Retains the factory in-tank lift pump.
  • Works with the factory plastic cap or billet filter cap.

Notes

  • THIS IS NOT A LIFT PUMP! This is an air separation/filtration system that utilizes your factory lift pump.
  • Installation of this kit on a cab and chassis may require modifications. Drop-In Fuel Systems are a plug-and-play filtration upgrade and are not compatible with Fass Fuel Sump Kit. No additional items are needed for installation. This plug-and-play filtration system utilizes the L5P Duramax OEM in-tank fuel pump for fuel flow.

Installation

Warranty

Parts Only

  • Limited Lifetime Warranty

Additional Info

  • FASS Drop-In Technology was developed to achieve industry-leading filtration with the simplest possible installation—making Fass's Drop-In Series Systems a true bolt-in upgrade. If you’re mechanically inclined, a Drop-In Series Fuel System can be installed in your driveway in less than an hour! But don’t let the easy installation fool you—Fass's Drop-In Series Fuel Systems offer the same world-class filtration as Fass's Titanium Signature Series and Industrial Series lines.
  • Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth-flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and prevents eddy currents from forming within the corner of a 90° sharp angle. FASS Drop-In Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90° fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.

FAQ

  • Will the Drop-In Series System for the L5P Create Excessive Back Pressure on the Lift Pump?
    In short, no! Through extensive engineering and testing, the FASS R&D team was able to decrease pressure drop (differential pressure) by approximately 1 PSI from the OEM filtration system. This was accomplished by maximizing the internal porting size to allow a system that flows more freely in addition to adding superior filtration.

  • Why Does the Drop-In Series for the L5P Utilize an OEM Water Separator?
    The reason we utilize the OEM water separator is due to the design of the OEM water in fuel sensor/fuel heater. Fass has the only Drop-In style system that allows the water in fuel sensor to properly function as they must be on the DIRTY SIDE of the water separator element to detect the water before it makes it to the clean side. If the sensor is placed on the clean side of the element, by the time the sensor detects the water it is too late! With the Drop-In Series FASS, you will get properly functioning water in fuel light and fuel heater!



Questions and Answers

Previously asked questions

We've compiled a list of questions and answers below.

Don't see your question? Ask us anything about this product.

Ask a Question
  • Hello do you have this item in stock

    This item is currently in stock!
