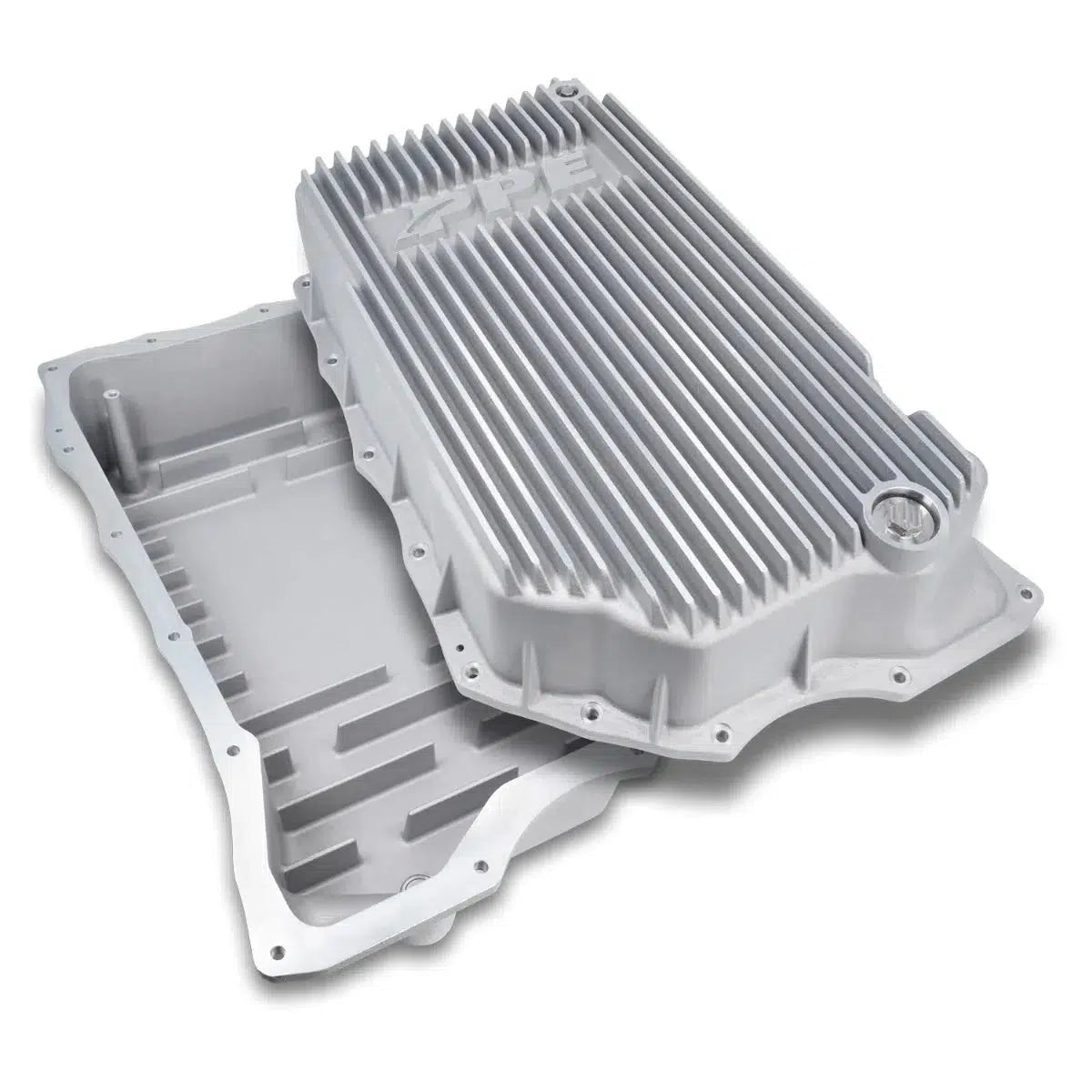

2020-2023 Duramax 10L1000 HD Deep Transmission Pan (128051410)

Description

Fits

Get even better performance & protection with PPE's HD Cast Aluminum Deep Transmission pan; this will give you increased fluid capacity, lower trans fluid temps, & increase thermal stamina. Featuring fins & heat sinks to aid in heat dissipation, also a high-power Neodymium magnet-equipped billet 304 stainless steel drain plug to pull ferrous metals out of the fluid.

Part Number: 128051410

Features

• High-grade A356.0-T6 heat-treated cast aluminum alloy
• Increases fluid capacity by 4 quarts which lowers transmission fluid temperature
• Thick, cast A356.0 T6 aluminum alloy
• .75’’ inch external fins engineered to utilize underbody air flow

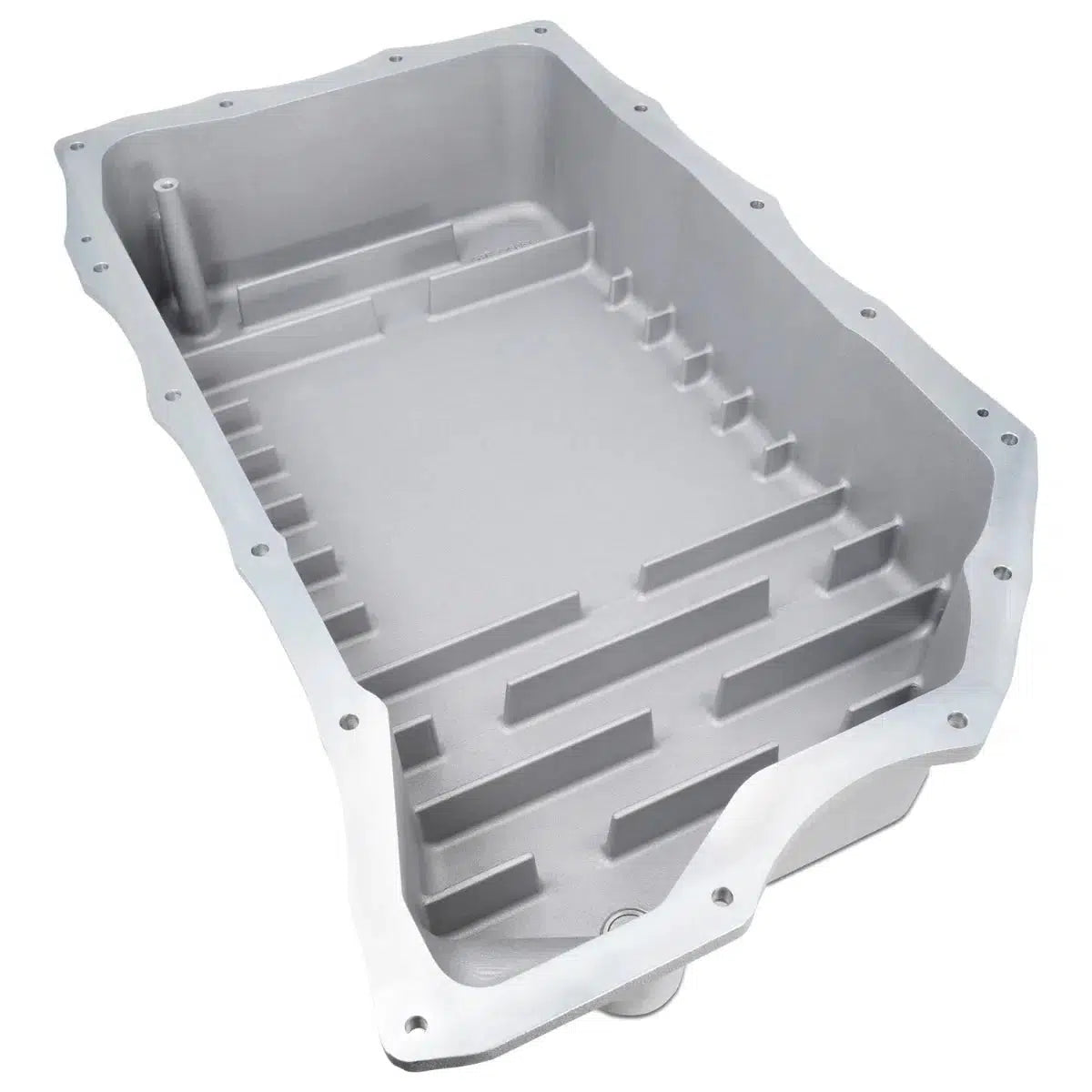

• .75’’ and 1.2’’ internal heat sinks improve heat dissipation and reduce sloshing
• One-inch Neodymium magnet-equipped 304 stainless steel drain plug with Viton O-ring seal
• 9/16’’ ORB Neodymium Magnetic Plug with Viton O-ring seals the fluid level check port
• Tapped and plugged 1/8" NPT port for optional fluid temperature monitoring sensor
• External gussets provide extra support to the machined flange to increase overall robustness
• Compatible with OEM gasket
