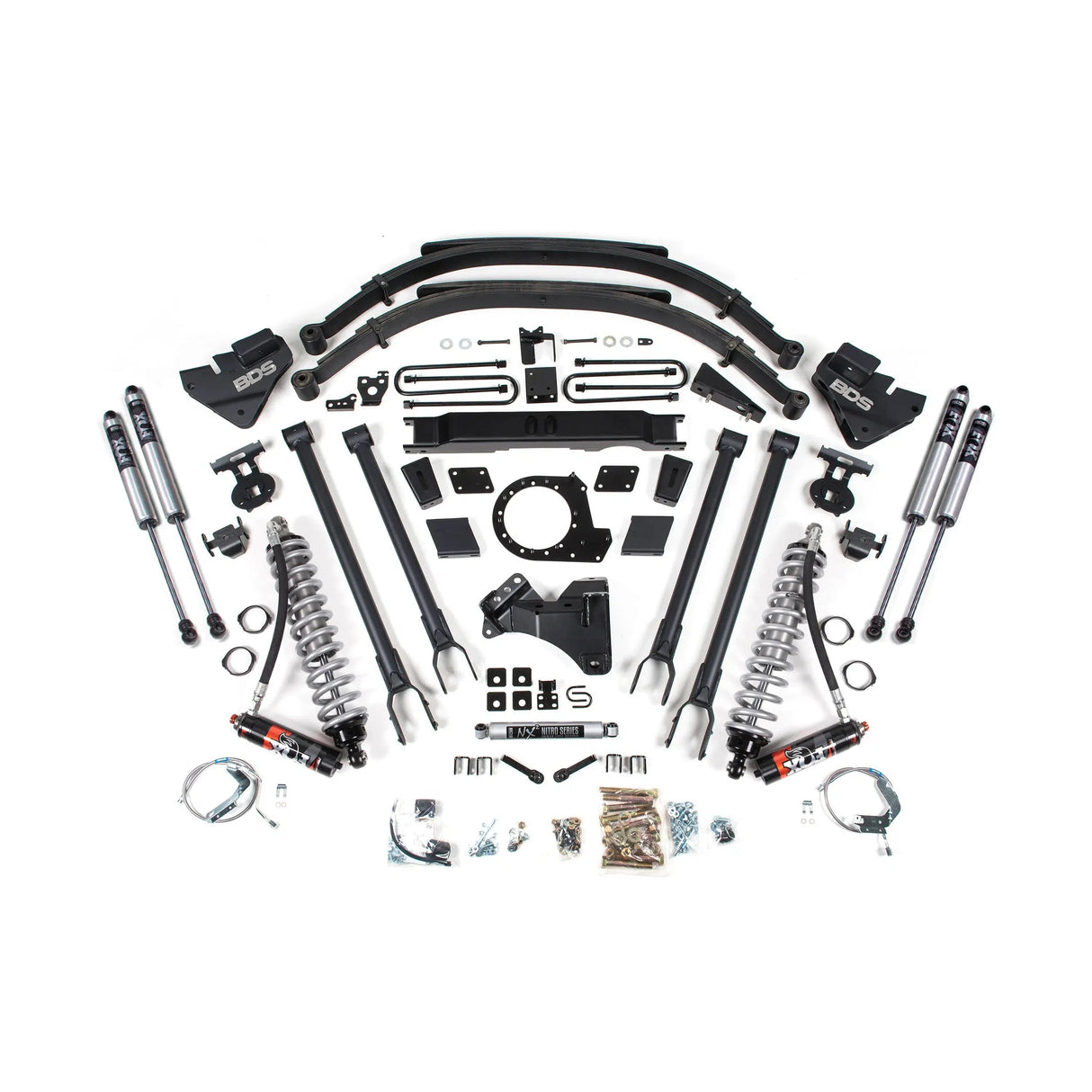

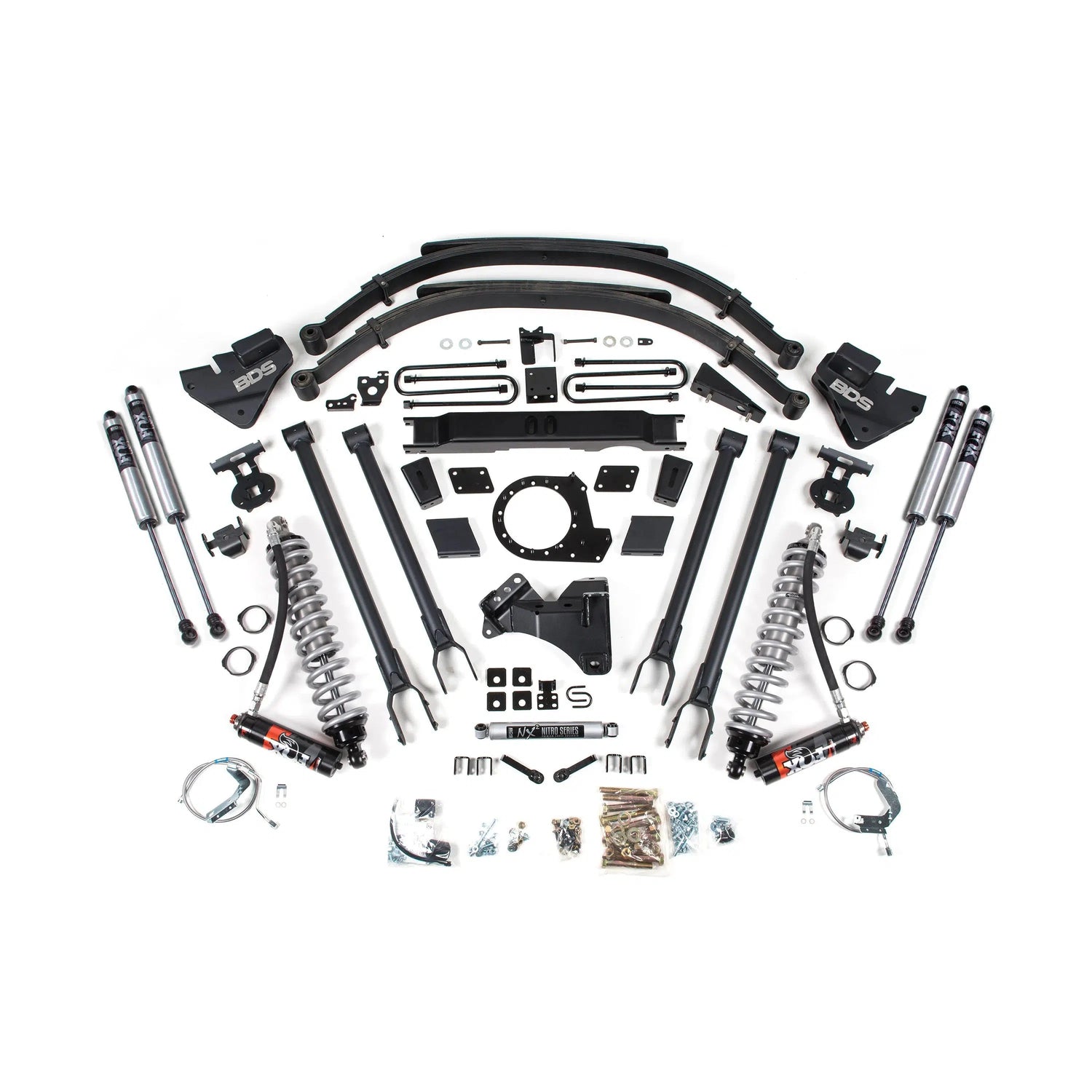

2020-2022 Powerstroke 9" 4-Link Coilover Conversion Lift Kit (BDS1959FPE)

Convert your standard suspension system into one of the best off-road kits you can get, with Fox 2.5 Elite Series Coilovers are easy to install and can hold up to any abuse you subject them to. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 40" tires.

Part Number: BDS1959FPE

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• HD 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Glideride leaf springs to provide full lift height and increased capacity with a built in overload spring
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Tire Fitment:

• 38 x 15.5 with 20 x 10 and 5 in. Backspace
• 40 x 13.5 with 20 x 10 and 5 in. Backspace

• The transfer case indexing ring is designed for diesel models only and will not fit gas models equipped with the 6R100 transmission.
• If equipped with a 2-piece rear driveshaft, a carrier-bearing drop kit may be required (BDS123402)
• 40x13.50 tires WILL require trimming.
• If your truck is equipped with a factory rear sway bar add BDS123009
• The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.
