2020-2022 Powerstroke 4" Radius Arm Coilover Conversion Lift Kit (BDS1563FPE)

BDS
Regular price $6,472.61 CAD

Shocks
Notices

BDS Product images may differ from exact product.

This item may have additional freight costs. Learn More

Build Your Kit

Customize your 2020-2022 Powerstroke 4" Radius Arm Coilover Conversion Lift Kit (BDS1563FPE) below. Add BDS-matched components to complete your build.

Step 1 of 6 · Optional

Traction Bars

Traction Bars

Step 2 of 6 · Optional

Steering Stabilizers

Upgrade to a BDS dual Fox steering stabilizer kit for improved steering control and reduced feedback on lifted trucks.

Steering Stabilizers

Step 3 of 6 · Optional

Track Bar

Add an adjustable front track bar to re-center the front axle after lift and correct track bar geometry.

Track Bar

Step 4 of 6 · Optional

Rear Sway Bar Link Kit

Rear Sway Bar Link Kit

Step 5 of 6 · Optional

Carrier Bearing Shim Kit

Carrier Bearing Shim Kit

Step 6 of 6 · Optional

Rear Driveshaft Spacer

Rear Driveshaft Spacer
Your Build

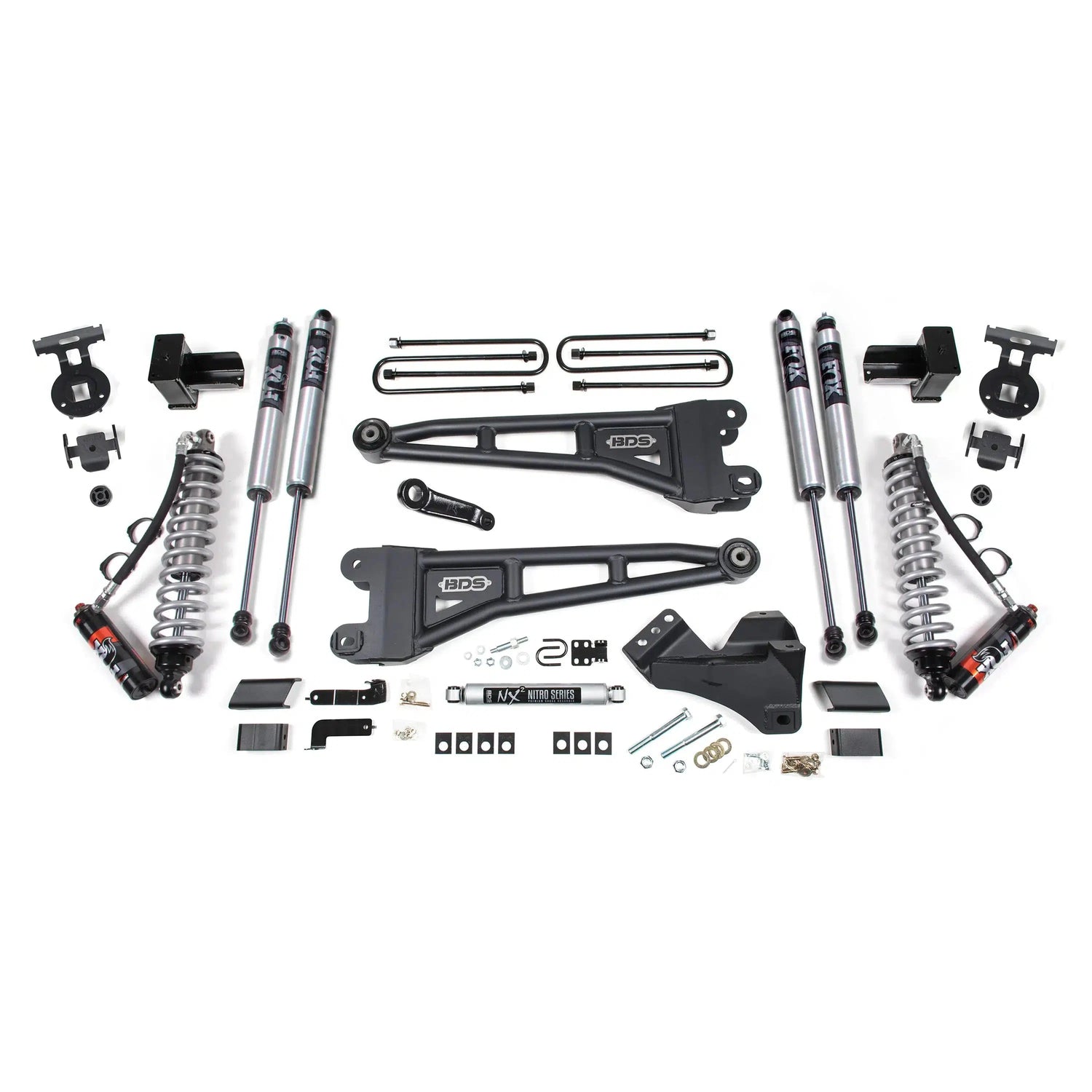

2020-2022 Powerstroke 4" Radius Arm Coilover Conversion Lift Kit (BDS1563FPE)
$6,472.61

Purchase to earn 6472  Dirty Dollars Learn More

Description

Crank your Powerstrokes suspension and handling up to 11 with the BDS 4" Radius Arm lift kit, this kit has everything you need to safely and properly lift your truck effectively improving your stance and off-road capabilities without compromising ride quality. And with Fox 2.5 Elite Series coilovers; your truck can handle any abuse you throw at it, on, or off-road.

Part Number: BDS1563FPE

Features

  • FOX 2.5 Coil-Over mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Tire Fitment:

  • 37 x 12.5 with and in. Backspace

Additional Info

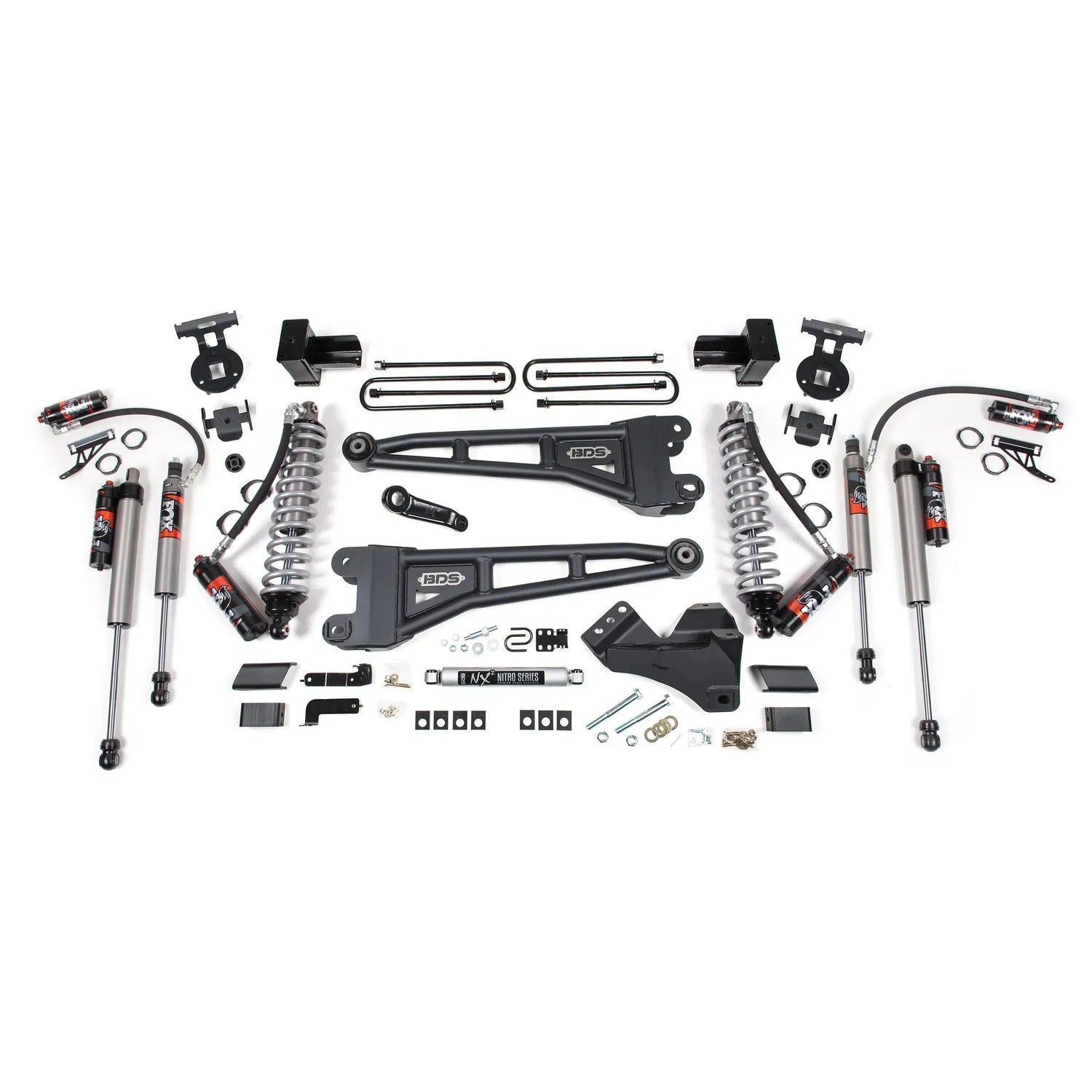

Auxiliary Front and Rear Shock Option

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

Notes

  • Removal of the factory leaf spring block is required. The net rear lift will vary depending on the height of the factory block but will result in a level stance.
  • If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  • Torque wrench capable of 405 ft-lbs required
  • 37 x 12.50 tires may require minor trimming

Questions and Answers

Don't see your question? Ask us anything about this product.

Vehicle Fitment - Part No: BDS1563FPE


Product Fitment Notes
  • 4WD configurations only.
  • Fits dual rear wheel (DRW) models only.
