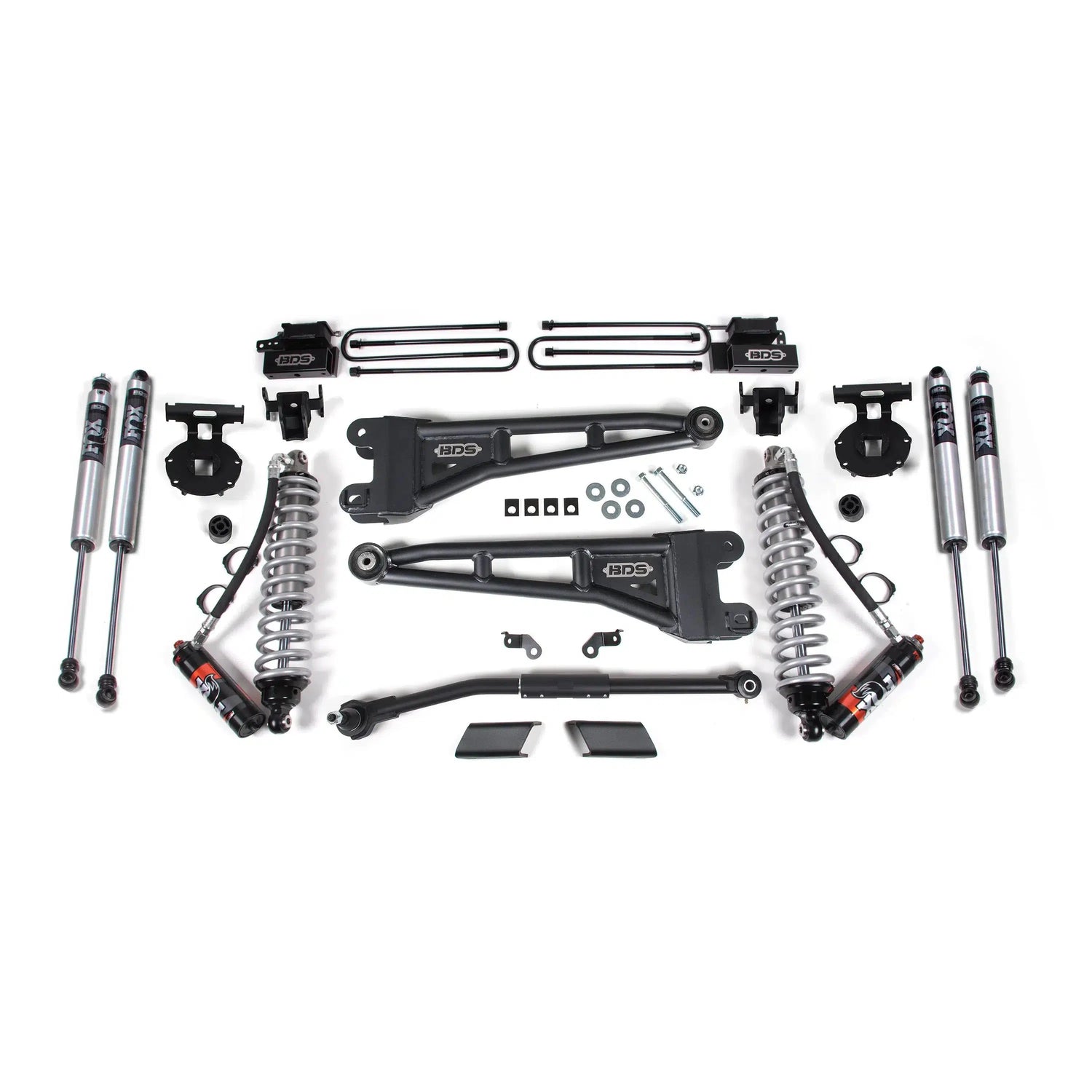

2020-2022 Powerstroke DRW 2.5" Radius Arm Lift Kit (BDS1915FPE)

BDS Part Number: BDS1915FPE
$6,763.71 CAD

Purchase to earn 6763 Dirty Dollars Learn More

Fuel Your Build with These Extras

Price with add-ons:

Description

Fits

Year Make Model
2020-2022 Ford F-450 6.7L Powerstroke



Built to outperform; this 2.5" radius arm lift kit and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Part Number: BDS1915FPE

Features

  • FOX 2.5 Coil-Over mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Adjustable solid steel track bar designed to recenter the front axle
  • Fabricated steel blocks provide level stance from front to rear
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Tire Fitment:

  • Max Tire Size: 35x12.50
  • Front Wheel: 20x8.25, 8.76" BS
  • Rear Outer: 20x8.25, -3.33" BS
  • Rear Inner: 20x8.25, 9.11" BS

Notes

  • Designed for use on diesel models, but can be installed on gas model trucks (will achieve an additional 1/2" front ride height).
  • Larger tires on stock wheels are not recommended due to brake line clearance required. Use recommended specifications listed in tire and wheel fitment section.
  • Installation requires a torque wrench capable of 405 ft-lbs.
