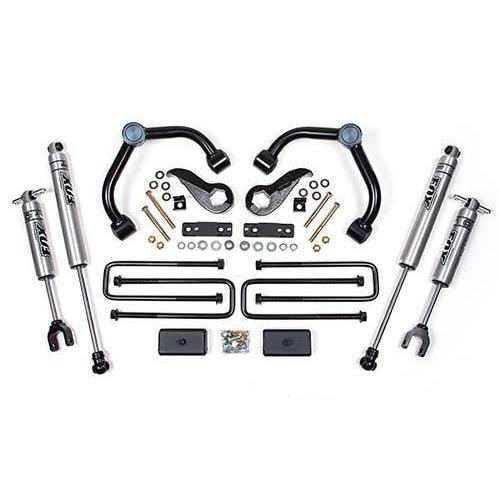

2020-2021 Duramax 3" UCA Lift Kit (BDS760FS)

BDS

Part Number: BDS760FS

Sale price$2,611.93 CAD

Quantity:
This item may have additional freight costs. Learn more
Product images may differ from exact product.
Description

Click here to customize this Kit

Fits

Year Make Model Lift
2020-2021 Chevy / GMC 1 Ton Truck 2WD 3"
2020-2021 Chevy / GMC 1 Ton Truck 4WD 3"
2020-2021 Chevy / GMC 3/4 Ton Truck 2WD 3"
2020-2021 Chevy / GMC 3/4 Ton Truck 4WD 3"



BDS offers improved performance in a new smaller lift height with 3" UCA Lift Systems for the Chevy and GMC 2500HD/3500HD trucks. Designed for simple bolt-on installation.  These arms come fully assembled right out of the box with high-quality greaseable ball joints and rubber bushings for long life, quiet operation, and superior corrosion resistance over uniballs and heims. A small differential relocation kit is supplied to correct CV axle operating angles without affecting ground clearance.

Part Number: BDS760FS

Features
  • High-strength tubular UCAs, gusseted and fully welded. They are specially designed with an indexed ball joint cup to correct the ball joint operating angle for more suspension travel.
  • Cast construction indexed torsion bar keys to provide additional ride height while maximizing ground clearance.
  • Front differential relocation brackets to correct CV axle operating angle.
  • 2" rear lift blocks
  • HD u-bolts to level the stance.
  • FOX 2.0 performance series IFP shocks to improve performance.
  • Maintains ride & handling characteristics with clearance for 35" tires
  • Allows for improved offroad performance with more droop travel.

Tire & Wheel Combinations:

  • 35x12.50 w/ 20x9 and 5.5-5.75"
  • 295/60 w/ 20x9 and 5-5.75"
  • 285/65 w/ 20x9 and 5-6.18"
Notes
  • Disassembly/assembly of the factory torsion bar system requires the use of a special unloading tool (The GM specified tool # CH48809)
  • Compatible with gas or diesel models
  • Compatible with AT4 models
  • Some minor trimming may be necessary to fit certain wheel/tire combinations. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks and typically consists of trimming the bottom edge of the inner fender shrouds and/or lower corner of the front bumper valance.
  • As a rule of thumb, deeper backspacing and shorter/ narrower tires will reduce/eliminate the trimming required. Further trimming tips are included at the end of this instruction sheet Compatible with DRW models, use w/ overload rear box kit #011217
