2019-2021 Cummins 3500 4" Radius Arm Lift Kit - NX2 Shocks (BDS1656H)-Lift Kit-BDS-Dirty Diesel Customs

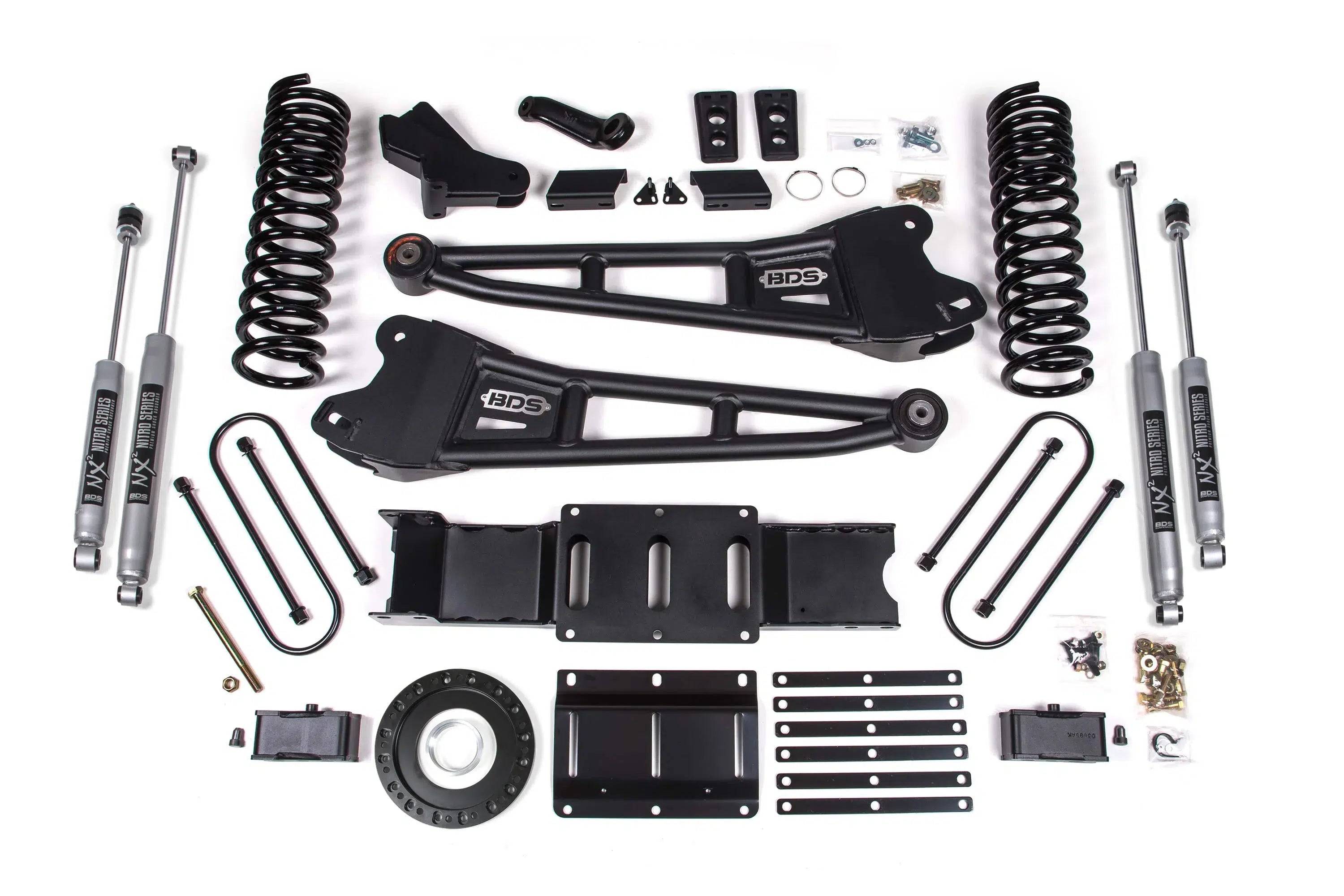

2019-2021 Cummins 3500 4" Radius Arm Lift Kit - NX2 Shocks (BDS1656H)


Part Number: BDS1656H + 6Bolt

Sale price$3,379.41 CAD

Transfer Case Indexing Ring:I have a 6-Bolt T-Case Indexing Ring
This item may have additional freight costs. Learn more
Product images may differ from exact product.

Click here to customize this Kit


Year Make Model Type Lift
2019-2021 Dodge / Ram 3500 Truck w/o Air-Ride 4"


Designed to improve the looks and performance of your new RAM, these kits include everything necessary to correctly lift them for improved off-road capability with room for larger tires while maintaining on-road handling.

Part Number: BDS1656H

  • HD tubular radius arms improve strength, offer more ground clearance & correct caster
  • High strength progressive-rate 4" front coil springs for a great ride on any terrain
  •  3" rear block
  • HD track bar relocation brackets to correctly position both axles under the truck
  • Forged drop pitman arm to correct steering angles
  • Sway bar correction to maintain handling performance
  • HD transmission crossmember
  • Transfer indexing ring to correct front driveline angles for both the 6-bolt & 8-bolt equipped trucks
  • BDS NX2 gas shock improve ride and offroad performance
  • Allows clearance for up to 37" tires

Tire & Wheel Combinations:

  • 37x12.50 w/ 17x9/18x9/20x9 and 5.625"
  • 35x12.50 w/ 17x9/18x9/20x9 and 4.5"
  • T-case indexing ring available for 6-bolt and 8-bolt equipped models, check the vehicle before ordering
  • Will not fit rear air-ride equipped models
  • Will not fit Dually Models
  • Will not fit Cab and Chassis Models
  • Kit designed for diesel models only

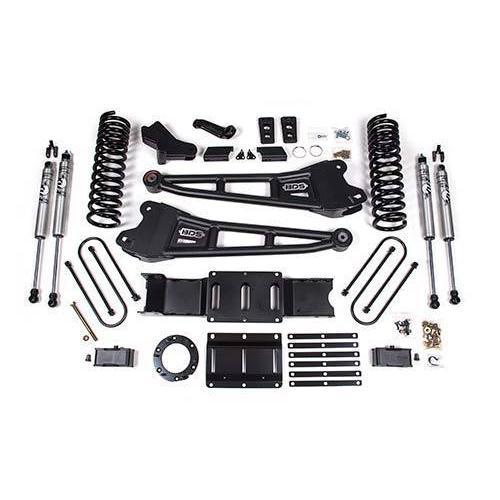

  • Although this is pictured with Fox Shocks, this kit will come equipped with BDS Shocks. If you would like fox shocks, please reach out.
