2019-2024 Cummins Ram 3500 3" Radius Arm Suspension Lift Kit (BDS1654H)

Designed to improve the looks and performance of your new RAM, these kits include everything necessary to correctly lift them for improved off-road capability with room for larger tires while maintaining on-road handling.

Part Number: BDS1654H

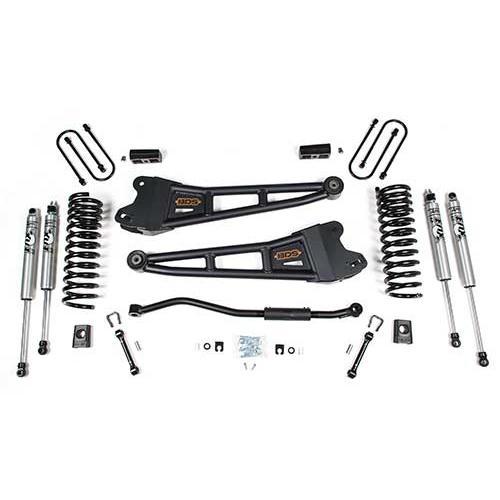

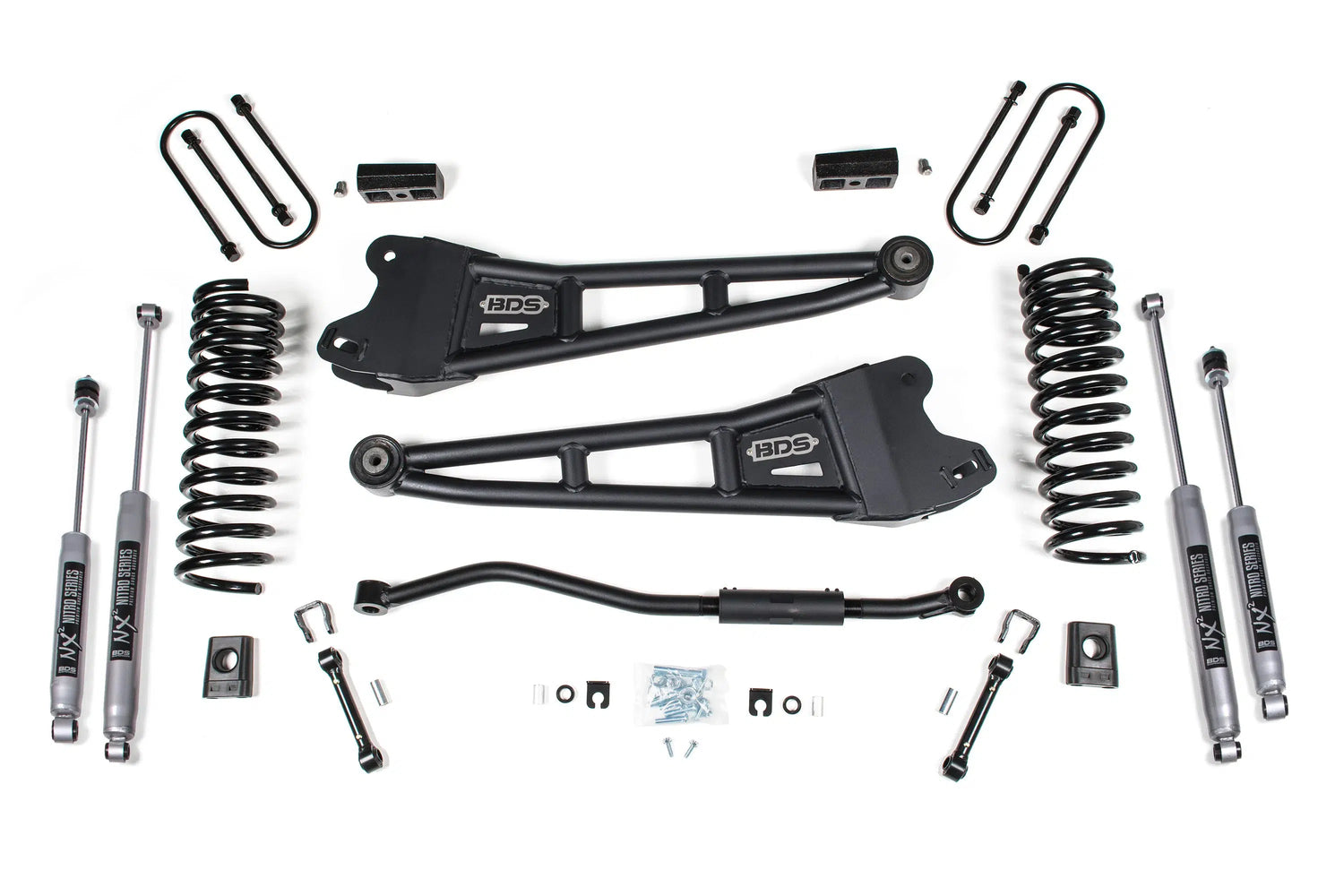

• HD tubular radius arms improve strength, offer more ground clearance & correct caster
• 2" steel fabricated lift blocks
• High strength progressive-rate front coil springs for a great ride on any terrain
• HD adjustable front track bar & rear relocation bracket to correctly position both axles under the truck
• Front sway bar links and bump stop extensions to maintain functionality.
• BDS NX2 gas shocks to improve ride and offroad performance
• Allows clearance for 35" tires

Tire & Wheel Combinations:

• 35x12.50 w/ 18x9 and 4.5-5"
• 35x12.50 w/ 20x9 and 4.5-5"

• T-case indexing ring available for 6-bolt and 8-bolt equipped models, check the vehicle before ordering
• Will NOT fit rear air-ride equipped models
• Will NOT fit Power Wagon models
• Kit designed for diesel models only


• Click Here For Installation Instructions
• Difficulty: 3 (where 1 = easiest and 5 = complicated)

Don't see your question? Ask us anything about this product.

• ?

  In the description it says for a 3500 would it fit on a 2500 and what is factory overload for the rear thanks you

  Great question! While the front suspension components are very similar, this specific kit is not a direct fit for a Ram 2500 due to the rear suspension design.

• ?

  Does this lift still work if you have ram air suspension?

  Will not fit rear air-ride equipped models.
