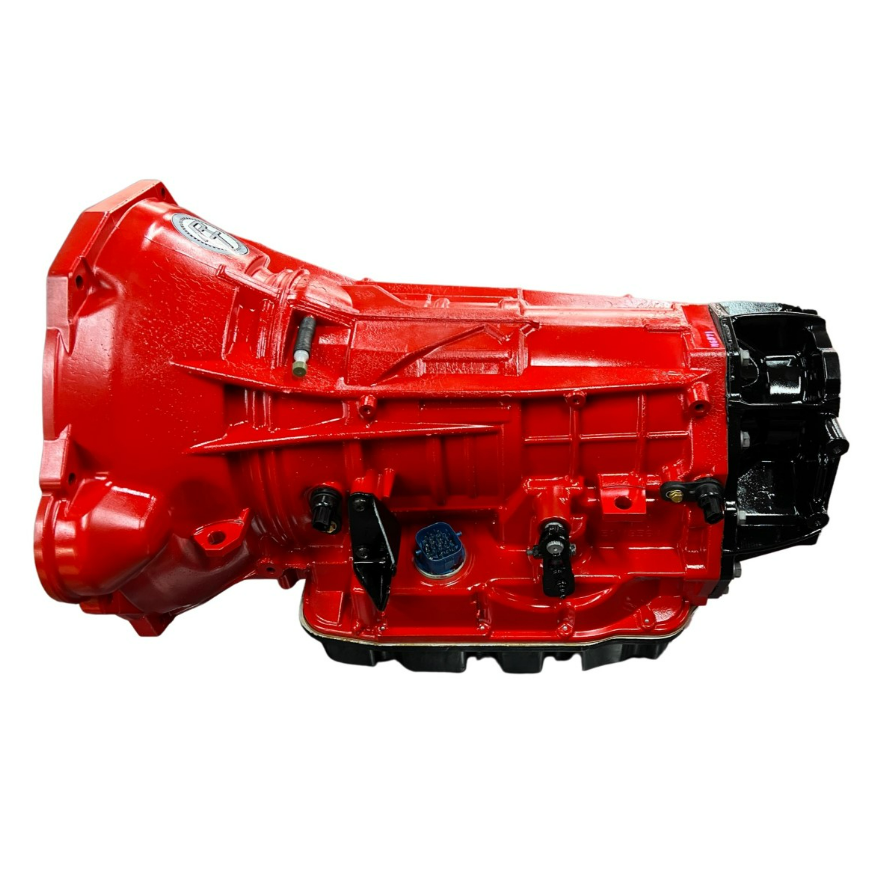

2019-2023 Cummins Stage 3 68RFE Transmission (68RFE20193RT)

Description

Fits

 Power Rating: 900HP

For those who are more focused on street performance and still want the ability to tow heavy equipment without worrying about the same old problems that stock 68RFEs have always had, this stage 3 transmission is significantly more robust and can handle anything you throw at it.

Part Number: 68RFE20193RT

Features

• Babymaker 2000 Billet Channel Plate Valve Body
• OE Mopar solenoid block
• Billet accumulators and cover providing 3 additional bolts
• Transgo SSV valves
• PR valve, TCC limit valve, Pump bushing and new gears when needed
• Randy's built Triple Disc or optional Quad Disc XHD Series Billet Converter
• Sonnax input shaft
• Revmax 850 input drum
• Pumps are vacuum tested and repaired as required
• 2C power-packed with billet piston
• 14 L/R clutches
• Bonded pistons
• Revmax Steel center support with 5 4C clutches and billet piston
• TCS Low/Reverse Sprag update
• New Billet 4th hub
• Tig welded Low Reverse planet
• Bushings are spec'd and replaced as required
• New Sonnax Bearings
• OE Mopar line pressure sensor
• OE Mopar speed sensors
• Steel spin on filter adapter
• New Spin On Filter
• New Push On Filter
• HD Cast aluminum deep pan

Notes

• Lead time on builds can vary
