2019-2025 GM 1500 6-Lug Wheel Bearing Assembly (AX515197)

Axiom Supply
Regular price $374.39 CAD

Purchase to earn 374  Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Description

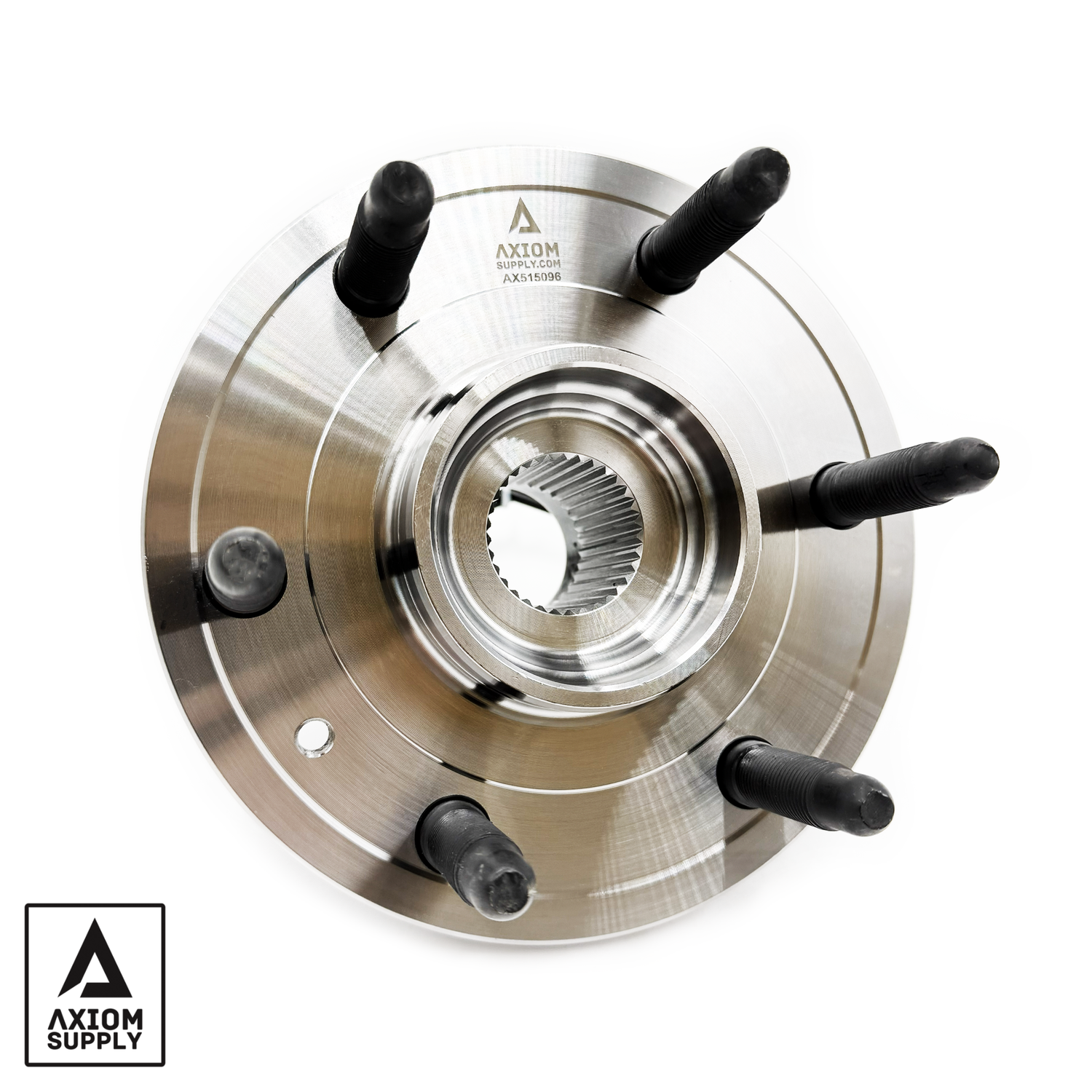

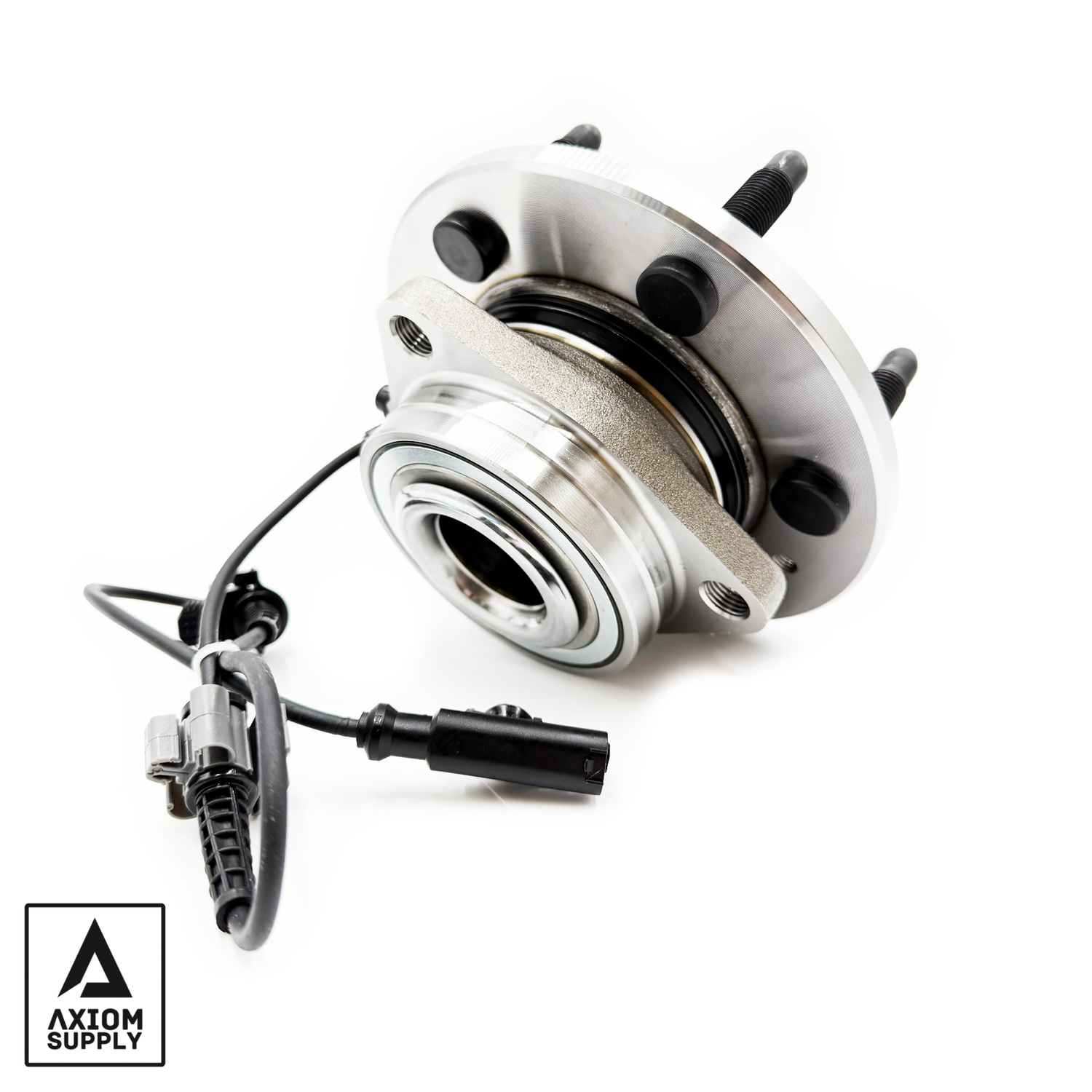

This front wheel bearing and hub assembly covers GM's T1XX full size truck and SUV platform with an integrated ABS sensor and a 6x5.5" (6x139.7) bolt pattern. The bearing and hub structure is built to cut down hub face deflection under load, which means tighter steering response and more consistent braking when you're towing, running oversized tires, or carrying a lifted setup. It ships as a complete bolt-in unit that works on either the left or right spindle, with a typical install time around 2 hours and no modifications required.

Part Number: AX515197

Features

  • Precision tapered roller bearings packed with high performance grease for smooth, maintenance free operation
  • Grade 10.9 cold formed, zinc plated wheel studs for high tensile strength and corrosion protection
  • Durable ABS sensor holds accurate signal transmission through heat, mud, and moisture
  • Rolled inner spindle design accommodates both 2WD and 4WD systems
  • 6x5.5" (6x139.7) bolt pattern with M14-1.50 lug studs
  • Fits left or right front position
  • Complete bolt-in unit, roughly 2 hour install with no special modifications

Includes

  • 1 x Wheel Bearing & Hub Assembly with integrated ABS wire

Notes

  • Axle nut torque: 188-225 ft-lbs depending on exact application
  • Spindle bolt torque: 133 ft-lbs
  • Main caliper bolt torque: 170-221 ft-lbs depending on brake package

Warranty

Axiom No-Nonsense Lifetime Warranty: Axiom steering and suspension components are warrantied for life to their original purchaser. This warranty is against any manufacturer defects, premature wear, or breakage. Race it, jump it, off-road it, wreck it, lift it—if you can break it, we will replace it. Axiom products must be purchased from an authorized dealer.
