2019-2024 Ram 2500 Dominator 2" Lift Kit (CS-DD30-19-PW)

Carli Suspension
$13,880.16 CAD
2014-2024 Cummins Rear 1-2" Lift Multi-Rate Coil Springs (CS-DMRC-14-R1) (Coil Spring Type)
Notices

This item may have additional freight costs. Learn More

Build Your Kit

There are differentiating factors between R1 & R2 Coil Springs. Be sure to select the appropriate coil springs best suited to your application - See 'Notes' tab

Rear Track Bar

Required

The rear axle of the Ram 2500 shifts laterally as it cycles through suspension travel. This rear side-to-side movement, referred to as "yaw", is felt in-cab at the least-opportune times. We offer two options, a drop bracket to minimize the rear yaw as much as is possible with the short factory track bar, or our Carli Extended Rear Track Bar can be optioned offering a massive increase in length, and reduction in angle, to effectively eliminate this yaw, resulting in far more composed and predictable handling.

Torsion Sway Bar

Optional

Maintaining the factory sway bar is only recommended for customers requiring the stiff rate of the factory sway bar - i.e.: those with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.

Fabricated Radius Arms

Optional

Icing on the cake, these arms add Limit Strap Protection for your Front Shocks, 1/4" Boxed Steel Construction, and Serviceable 3" - 17-4 Stainless Steel Spherical Bearings.

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer replacing the OEM unit in the factory location. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

High Mount Steering Stabilizer

Optional

Front Differential Guard

Optional

Better to have it and not need it than need it and not have it.

Lifetime Ball Joints

Optional

The last set of ball joints you'll install carrying the industry's best warranty you won't need to use!

Subtotal

Purchase to earn 13880  Dirty Dollars Learn More

Description

Fits

Year Make Model
2019 - 2024 Ram 2500 Power Wagon

Note: Not compatible with factory rear air ride trucks or diesel applications

There are differentiating factors between R1 & R2 Coil Springs. Be sure to select the appropriate coil springs best suited to your application - See 'Notes' tab

Looking for unrivaled off-road performance without compromising on-road ride quality? Let us introduce the Carli-Spec Custom Tuned King 3.0 Remote Reservoir Shocks. Loaded with features to maximise capability over any terrain, perfectly balanced, the front and rear bottoms with the same intensity, and the chassis remains controlled and level following the bottoming event, never throwing the vehicle out of control.

Part Number: CS-DD30-19-PW

Features
  • Carli-tuned King 3.0 shocks that provide a fantastic on-road ride and superior off-road performance

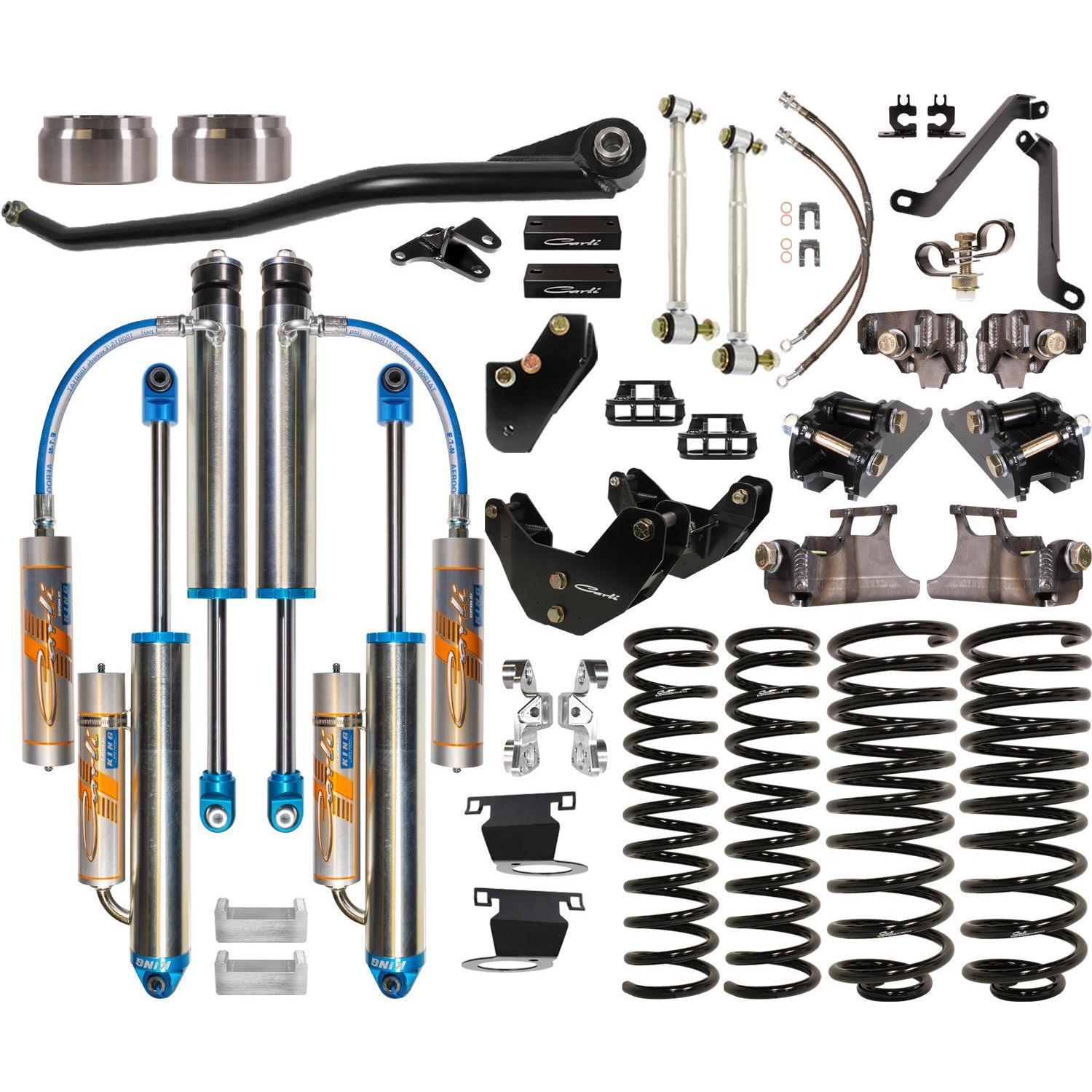

  • Multi-rate front and rear coils, front and rear shock package, shock mounts, brake lines, coil isolator supports, bed supports, radius arm drop brackets, adjustable track bar, front and rear bump stop drops
  • This system requires weld-in installation of coil isolators, front lower, and rear upper shock mounts.
  • Allows for 8.5" of front suspension travel and 11" rear suspension travel

Notes
  • Not compatible with factory rear air ride trucks

IMPORTANT - R1 & R2 Coil Springs:

Be sure to select the lift kit package with the appropriate coil springs best suited to your application

  • R1: The perfect complement to an unloaded truck with custom-tuned Carli shocks. Ideal for customers desiring a level appearance and the BEST ride with capability up to 1,500lbs of bed-load.
  • R2: Suited to the customer wanting to maintain the payload capacity and factory rake (unloaded), willing to accept a slightly firmer ride vs. the R1 (it is still softer than OEM rear springs). OR – The customer looking for the best ride and level appearance when loaded with a constant 800lbs (i.e., Overlanders).
