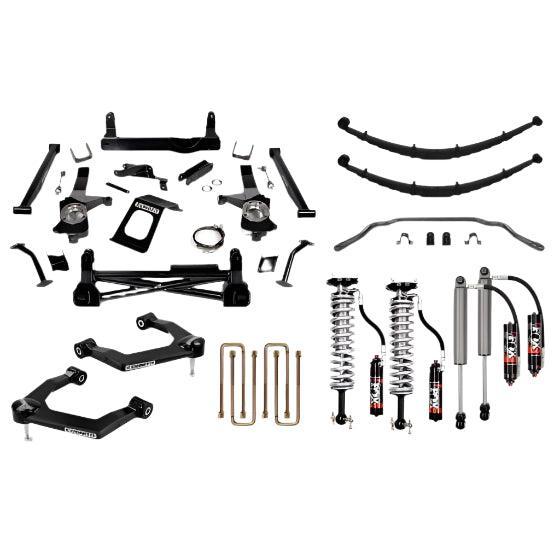

2019-2025 GM 1500 8" Elite Lift Kit W/ Fox 2.5 Elite Performance Series Shocks (210-P1223)

Fits

Notes: Includes -  AT4, AT4X, Trail Boss, & ZR2

Elevate your GM 1500 with this all-inclusive lift kit!

The 8" Elite lift kit comes complete with everything required to have you clearing 37s. This kit offers superior ride quality and corrected CV joint angles.

Fox 2.5" Performance Elite shocks deliver jaw-dropping ride quality while giving your truck that head-turning stance everyone wants. Unlike the competition, Cognito has thrown in a stiffer sway bar to handle that new height.

The Ball Joint SM Series Upper Control Arms are made from boxed sheet metal, CNC robot-welded, and powder-coated semi-gloss black. They add style, function and performance to your ride by correcting the Ball Joint Angle in lifted and leveled applications. Ball joints are included as well as new crush sleeves and polyurethane bushings.

This Deaver Leaf Packs features a progressive rate design that'll have your ride feeling smoother while boosting your rear end a full 6" higher! Why choose between comfort and height when you can have both in one fun package?

Part Number: 210-P1223

• Yields 8" of front lift & 6" of rear lift
• 8" Front Lift Components
• SM Series Ball Joint Upper Control Arms
• Fox 2.5" Elite Performance Series shocks
• 6" Lift Deaver Leaf Pack
• Stainless Steel extended brake lines
• Improved ball joint angle
• Maintains Adequate Droop Travel for Superior Ride Quality
• Levels vehicle front to rear


• CV Front Driveline is required on 4WD models if operating in 4WD above 20mph
• Required for 2025 models: add the Leaf Spring Top Plate Conversion  110-91316
• This product requires bypassing ARC Adaptive Ride Control system (1500 Denali models).

• Allows for up to a 37 x 12.5" Tire on a 10" wide wheel

Parts Only

• Limited Lifetime Warranty - Cognito branded products
