2019-2025 GM 1500 6" Elite Lift Kit W/ King 2.5 Remote Reservoir Shocks (510-P0955)

Elevate your GM 1500 with this premium, all-inclusive 6" Elite Lift Kit W/ King 2.5 Remote Reservoir Shocks!

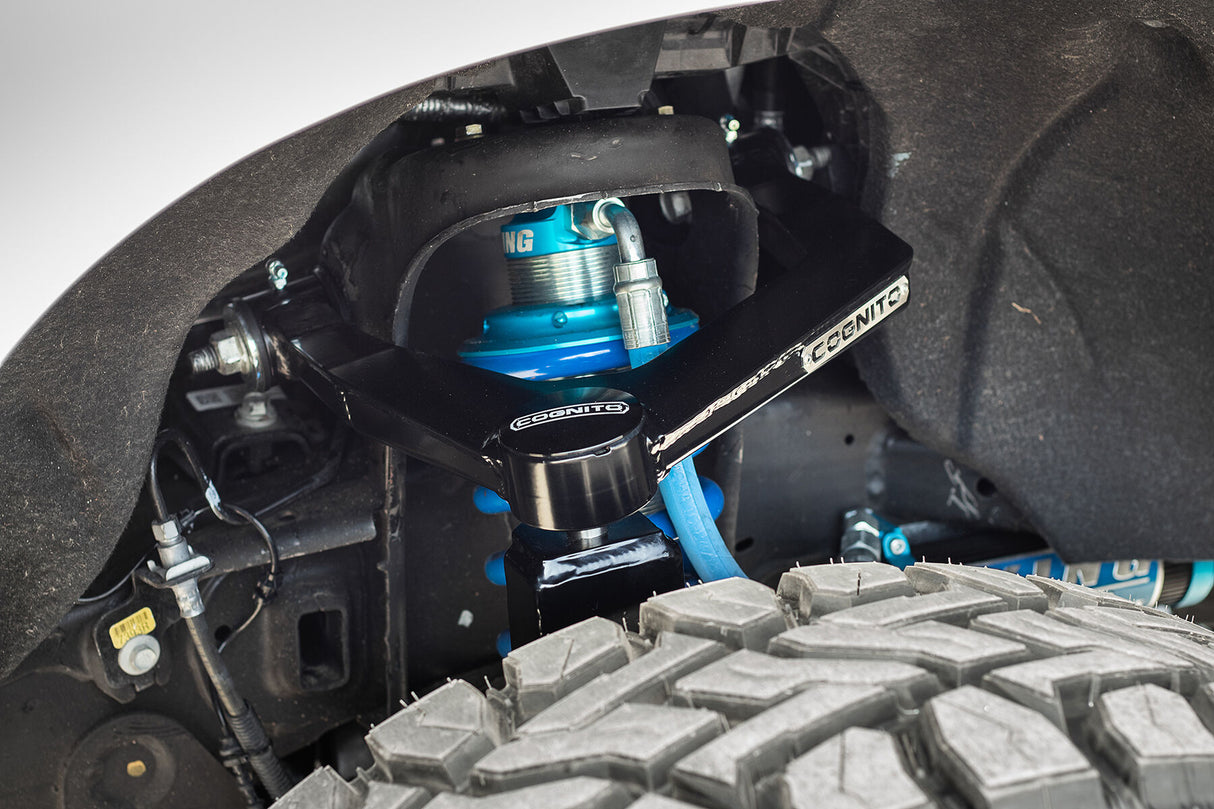

The Ball Joint SM Series Upper Control Arms provide style, function and performance by correcting ball joint angles in lifted and leveled trucks. They are powder-coated, semi-gloss black, welded, boxed sheet metal arms. Ball joints are included as well as new crush sleeves and polyurethane bushings.

King’s OEM Performance Race Series Shocks bolt right on to boost your GM 1500’s ride and off-road game. Tested tough, it delivers smoother handling and better height without the harsh bounce.

The Deaver Mini Leaf Pack adds 1-3" of rear lift while keeping your ride comfy—no more stiff bottom springs. Easy to install and built tough, this kit gives you that quality ride every day, whether you’re cruising or conquering trails.

Part Number: 510-P0955

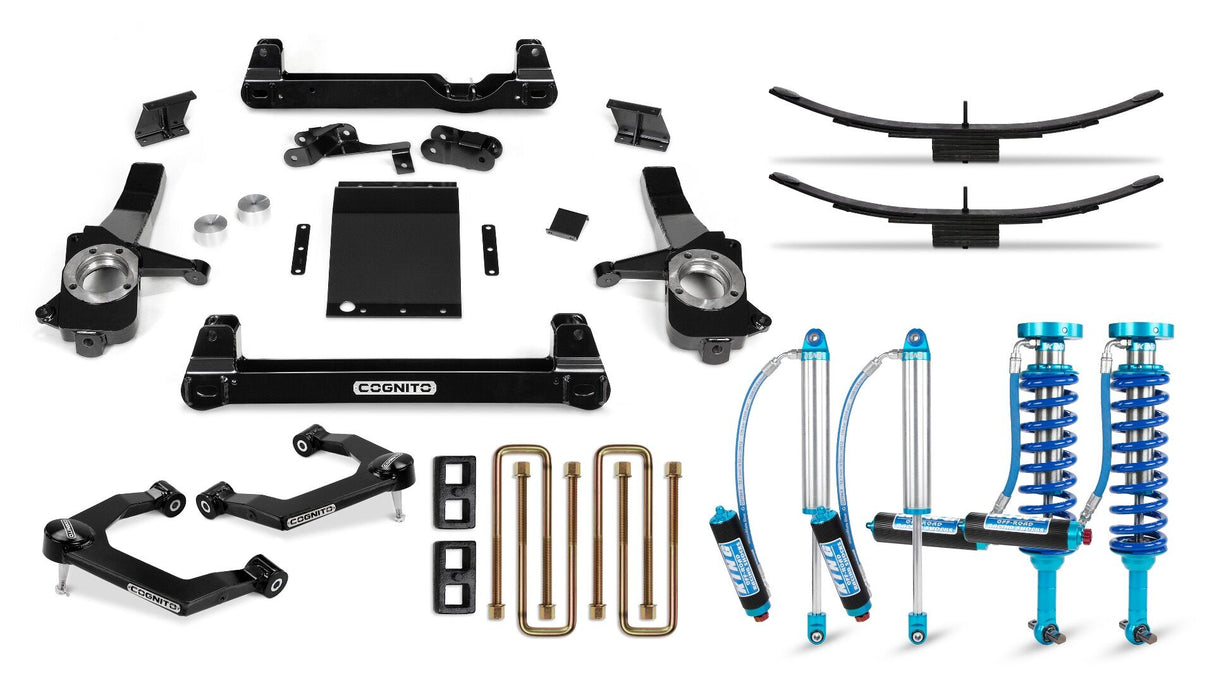

• Yields 6" of front lift & 4" of rear lift
• 6" Front Lift Components
• SM Series Ball Joint Upper Control Arms
• King 2.5 Performance Race Series Adjustable Remote Reservoir Shocks
• 2" lift Deaver mini pack
• 2" block and U-bolt kit
• Improved ball joint angle
• Maintains Adequate Droop Travel for Superior Ride Quality
• Levels vehicle front to rear

• Made in the USA

• 14-hour DIY install time
• Click Here 7415
• Click Here 7024
• Click Here 7281
• Click Here 8139
• Click Here 8148

• This product requires bypassing ARC Adaptive Ride Control system (1500 Denali models).
• Not compatible with trucks equipped with composite mono-leaf rear spring.
• CV Front Driveline is required on 4WD models if operating in 4WD above 20mph

• Allows for up to a 35 x 12.5" Tire on a 10" Wide Wheel with 4.5" Backspacing

Parts Only

• Limited Lifetime Warranty - Cognito Branded Products
