2019-2024 GM 1500 4" Lift Kit w/ NX2 Nitro Series Rear Shocks (BDS1802H)

BDS steps up the performance and capability of the Chevy Silverado and GMC Sierra 1500 trucks with 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires

Part Number: BDS1802H

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• High-strength replacement upper control arms provide durability and serviceability
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Shock Features:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

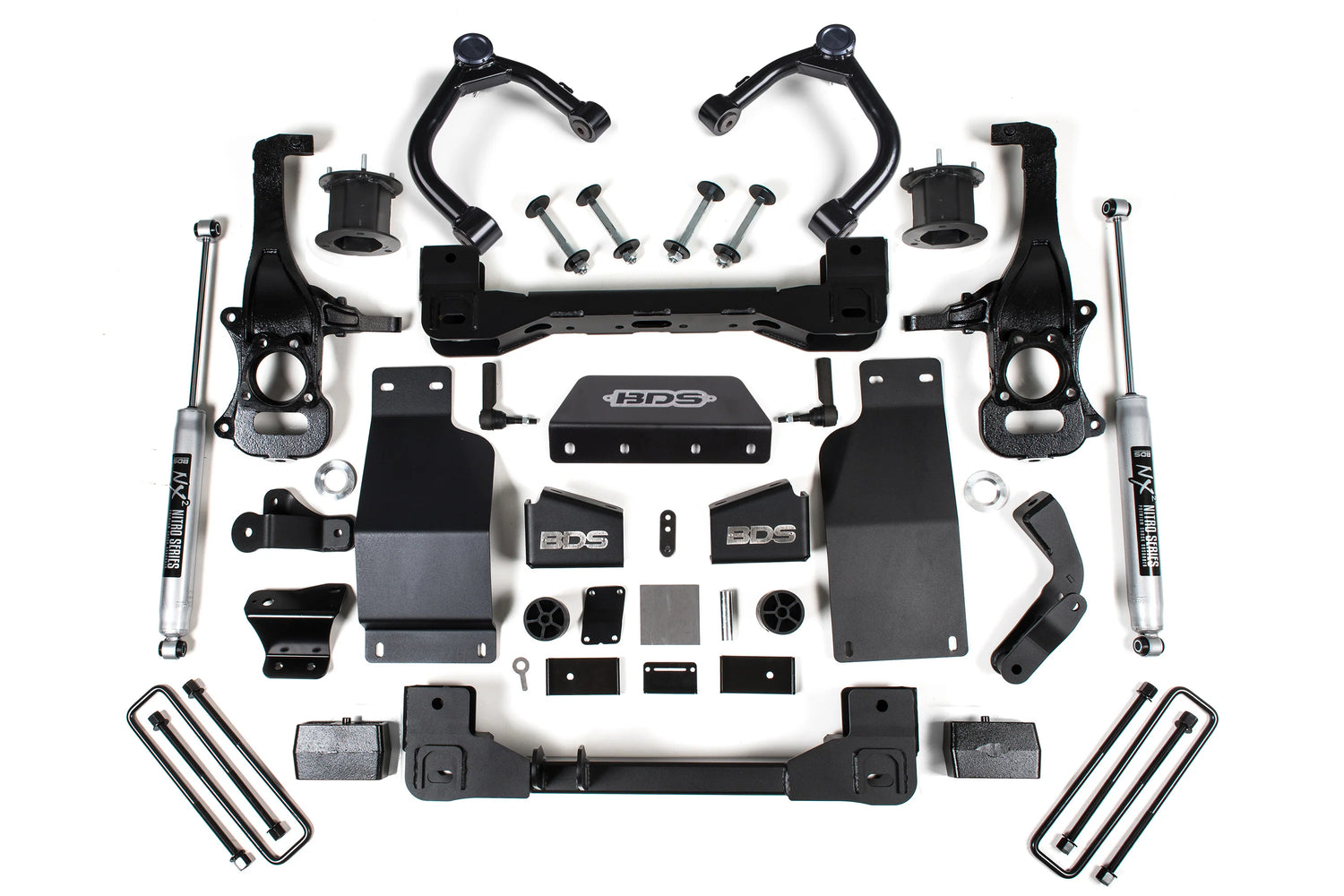

Includes

• Includes one BDS011316 4 inch Rear Box Kit
• Includes one BDS021405 4 inch Strut Spacer Box
• Includes one BDS021664 Knuckle Box 1/2 w/UCA (4 inch and 6 inch Compatible)
• Includes one BDS021665 Knuckle Box 2/2 w/UCA (4 inch and 6 inch Compatible)
• Includes one BDS021682 6 inch Front Box Kit 1 of 2
• Includes one BDS021685 6 inch Diesel Front Box Kit 2 of 2
• Includes two BDS85758, Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1

• Requires frame bracket modification

• 2.7L models use Diesel kit for proper skid plate fitment
• Will not fit models equipped with ARC

• If equipped with a mono-leaf rear spring please use part #UBT4064

Note: 17" Wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod.

• 33 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 33 x 12.5 with 20 x 9 and 5 in. Backspace
• 35 x 12.5 with 20 x 9 and 6.25 in. Backspace

Installation Guide

Estimated Installation time is 8 Hours

BDS No Fine Print Warranty
