2019-2024 Cummins High Output 4.5" Coil Spring Falcon 2.1 Lift Kit 4WD (49-19431)

Note: Fits High Output models only. NOT compatible with Standard Output models or factory air suspension systems

ReadyLift has upgraded its 4.5" coil spring lift kit for the 2019-2024 Ram 3500 High Output Cummins with four vehicle-specific Falcon 2.1 Monotube Shocks, for improved ride quality, stability and control over the previous kit (49-19430). The kit still carries all the small components a cheaper lift leaves out: ReadyLift's Driveline Indexing System (DIS) with a transfer case clocking ring, OEM output shaft seal and heavy-duty transmission crossmember keeps the transmission and pinion where they belong, so you never get that irritating driveline vibration.

You get big-lift stance and 37" tire clearance in a practical, garage-friendly 4.5" package, with the heavy-duty radius arm, track bar, sway bar and steering correction parts the Ram 3500 needs.

Part Number: 49-19431

• 4.5 inches of front lift with 3-inch rear tapered blocks
• Four Ram 3500 specific Falcon 2.1 Monotube Shocks
• Large 2.3-inch shock body for increased oil capacity and heat dissipation
• Heavy-duty 3/4-inch induction-hardened, chrome-plated shock shaft and 6061-T6 billet aluminum piston
• CNC-machined 6061-T6 billet Driveline Indexing System re-clocks the transfer case for improved front driveline angles
• Heavy-duty radius arm drops, track bar bracket, drop pitman arm and sway bar drops maintain suspension and steering geometry
• Heavy-duty transmission crossmember included

Wheel & Tire Fitment:

• Maximum fitment: 37x12.50 tire
• 20" x 9" wide wheel, -18 offset

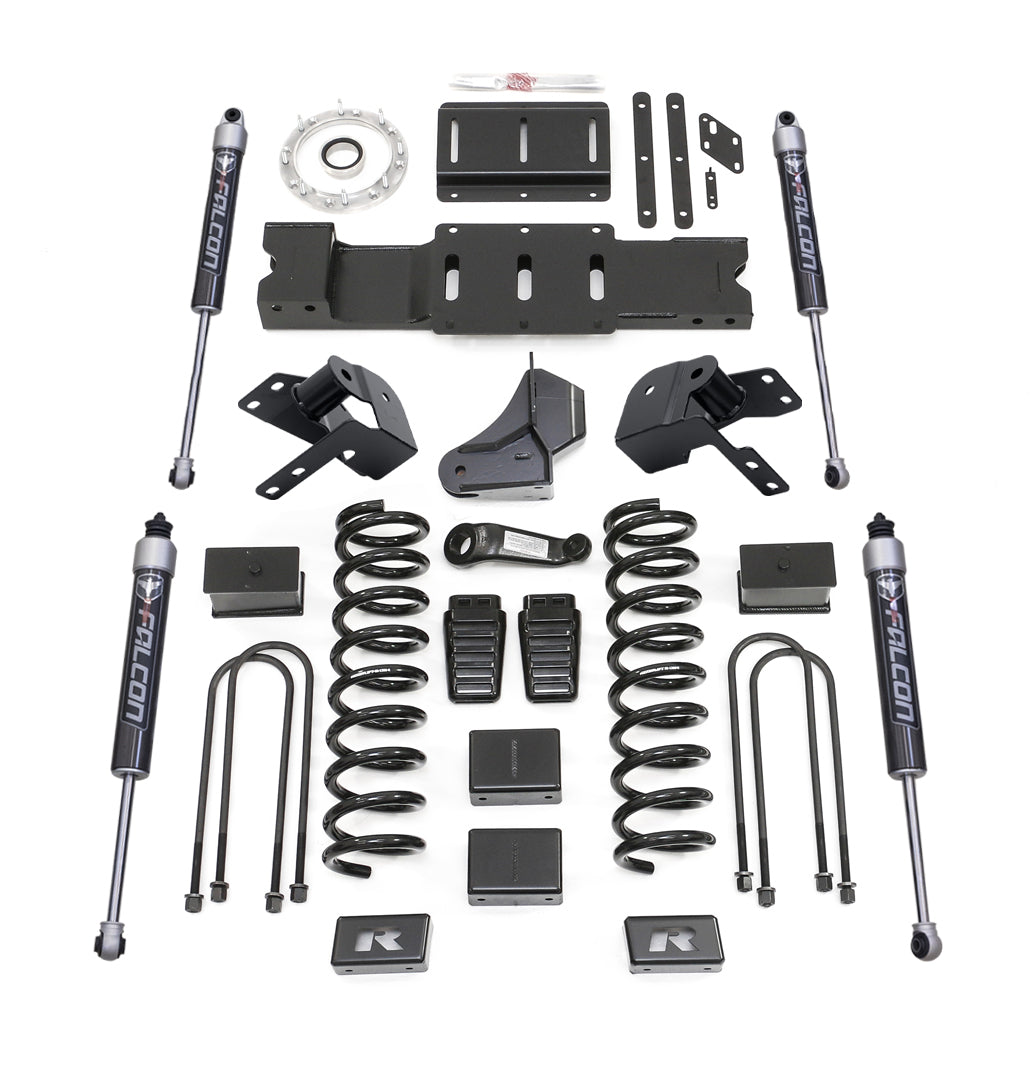

Includes:

• 4.5" Front Lift Springs
• 3-Inch Fabricated Rear Blocks
• 19-21 Ram 3500 U-Bolts for 4.5-Inch Kit
• Falcon 2.1 Monotube Shocks, Front (pair)
• Falcon 2.1 Monotube Shocks, Rear (pair)
• Radius Arm Drops, Driver and Passenger
• Front Track Bar Bracket
• Sway Bar Drop Brackets, Driver and Passenger
• Replacement Front Bump Stops
• Rear Bump Stop Extensions
• Drop Pitman Arm
• Transmission Connector Bracket
• Transmission Crossmember
• Transmission Harness Bracket
• Transmission Mounting Plate
• Transmission Mount Spacer
• 8 Bolt Clocking Ring
• Front and Rear Brakeline Brackets
• E-Brake Extension
• Transfer Case Spacer
• Auto Trans Extension Housing Seal (MOPAR)
• Hardware Pack

• Only for the 6.7L Cummins High Output engine with the Aisin AS69RC transmission
• Not compatible with standard output 6.7L diesel engines, HEMI gasoline engines, dually models, Classic models, factory air suspension, Auto Level systems (factory helper bags), or any automatic-leveling rear air suspension
• Single Cab configuration has not been validated for fitment and drivability by ReadyLIFT
• Ram TSB 03-003-23 (ratchet type click heard in 4WD while turning): recommended driveline for the 68RFE is Adams Driveshaft ASDRAM-1350F-5GEN
• Estimated installation time: 12 hours +/- 1 hour, excluding alignment and wheel/tire assembly. Alignment and headlamp aim should be checked after installation

ReadyLift 49-19431 Installation Instructions
