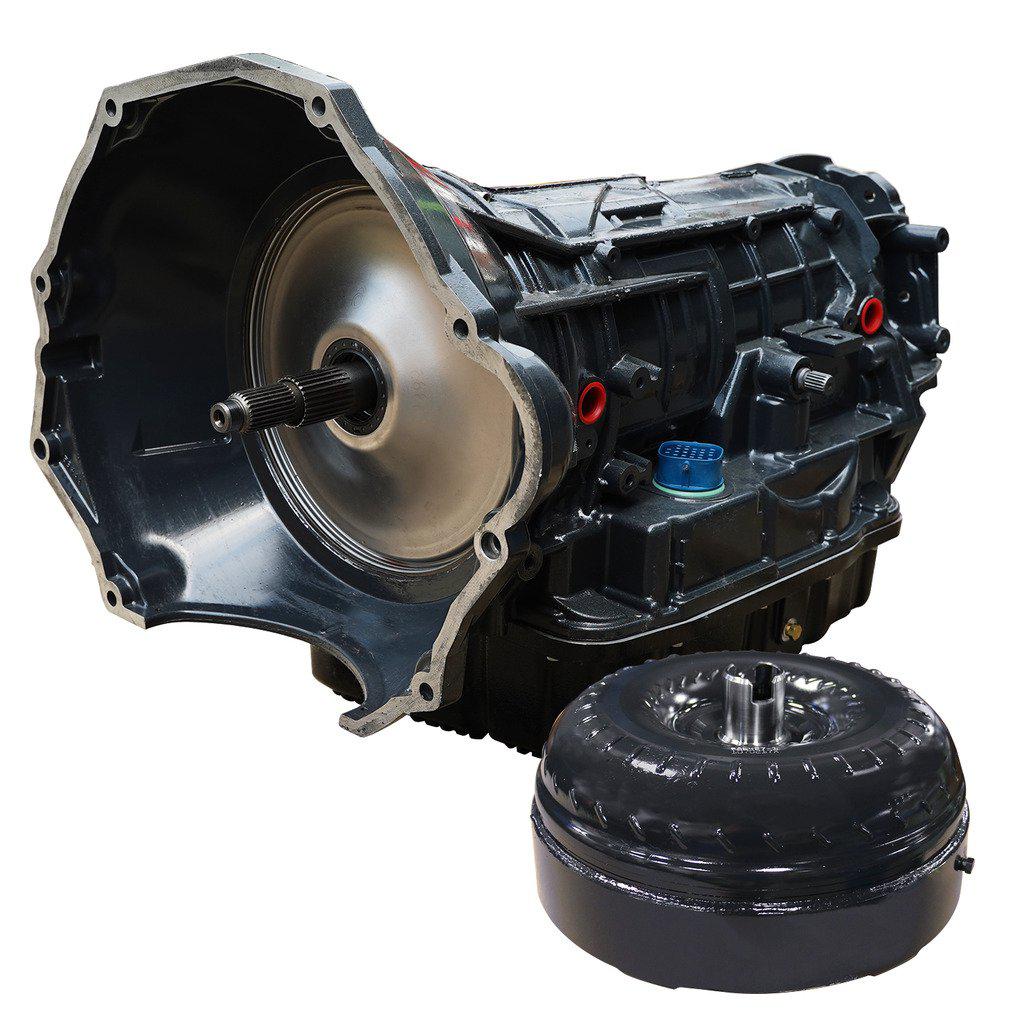

2019-2024 Cummins TowMaster 68RFE Transmissions & Converter Package (4WD) (1064294SS)

BD Diesel Part Number: 1064294SS
$9,550.00 CAD

Additional Refundable Core Deposit Required of $3,400.00 CAD.

Purchase to earn 9550 Dirty Dollars Learn More

Description

Fits

 Year Make Model Engine
2019-2024 Dodge Ram
2500/3500 4WD 6.7L Cummins & 68RFE

When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy-Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

Part Number: 1064294SS

Features

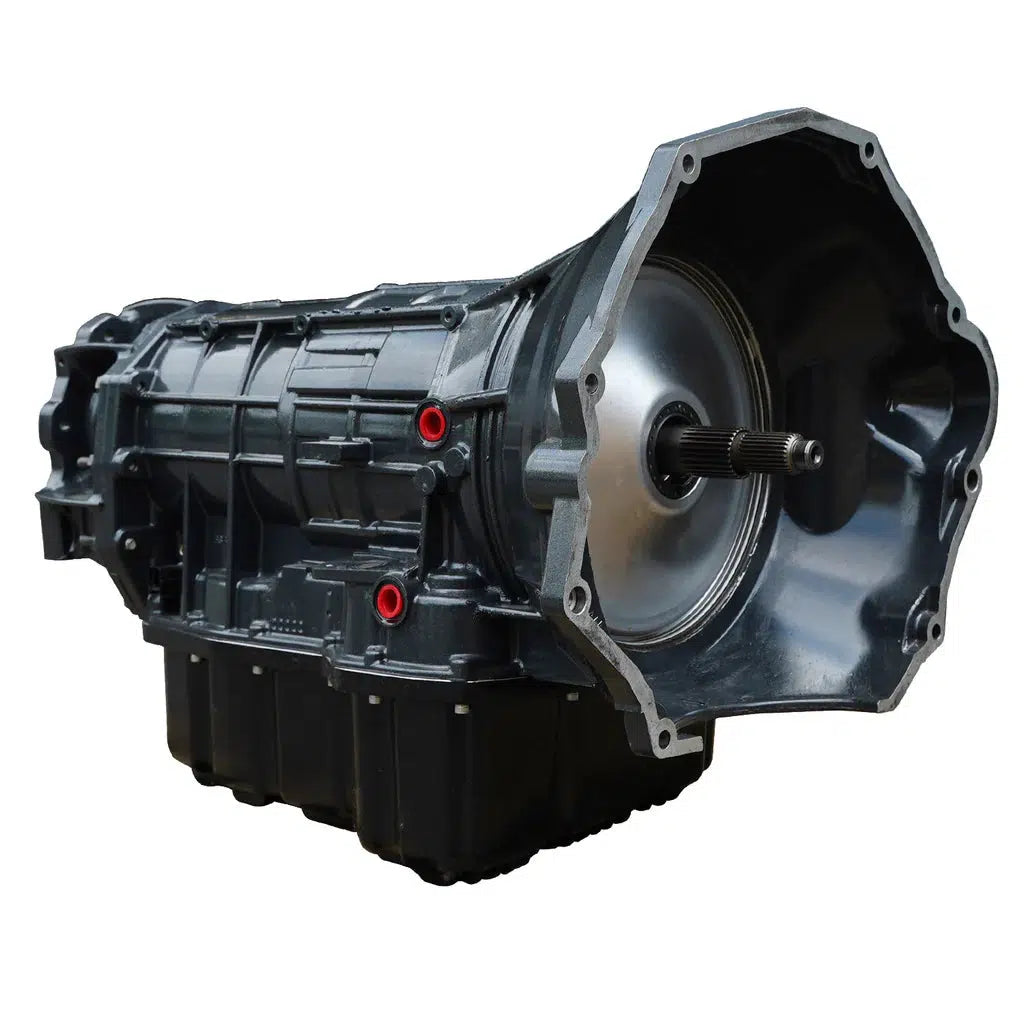

Transmission:

  • Hard anodized valve body and new solenoid pack installed in every unit
  • Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
  • Heavy duty cam & roller design low reverse one way clutch
  • New 4C billet spring retainer
  • Steel girdle added to 2C piston to allow for more clutches and broader apply area
  • BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
  • Over Drive clutches 33% increase & 2C clutches 33% increase

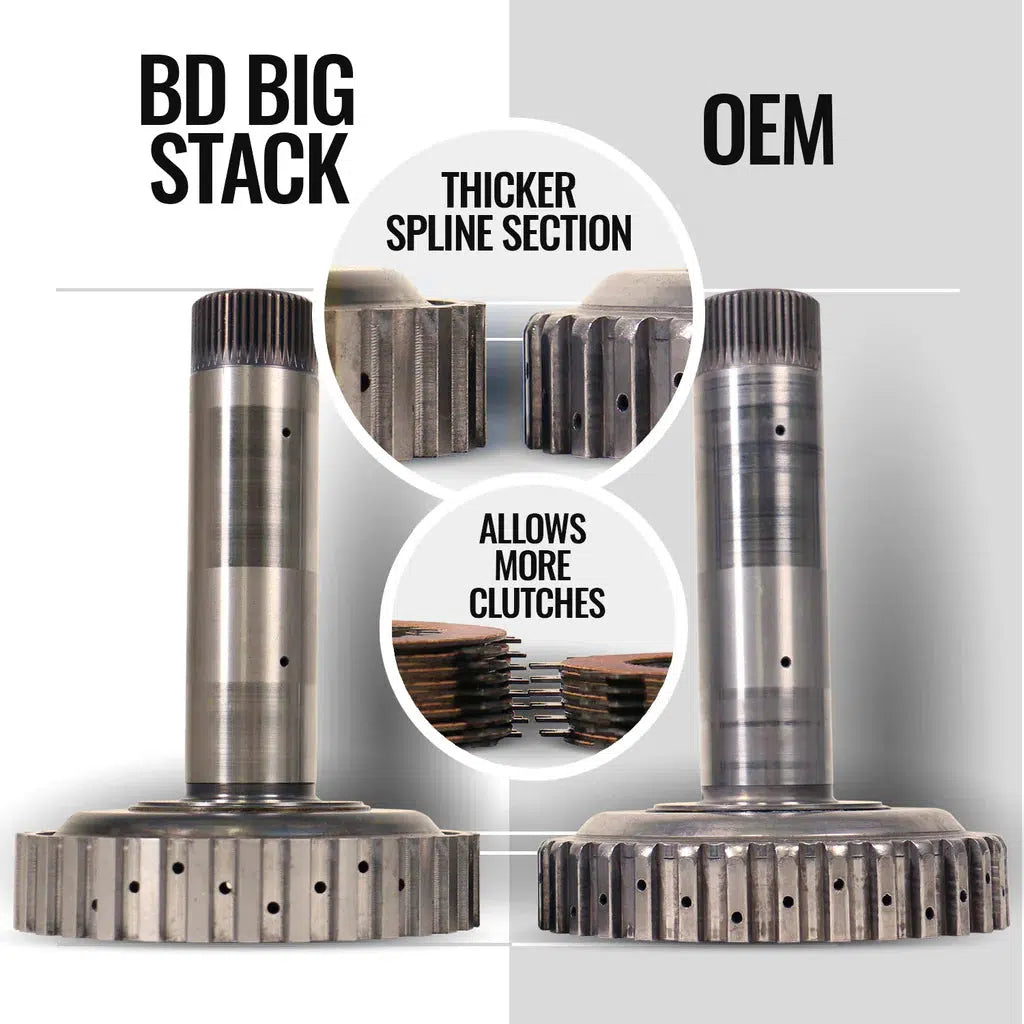

  • Custom Big Stack overdrive shaft
  • BD reinforced accumulator plate
  • BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex

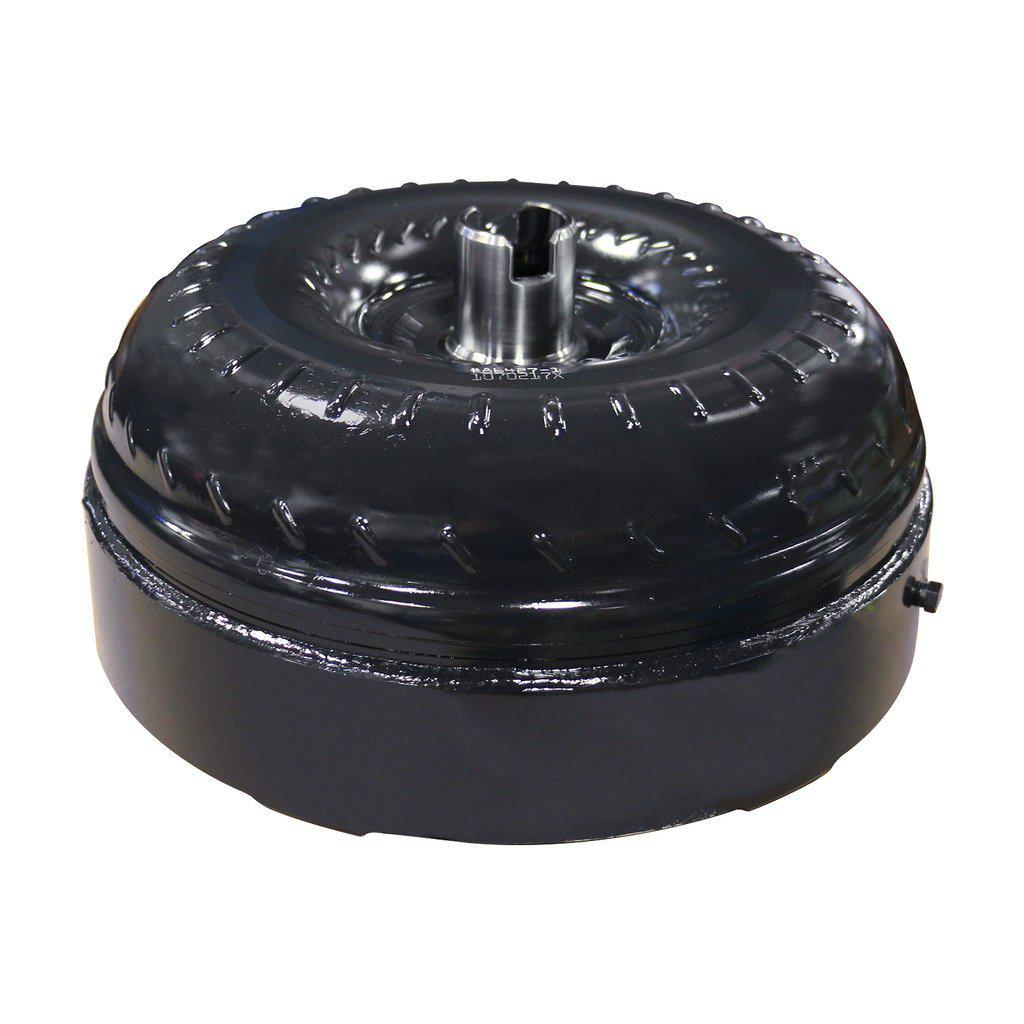

Proforce Converter:

  • Good for 550 flywheel HP
  • Ideal replacement for stock torque converter
  • High performance Enhanced stall stator
  • Great for street and towing applications
  • Lower rpm response than the stock converter
  • Furnaced brazed turbine fins for improved fluid coupling efficiency
  • Damper springs replaced
  • 11.625 inch dual-clutch
  • Billet forged front cover with thicker walls and stronger mounting pads

Notes

  • Remote filter required for inspection with a cooler flow rate in GPM at Oil/Air transmission cooler outlet
  • Special tuning required for 2019-up applications for increased line pressure

Installation

Warranty

    Parts Only - No Race abuse covered.

      Questions and Answers

      Previously asked questions

      We've compiled a list of questions and answers below.

      Don't see your question? Ask us anything about this product.

      Ask a Question
      • What hp this added What What max hp

        Stock Handling Capacity: ~350-400 HP. Upgraded Handling Capacity: Up to ~750 HP reliably. Performance depends on complementary mods and tuning.

      • about what hp are theses rated?

        This transmission package supports up to 750 RWHP.
