2019-2024 Cummins 6" Lift Kit w/ Radius Arms (BDS1736H)

Click Here to Customize this Kit

Fits

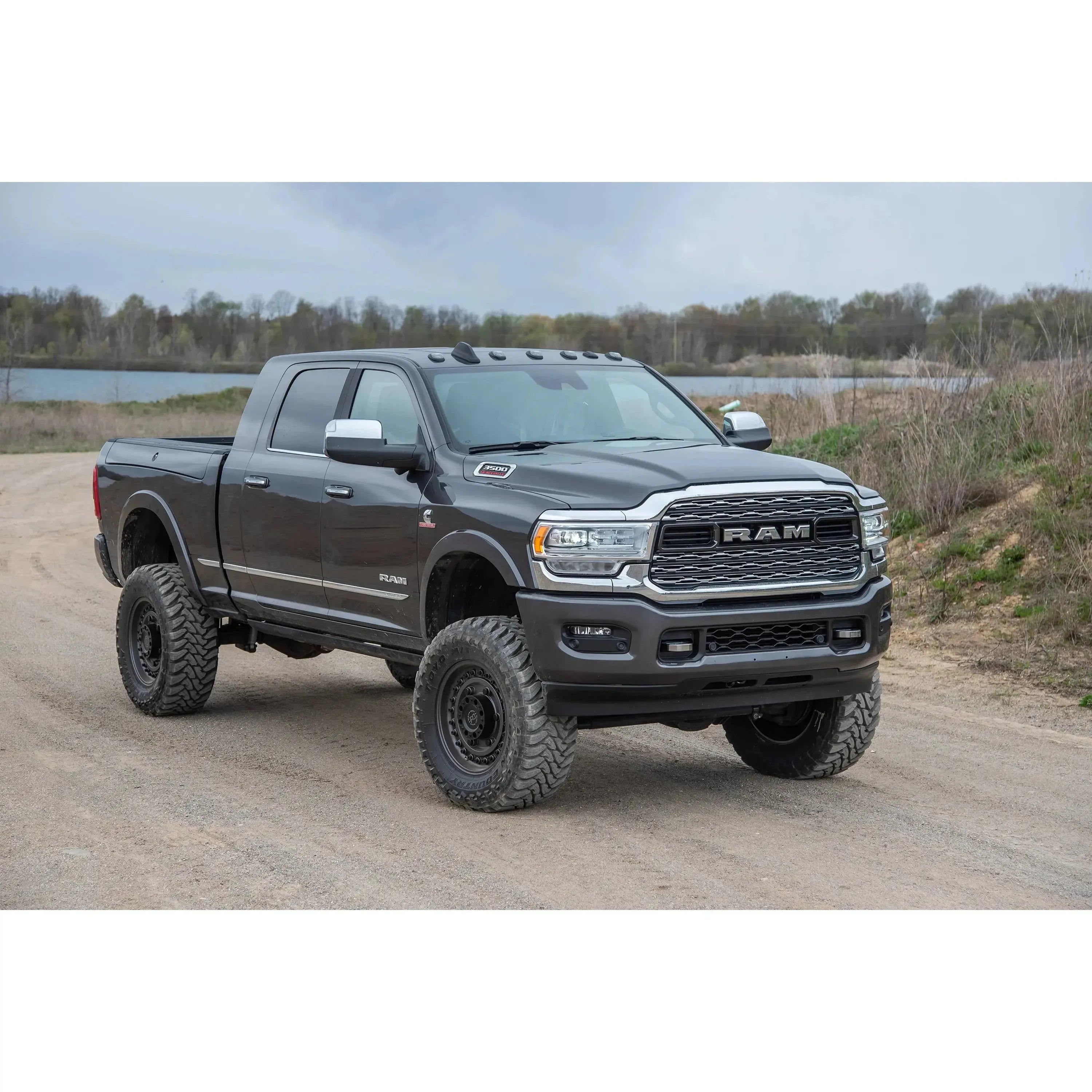

Designed & engineered to improve stance, performance, ride height & off-road capability, everything included in this kit will get your truck set up right. Featuring HD radius arms to replace the wimpy stamped steel arms, these mount to the factory location & offer caster adjustment for a wide range of lift heights and OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Part Number: BDS1736H

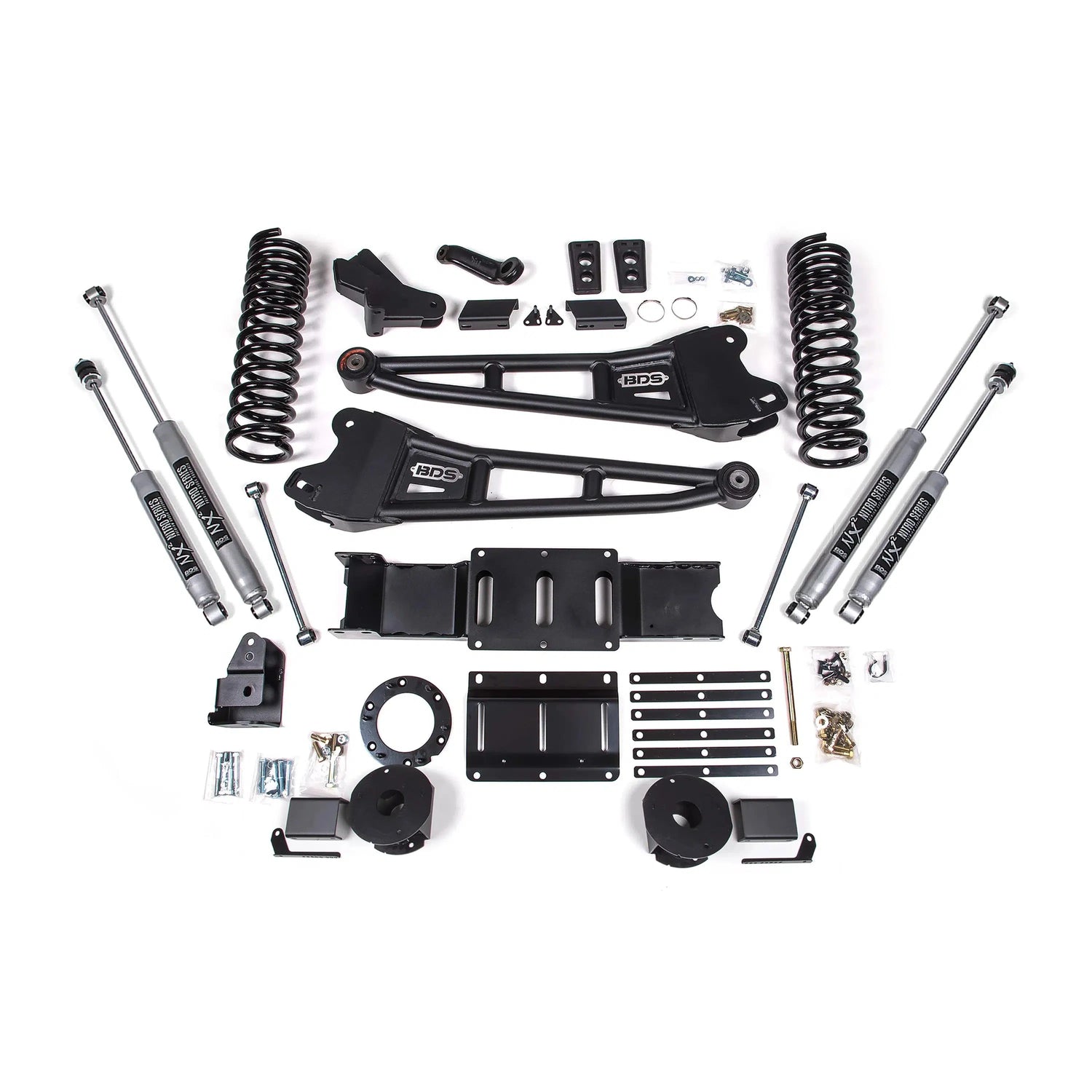

• HD 4-link arms improve strength, handling & caster control

• High-strength progressive rate coil springs for a great ride on any terrain

• Track bar relocation brackets to re-position the axle

• Forged drop pitman arm to correct steering angles

• Front sway bar correction to maintain handling performance

• HD transmission cross member and t-case indexing ring to correct front driveline angles and allow the use of factory driveshafts

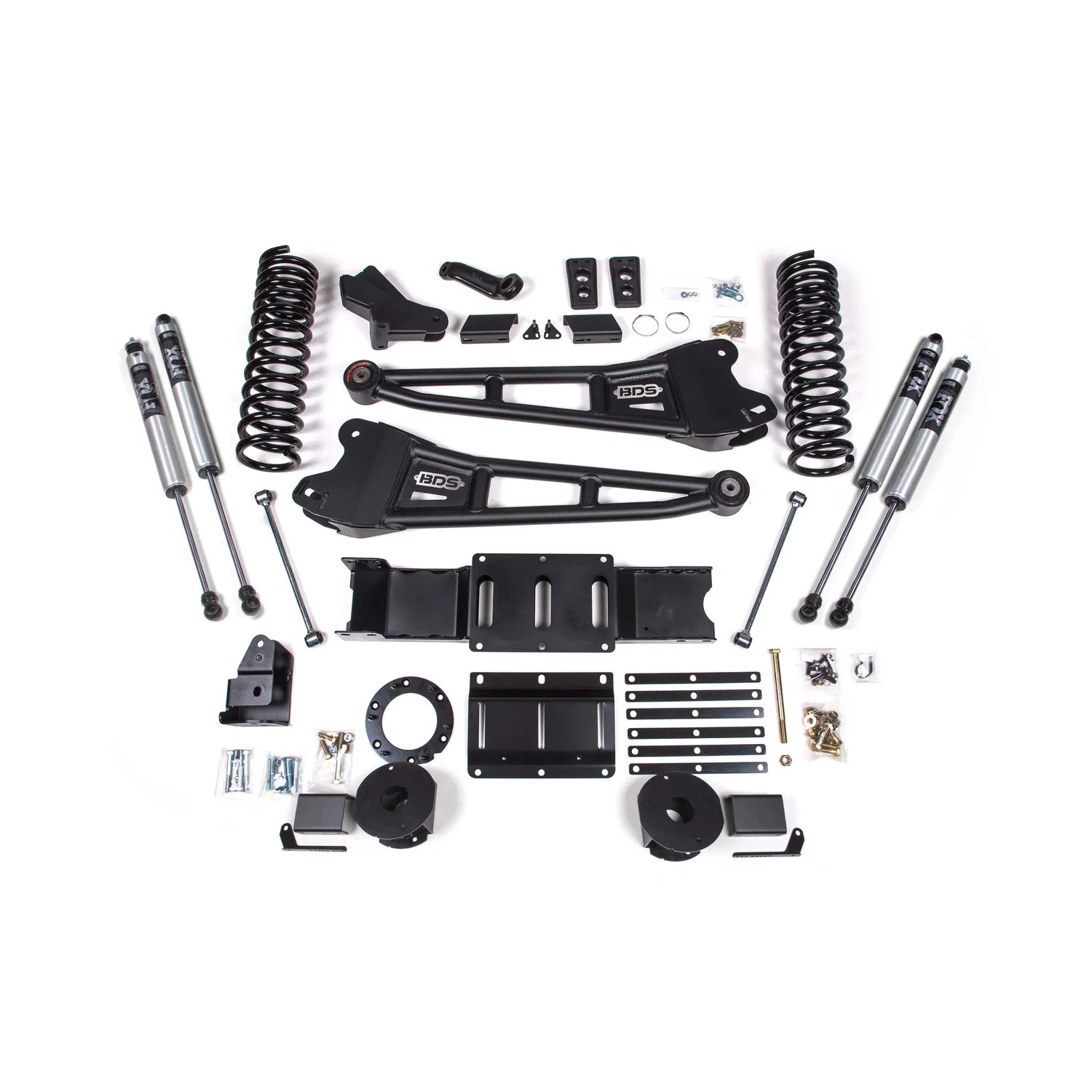

• BDS NX2 gas or FOX performance series IFP gas shocks to improve ride and offroad performance

Tire Fitment:

• 37 x 12.5 with 17 x 9 and 4.5 in. Backspace

• 37 x 13.5 with 20 x 9 and 5.625 in. Backspace
• Trimming may be required

• Fits OE equipped Air Ride systems only
• Will NOT fit 3500 models
• At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied.
