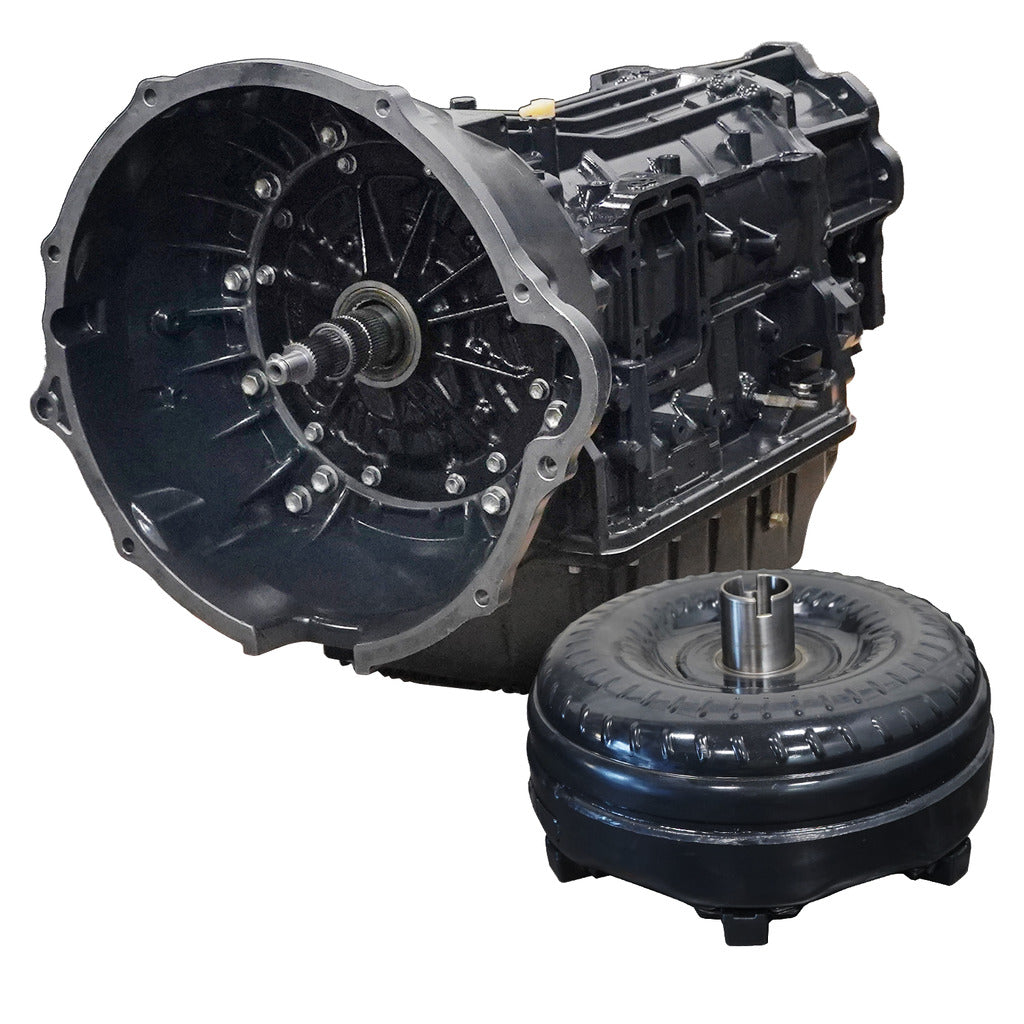

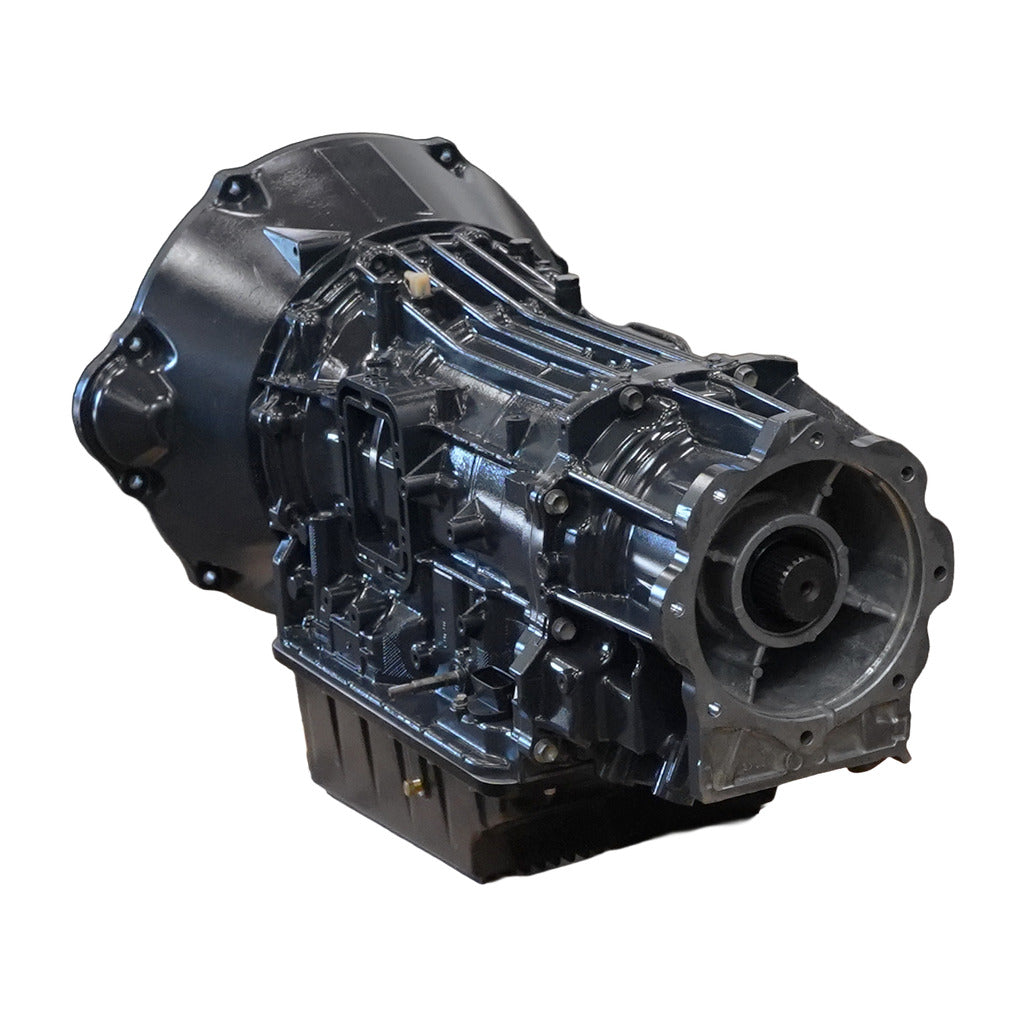

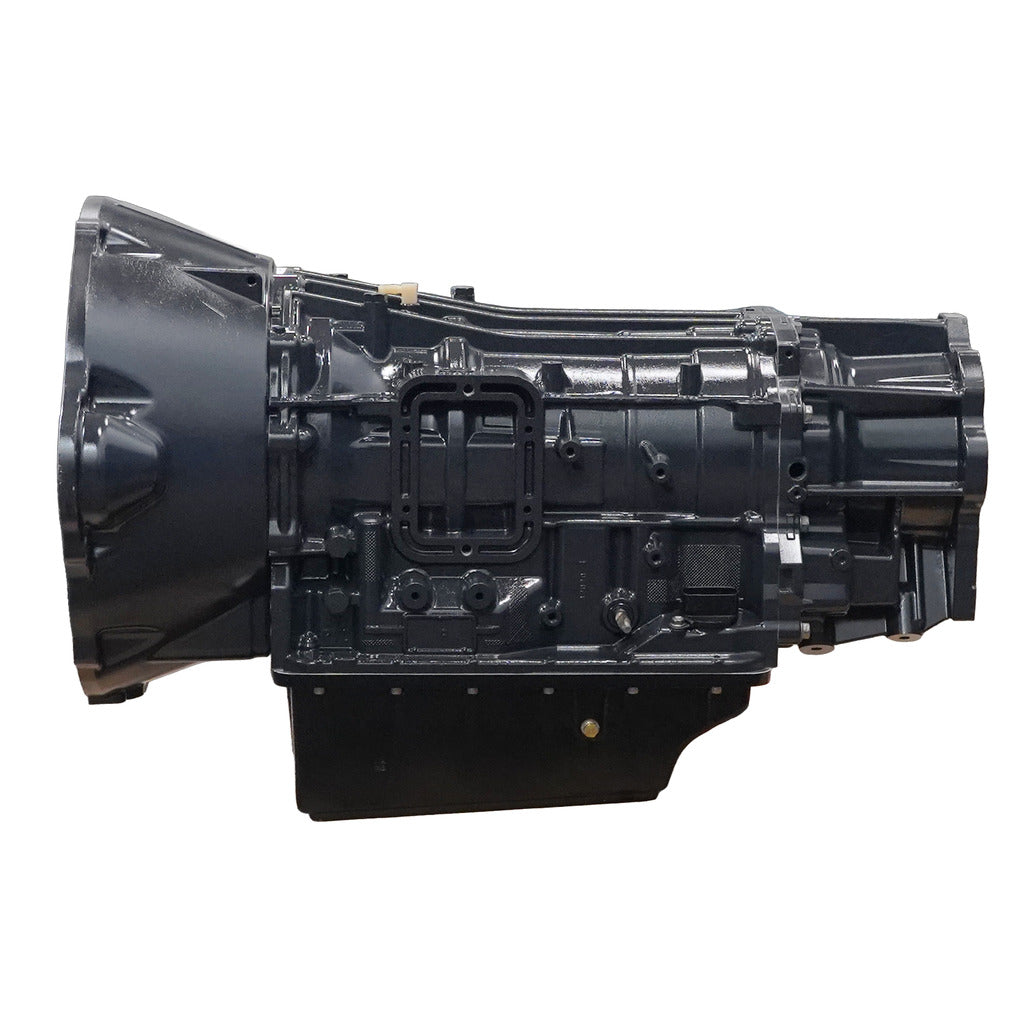

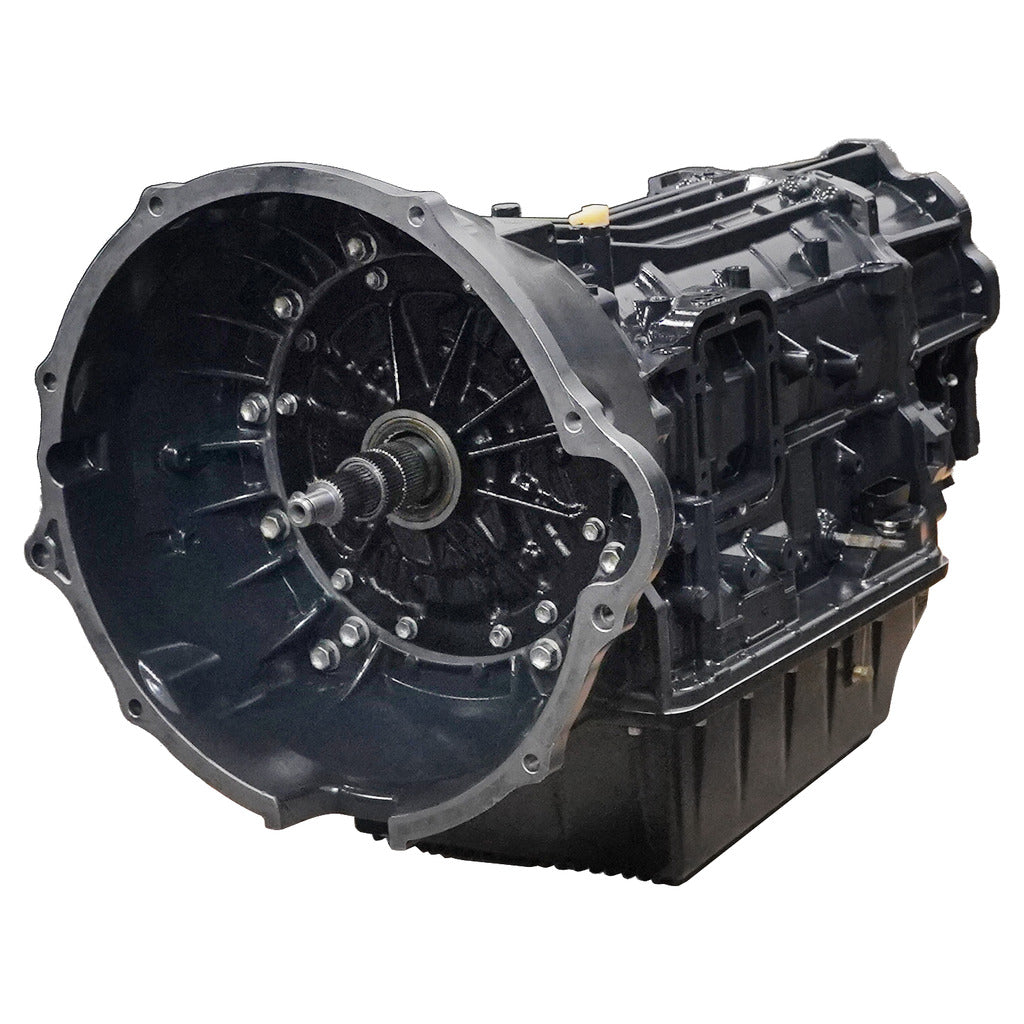

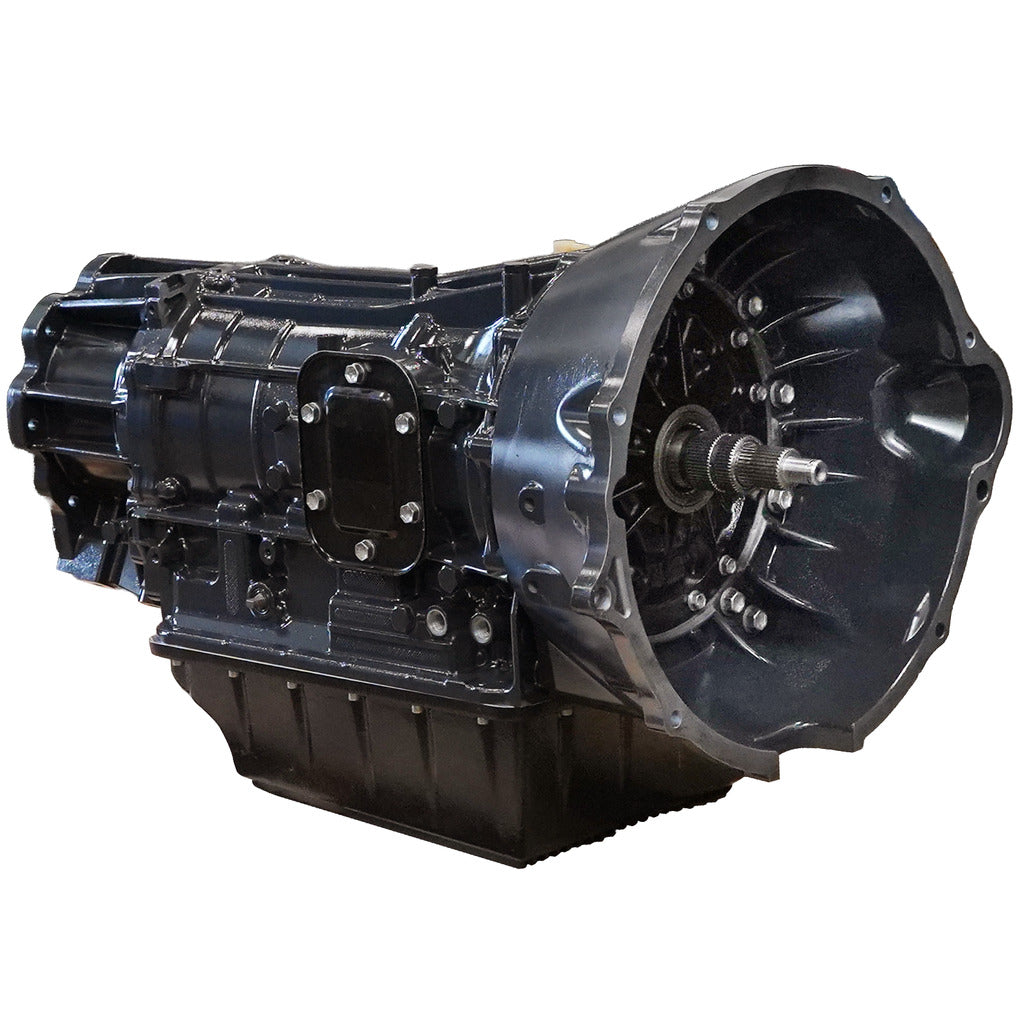

2019-2024 Cummins 4WD RH PTO Roadmaster Transmission & Converter Package AISIN AS69RC (1065004PTOSS)

BD Diesel
Regular price $9,230.00 CAD

Notices

This item may have additional freight costs. Learn More

This product will automatically bundle the following item:

Purchase to earn 9230  Dirty Dollars Learn More

Fitment

Year Make Model
2019-2024 Ram 3500 / 4500 / 5500 w/ 6.7L Cummins

Description

The 2019-2024 AS69RC is only found in the Ram 3500-5500 with the 6.7L diesel and is known to be a strong option in stock form. However, the AS69RC is susceptible to excessive spline wear on the K2 hub, which has been corrected with the BD custom nitride billet hub. The Roadmaster is designed to handle the output of the stock engine while mitigating the factory failure points, maintaining OEM shift quality through custom-selected frictions and an upgraded valve body.

Configuration: 4WD Right Hand PTO

Part Number: 1065004PTOSS

IMPORTANT: This variant is for trucks with a factory right-hand PTO provision. If your truck has a left-hand PTO, order the 2WD Left Hand PTO (special order) (1065032SS) instead. If your truck has no PTO provision, order the 4WD (no PTO provision) (1065004SS).

Other configurations in this tier:

Features

Transmission:

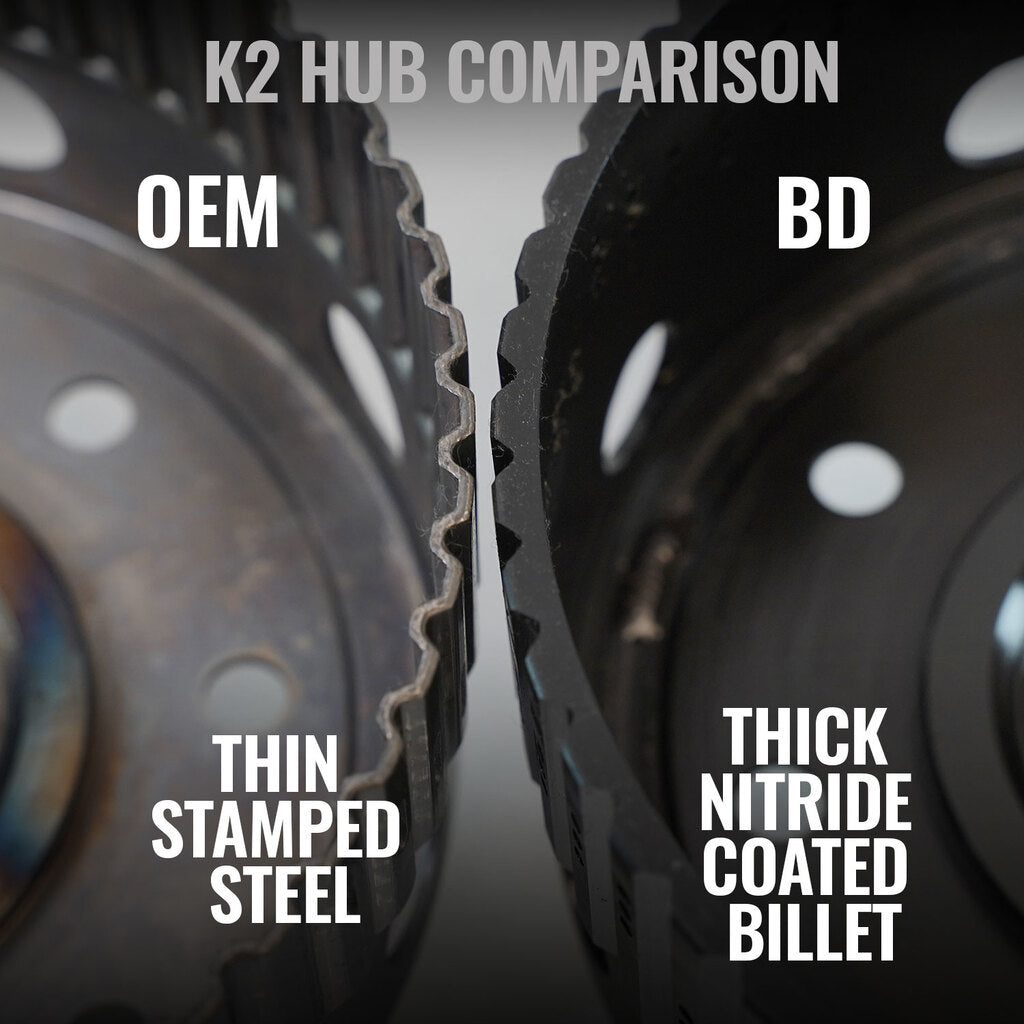

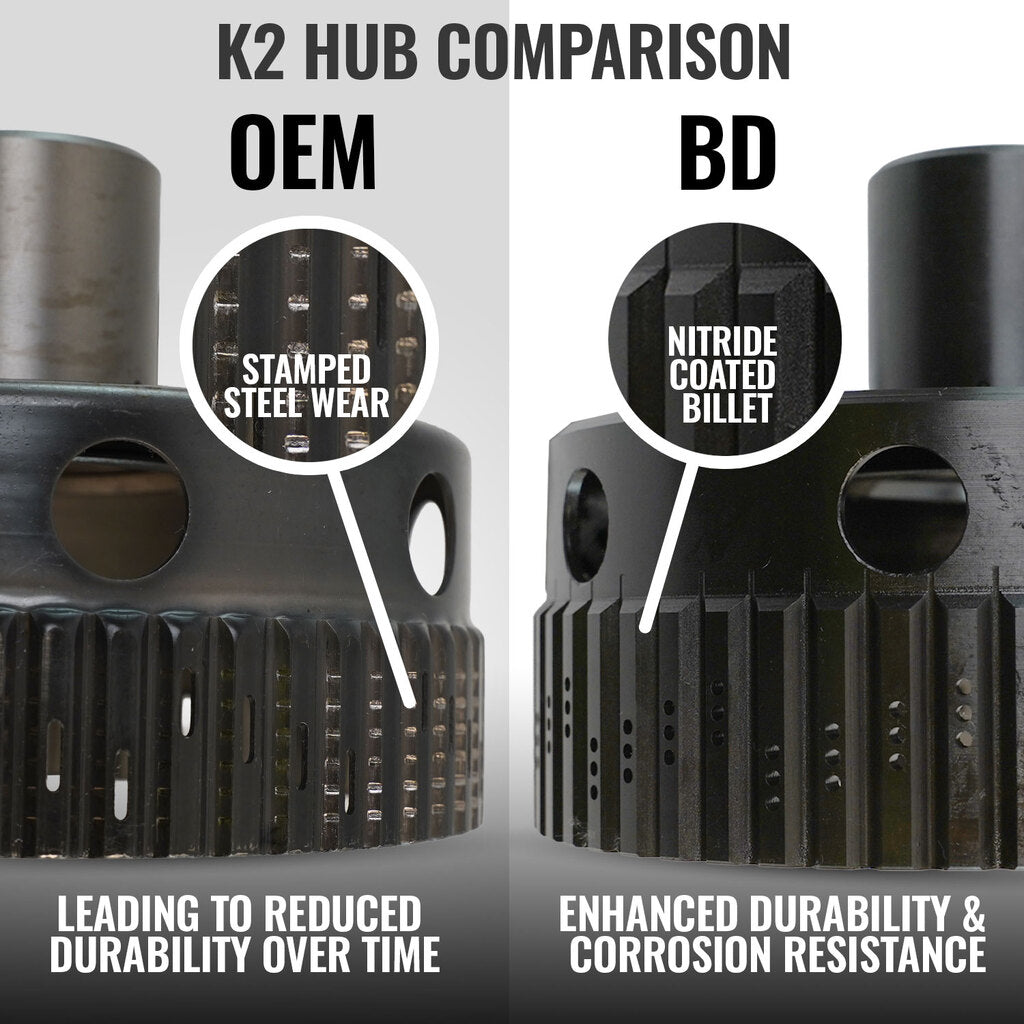

  • BD Billet nitride-coated K2 hub resolves the notorious clutch tooth wear issue on AS69RC transmissions

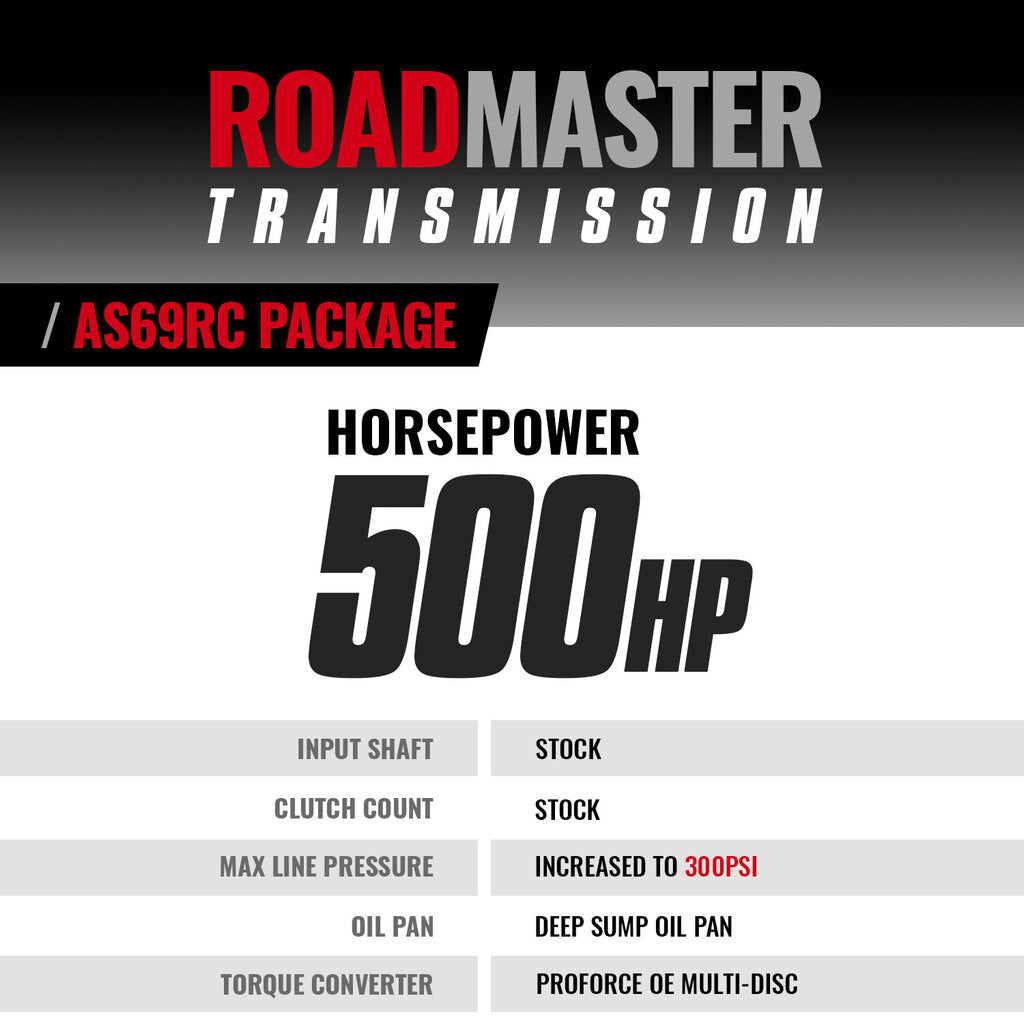

  • Increased valve body line pressure for increased clutch holding capacity
  • Custom-selected frictions maintain OEM shift quality unlike many other aftermarket offerings

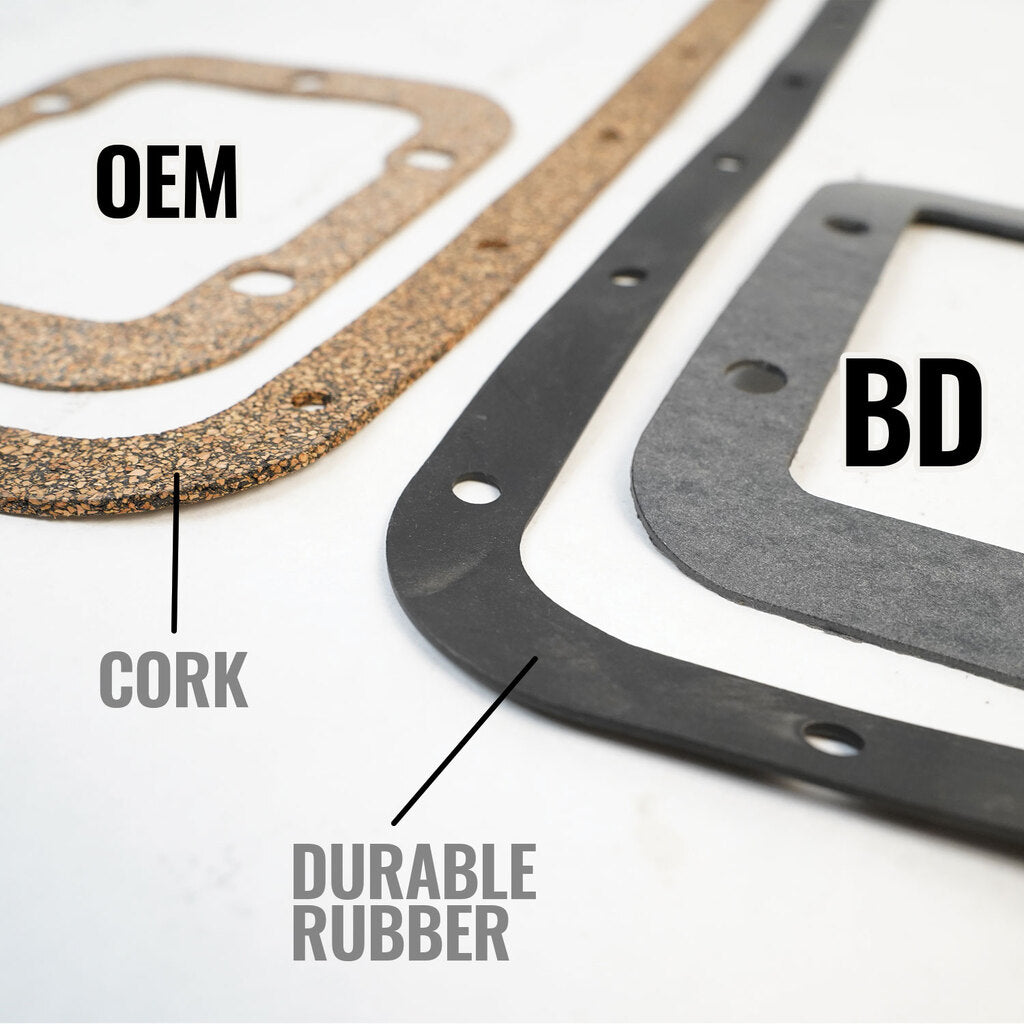

  • Nitrile pan and PTO gaskets prevent leaks common with OEM cork gaskets
  • Stock transmission clutch counts

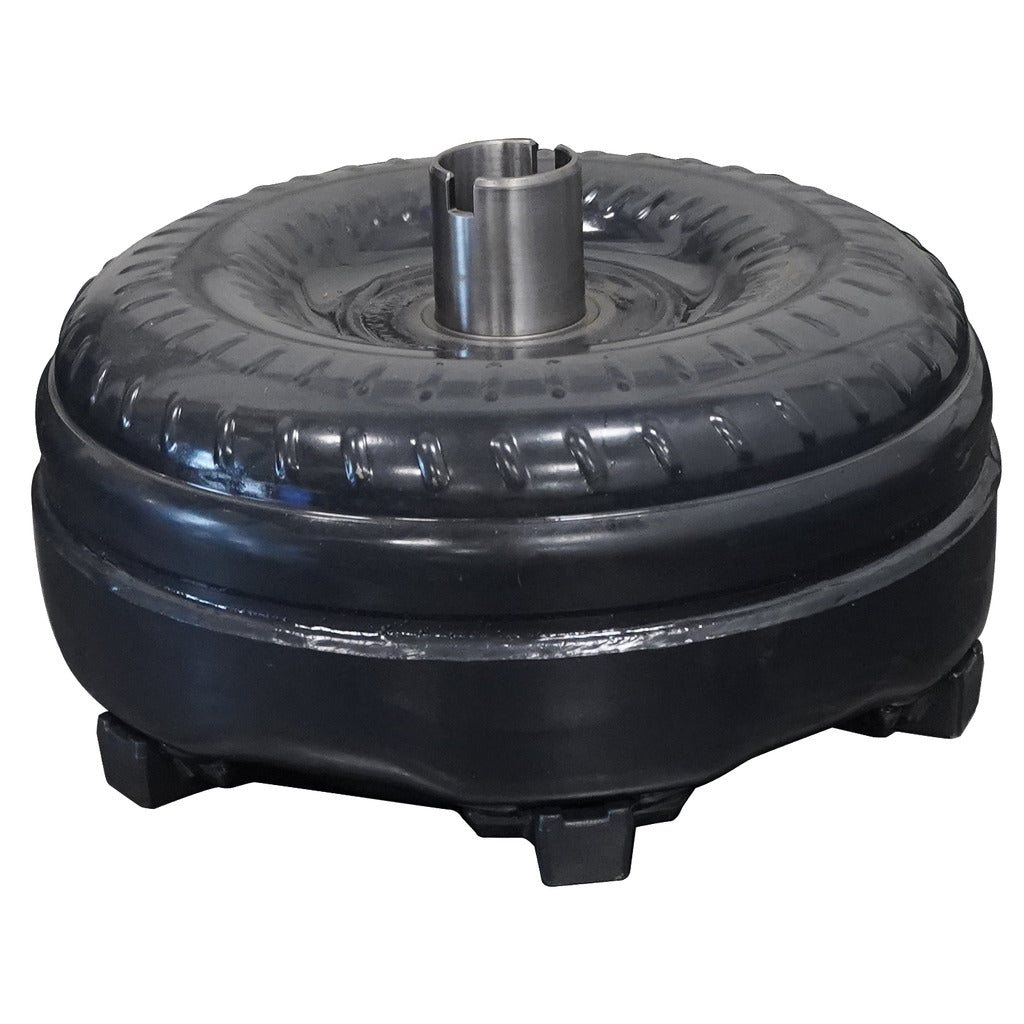

BD ProForce Torque Converter:

  • New Clutches for reliable, strong converter clutch apply (3 frictions and 3 steels)
  • New sprag for reliable stator operation
  • Cost-effective OEM-style replacement to accompany a transmission replacement

Specifications

  • Install Time: 8 Hours 30 Minutes
  • Warranty: 24 Months Parts / 12 Months Labor
  • Core Deposit: $3,500 CAD refundable (returned core required)

Replaces OEM Part Numbers

  • 4WD PTO: 68458821AA, 68533540AB
  • 4WD: 68498560AA, 68498560AB, 68452393AE, 68533456AA, 68533466AA, 68498557AA, 68498557AB, 68282715AE

Notes

  • Requires return of a rebuildable core ($3,500 CAD core deposit applies). Core must be returned within 30 days.
  • Freight charges apply; this item ships LTL.
