2019-2024 Cummins 2WD Towmaster Transmission & Converter Package AISIN AS69RC (1065012SS)

Name: 2019-2024 Cummins 2WD Towmaster Transmission & Converter Package AISIN AS69RC (1065012SS)
Brand: BD Diesel
SKU: 1065012SS
Price: 12070.00 CAD
Availability: OutOfStock

BD Diesel Part Number: 1065012SS

$12,070.00 CAD

Notices

This item may have additional freight costs. Learn More

This product will automatically bundle the following item:

Core Charges
After you have made your purchase, please follow the steps listed below to receive your refundable Core charge. This process must be completed within 60 days of receiving your product(s). Failure to send us the core(s) within the 60 day timeframe will result in you only receiving a partial refund amount of the core deposit.

1) On the outside of the ORIGINAL box, please write "Core Return" and your Original Invoice Number/Order Number.

2) Ship your core with tracking to:

Unit 6 - 1060 Stevens Road, West Kelowna BC Canada V1Z1A3

3) Once we receive the Core here at the shop, it will be inspected to ensure that it is rebuildable. After the inspection is passed, your core charge will then be refunded (giving you more money for truck parts!).

Note:

Dirty Diesel Customs does not cover return shipping costs for core items. You are responsible for all shipping expenses associated with returning their core.

If you have purchased a BD Diesel product, please follow their core-return program which can be found here.

If you have purchased a Fleece Performance product that has a core charge, please follow the Fleece Performance Core Return instructions found here.

If you have purchased a Randys Transmission product, we must receive the core no later than 30 Days after the product delivery date.

Failure to follow these steps may result in a delay/denial of your core refund.

Failure to send us the core(s) within the 60-day timeframe will result in you only receiving a partial refund amount of the core deposit.

0-60 Days: Full Deposit if the core passes the inspection.

61-120 Days: 25% of your eligible core refund amount will be deducted.

121-182 Days: 50% of your eligible core refund amount will be deducted.

183+ Days: Your Core Charge is no longer refundable

Let us know if you have any questions or concerns. We can be reached at 778-754-7090 or feel free to email sales@dirtydieselcustoms.com.

Purchase to earn 12070 Dirty Dollars Learn More

Truck Fitment

Fitment

Year	Make	Model
2019-2024	Ram	3500 / 4500 / 5500 w/ 6.7L Cummins

Description

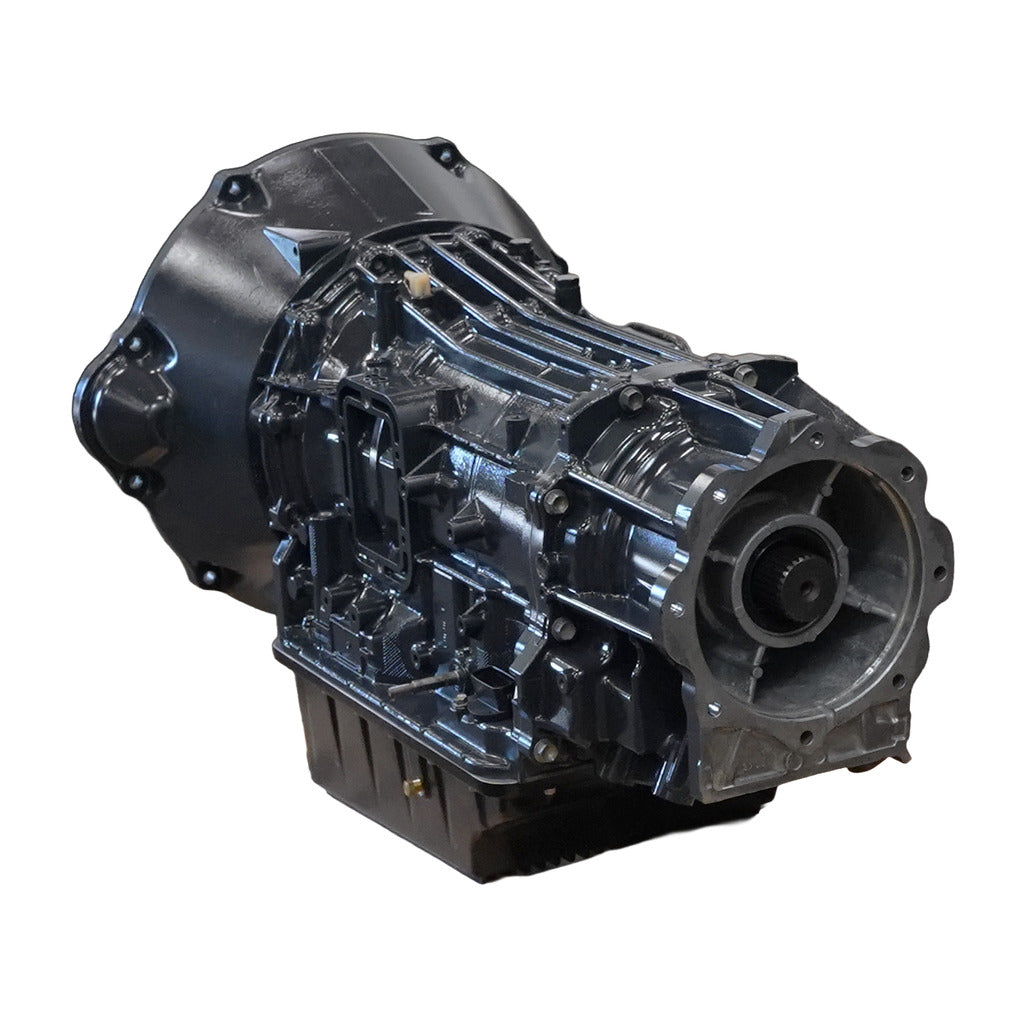

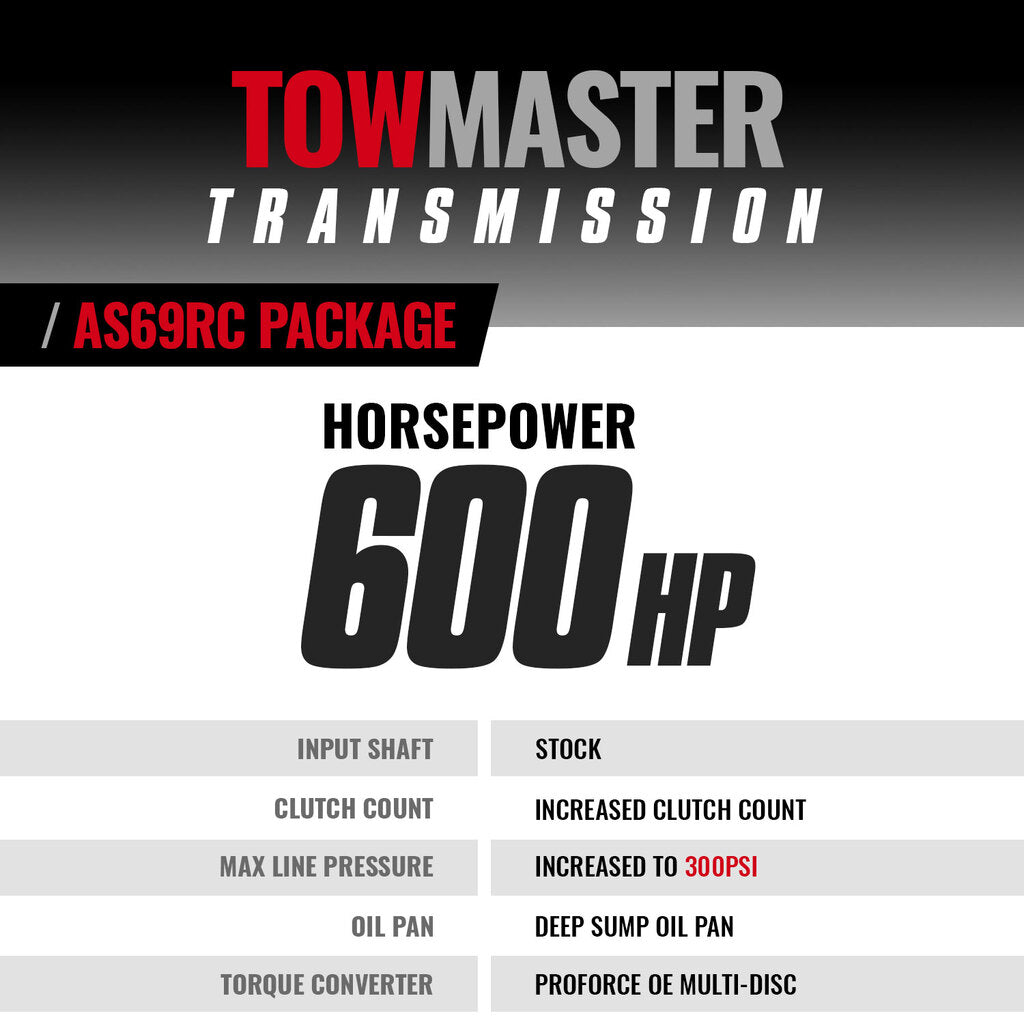

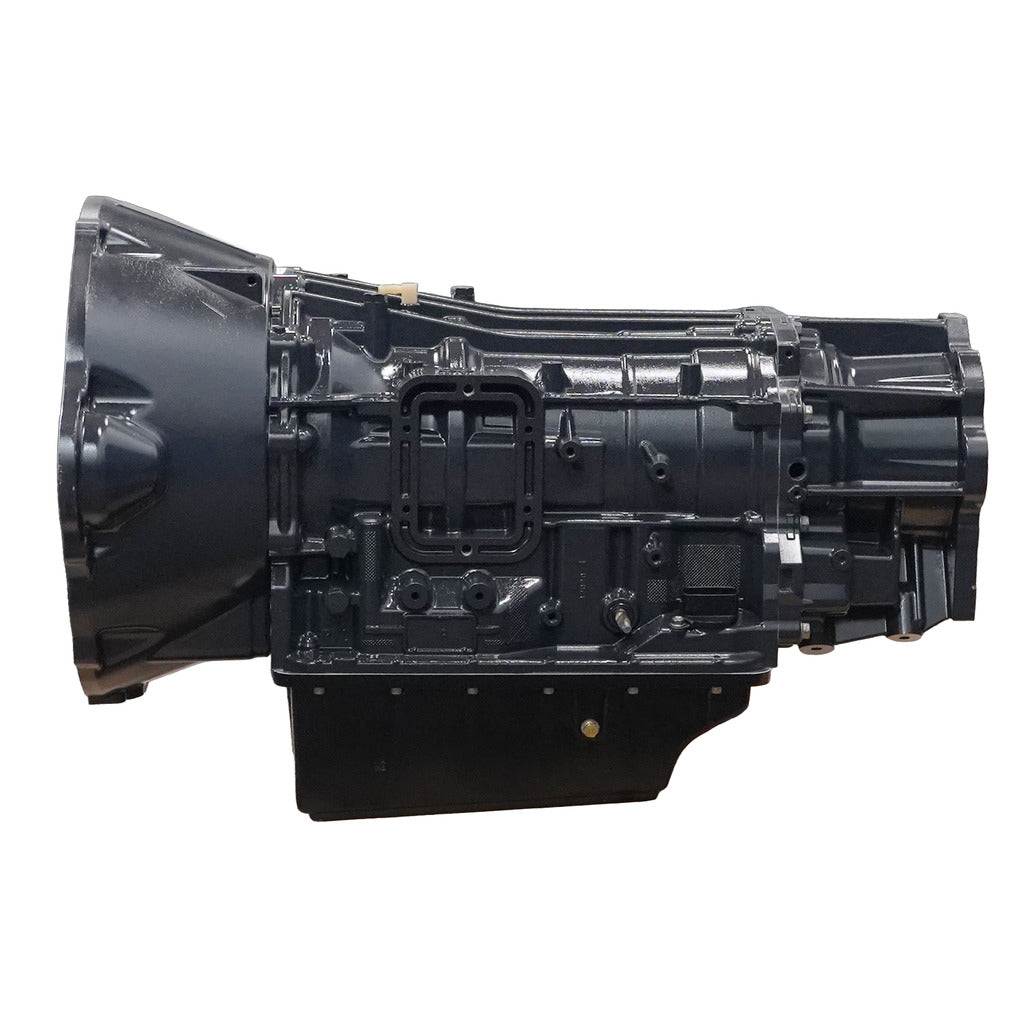

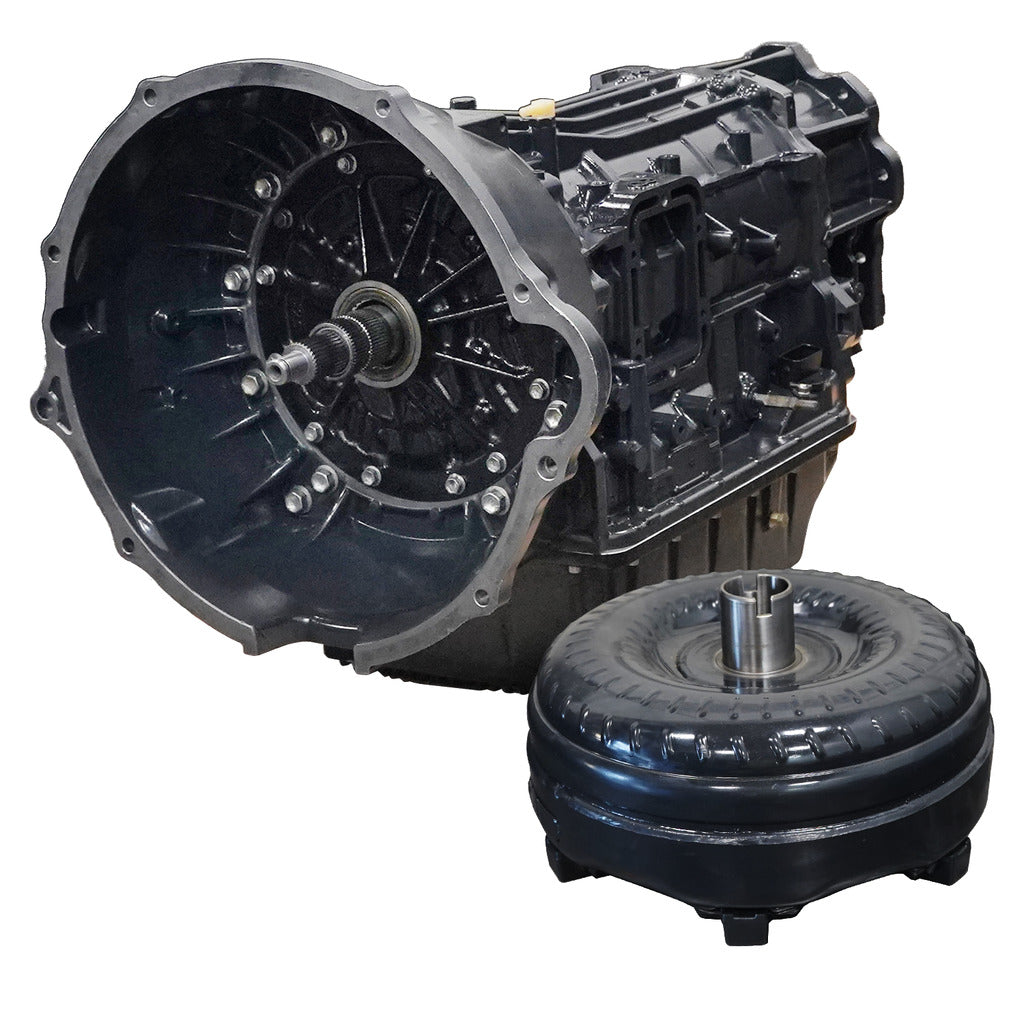

The 2019-2024 AS69RC is only found in the Ram 3500-5500 with the 6.7L diesel; many of these trucks are modified and therefore require a performance transmission to help deliver this power to the road. The Towmaster steps up from the Roadmaster with a nitride billet K2 hub, billet K3 drum, and increased friction counts across multiple clutch packs. Factory cork gaskets are replaced with improved nitrile gaskets, and the package includes a BD ProForce torque converter.

Configuration: 2WD (no PTO provision)

Part Number: 1065012SS

IMPORTANT: This variant is for 2WD trucks without a factory PTO provision. If your truck has a right-hand PTO, order the 2WD Right Hand PTO (1065012PTOSS) instead. For left-hand PTO, order the 2WD Left Hand PTO (special order) (1065042SS).

Other configurations in this tier:

Features

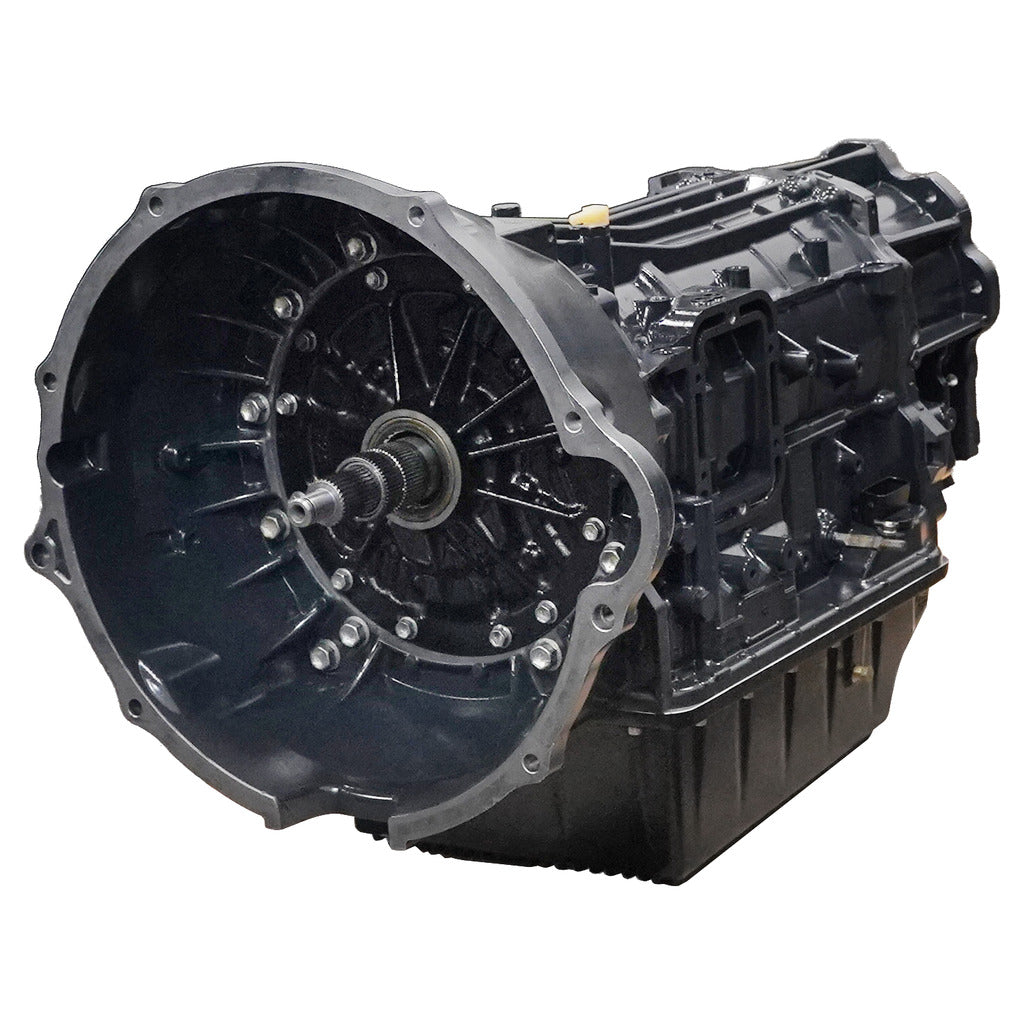

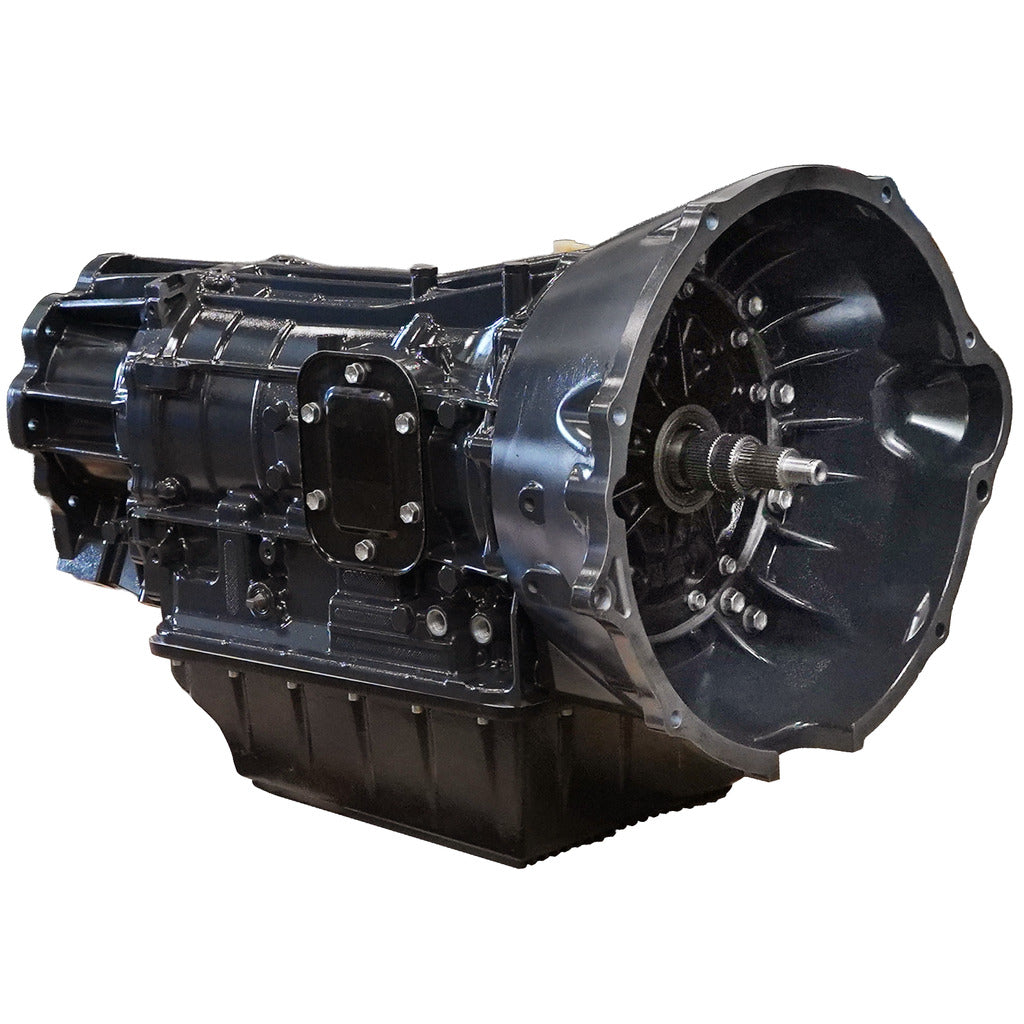

Transmission:

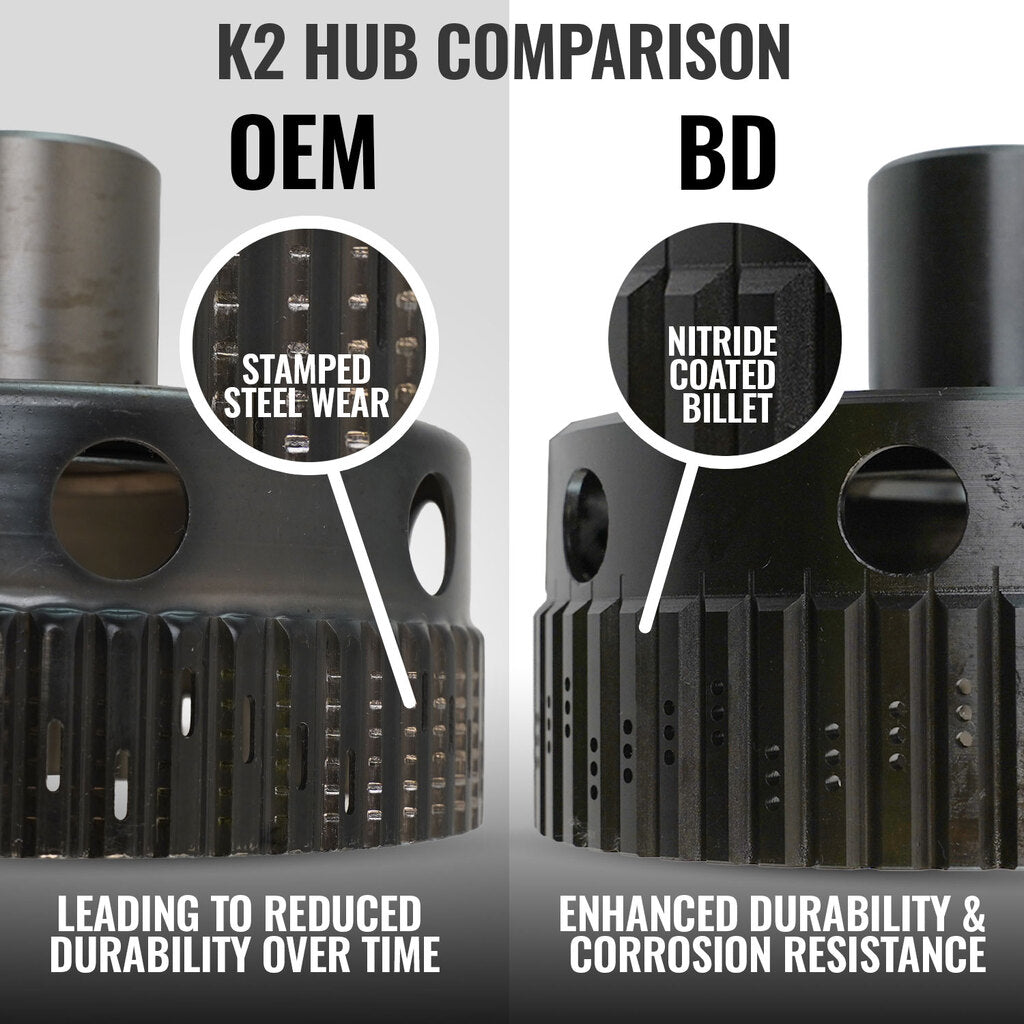

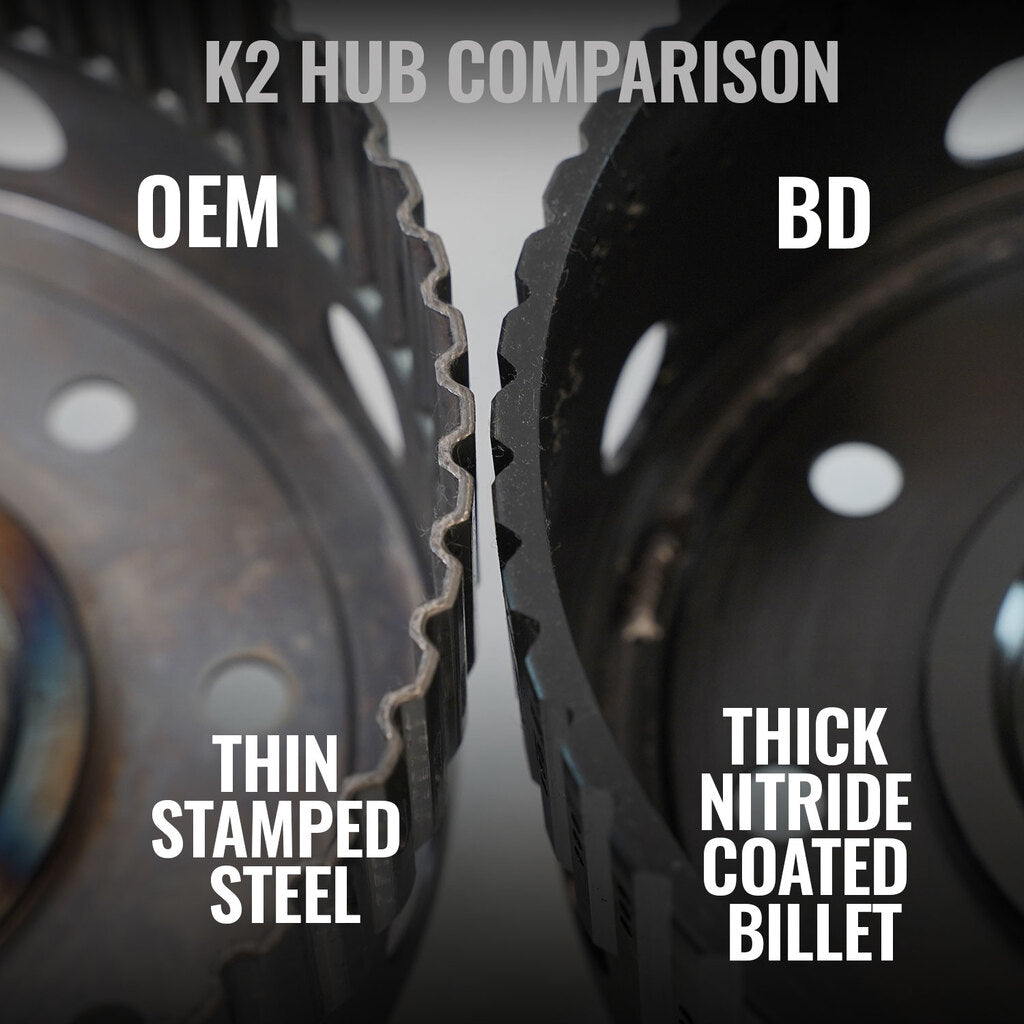

BD exclusive billet nitride-coated K2 hub resolves the notorious clutch tooth wear issue on AS69RC transmissions

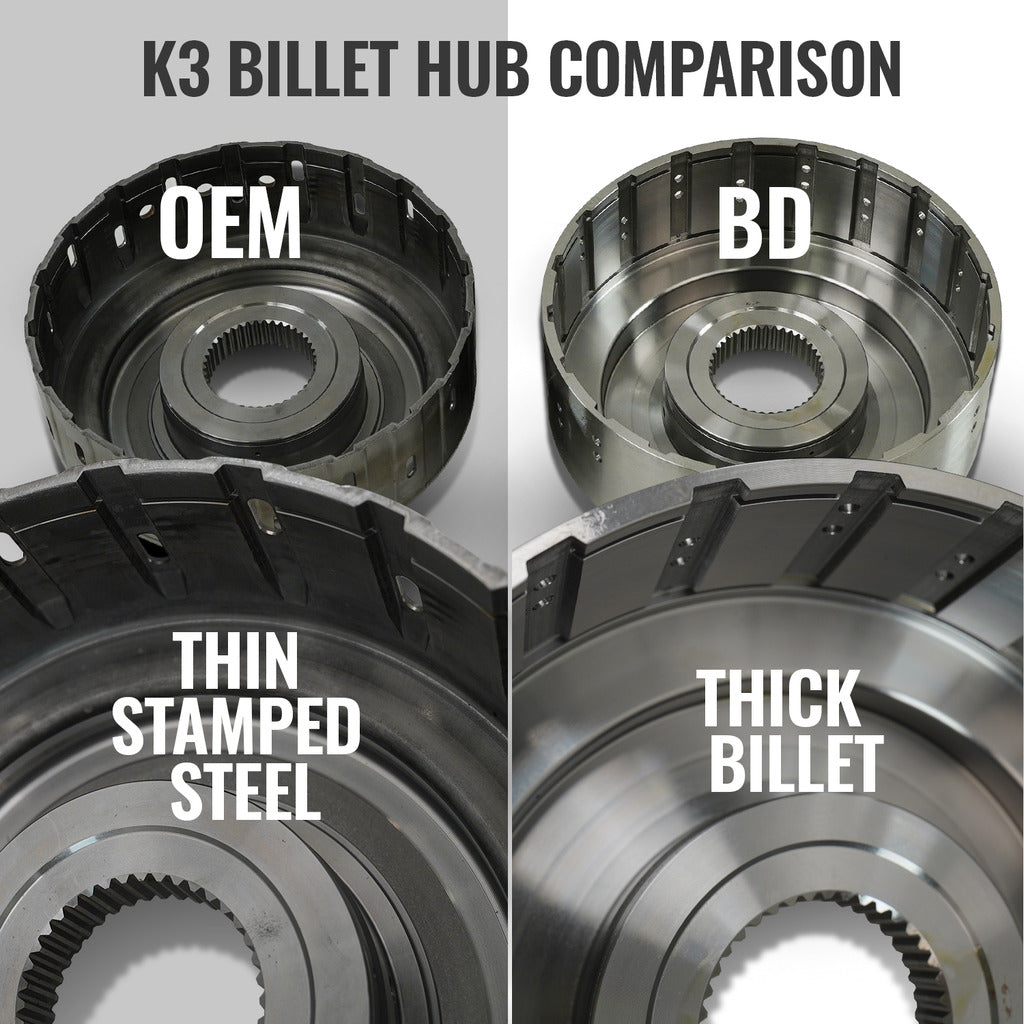

Billet K3 drum increases clutch capacity, rigidity, and resists ring groove failure
More clutches compared to stock and competitors for increased torque capacity and durability
Clutch Count K1: 7

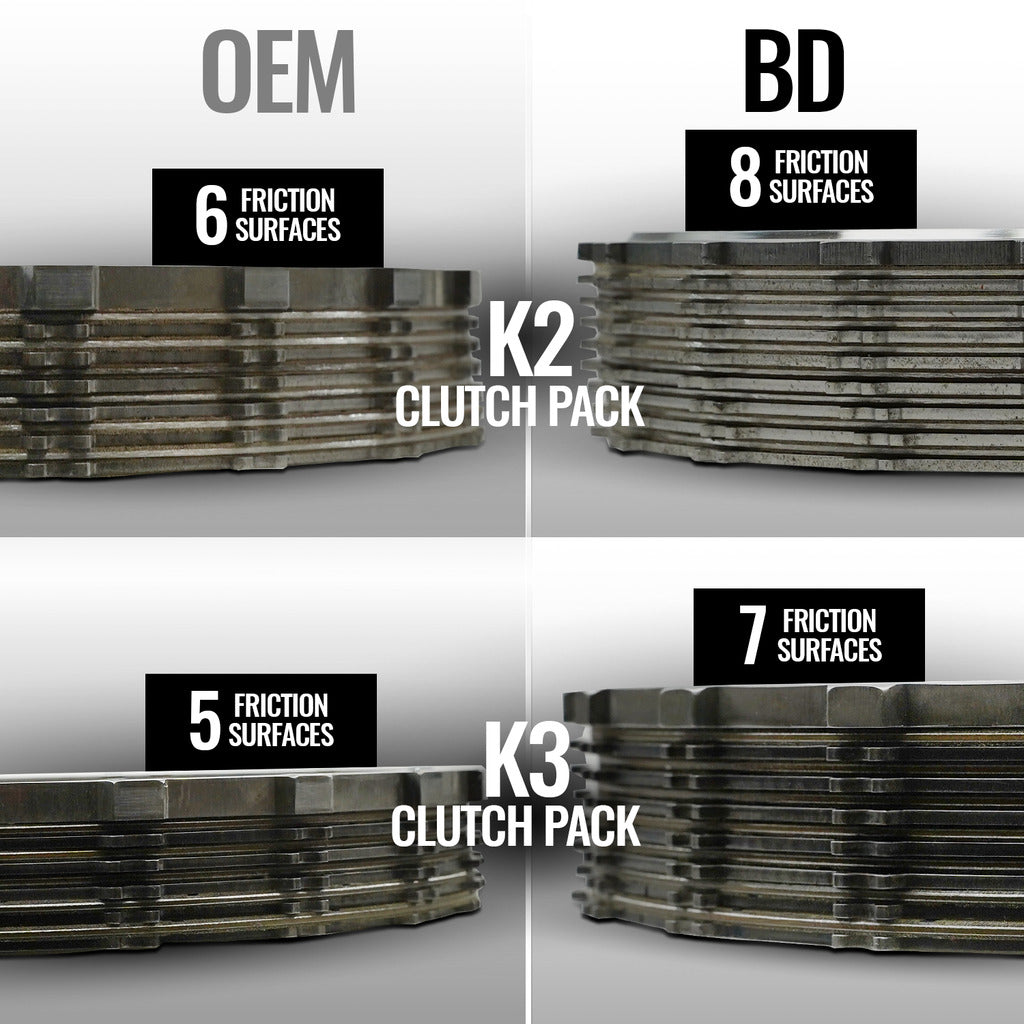

Clutch Count K2: 8 (33% increase over stock)
Clutch Count K3: 7 (40% increase over stock)
Clutch Count B1: 6 (20% increase over stock)
Clutch Count B2: 9
Increased valve body line pressure for increased clutch holding capacity

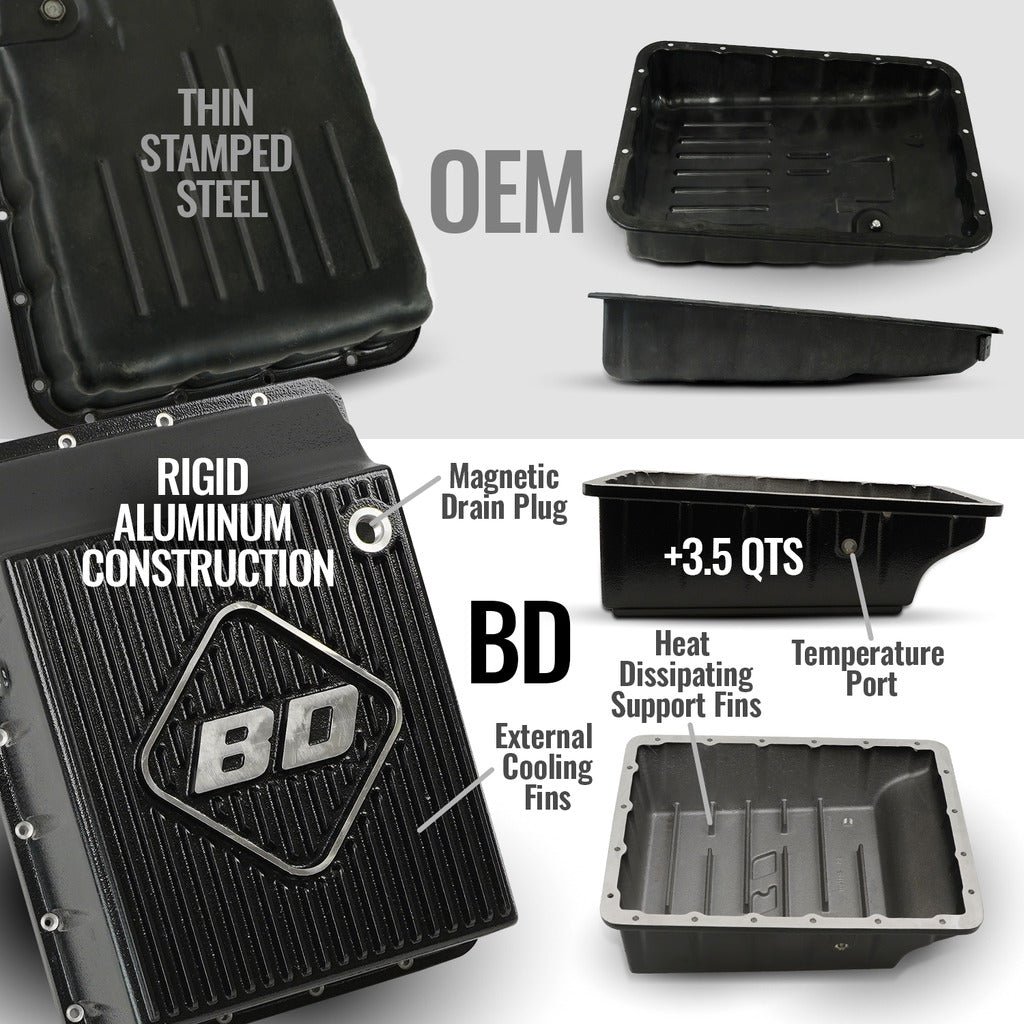

BD deep sump pan increases fluid capacity by 3.5 qts for better fluid life and cooling

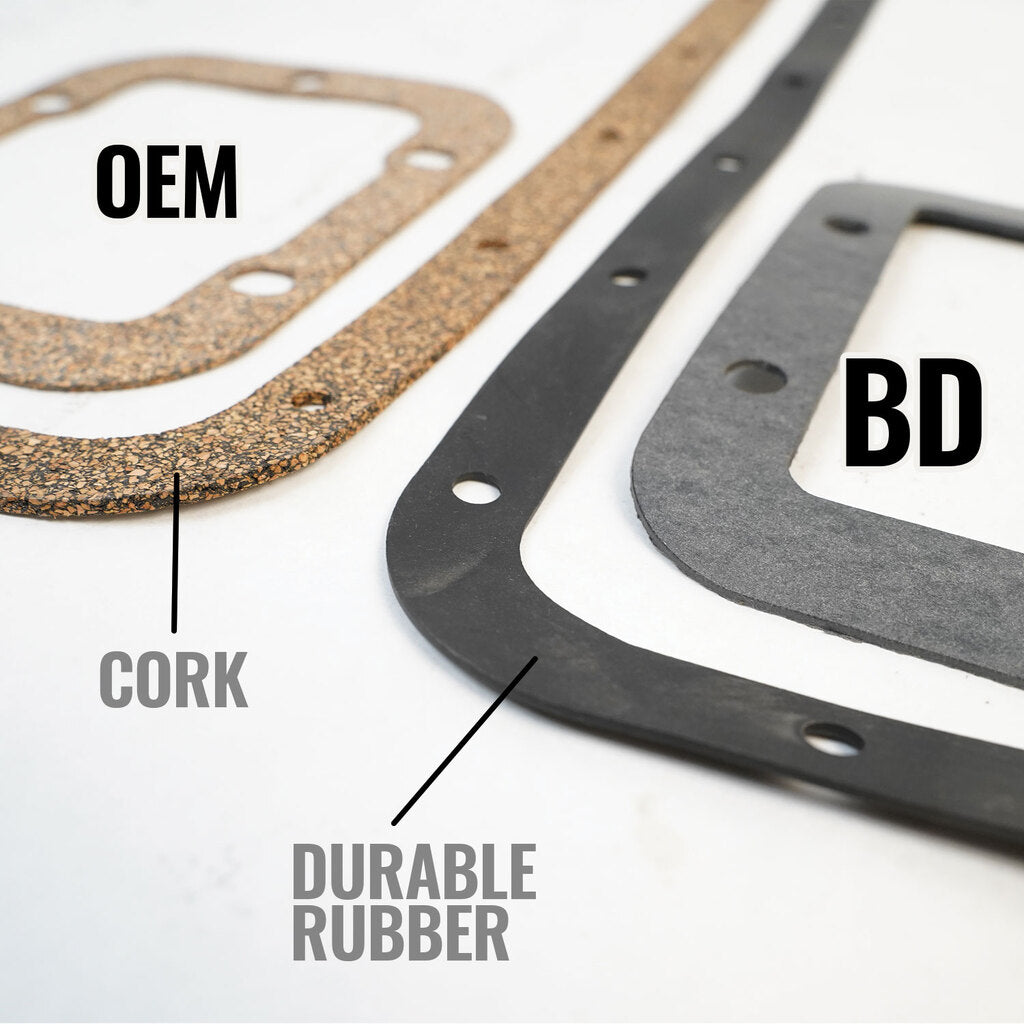

Nitrile pan and PTO gaskets prevent leaks common with OEM cork gaskets

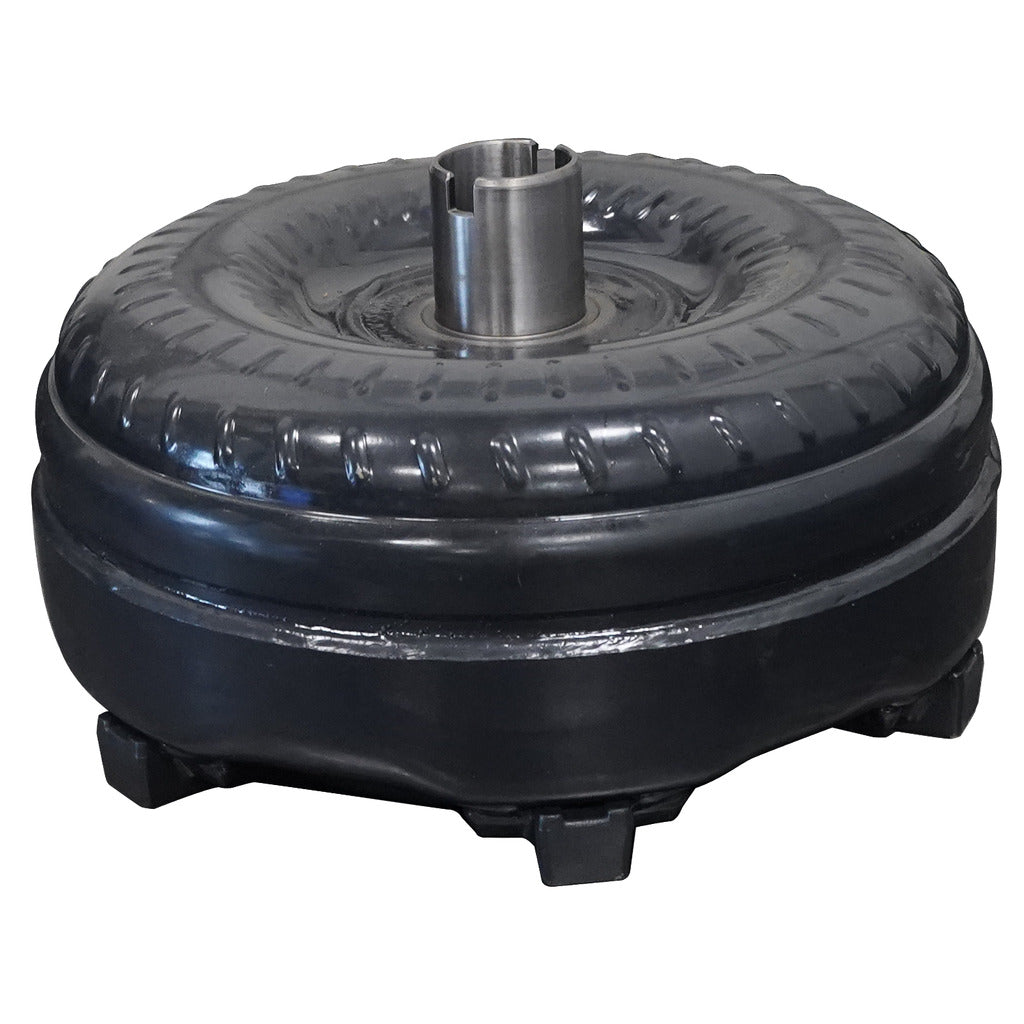

BD ProForce Torque Converter:

New Clutches for reliable, strong converter clutch apply (3 frictions and 3 steels)
New sprag for reliable stator operation
Cost-effective OEM replacement to accompany a transmission replacement

Specifications

Install Time: 8 Hours 30 Minutes
Warranty: 36 Months Parts / 12 Months Labor
Core Deposit: $3,500 CAD refundable (returned core required)

Replaces OEM Part Numbers

2WD: 68533455AB, 68452394AE, 68452392AE, 68533457AB, 68533467AA, 68452714AE

Notes

Requires return of a rebuildable core ($3,500 CAD core deposit applies). Core must be returned within 30 days.
Freight charges apply; this item ships LTL.
