2019-2024 Cummins 2500 4" Lift Kit w/ Radius Arms (BDS1714FS)

Click here to Customize this Lift Kit

Fits

Note: Fits OE equipped air ride Systems only

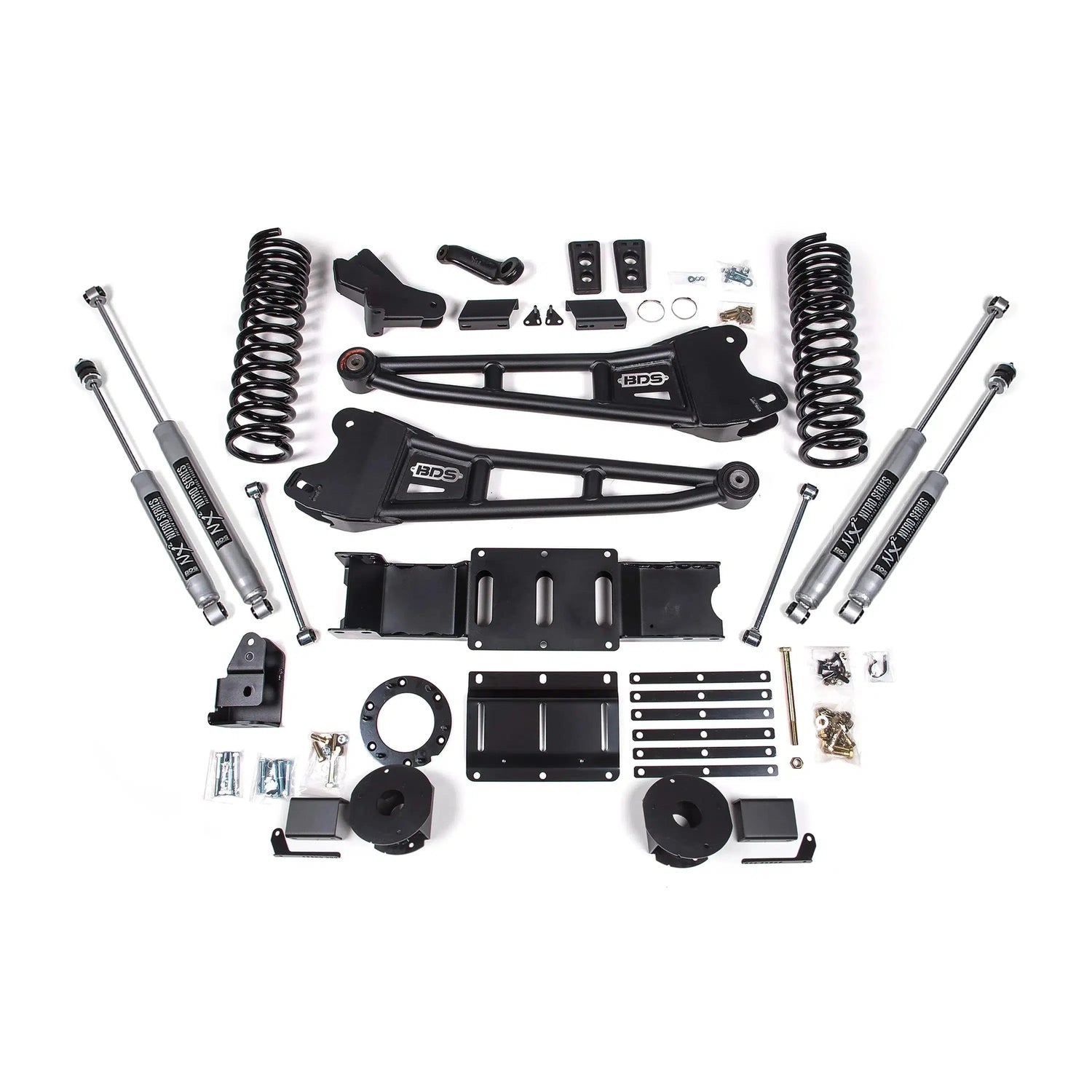

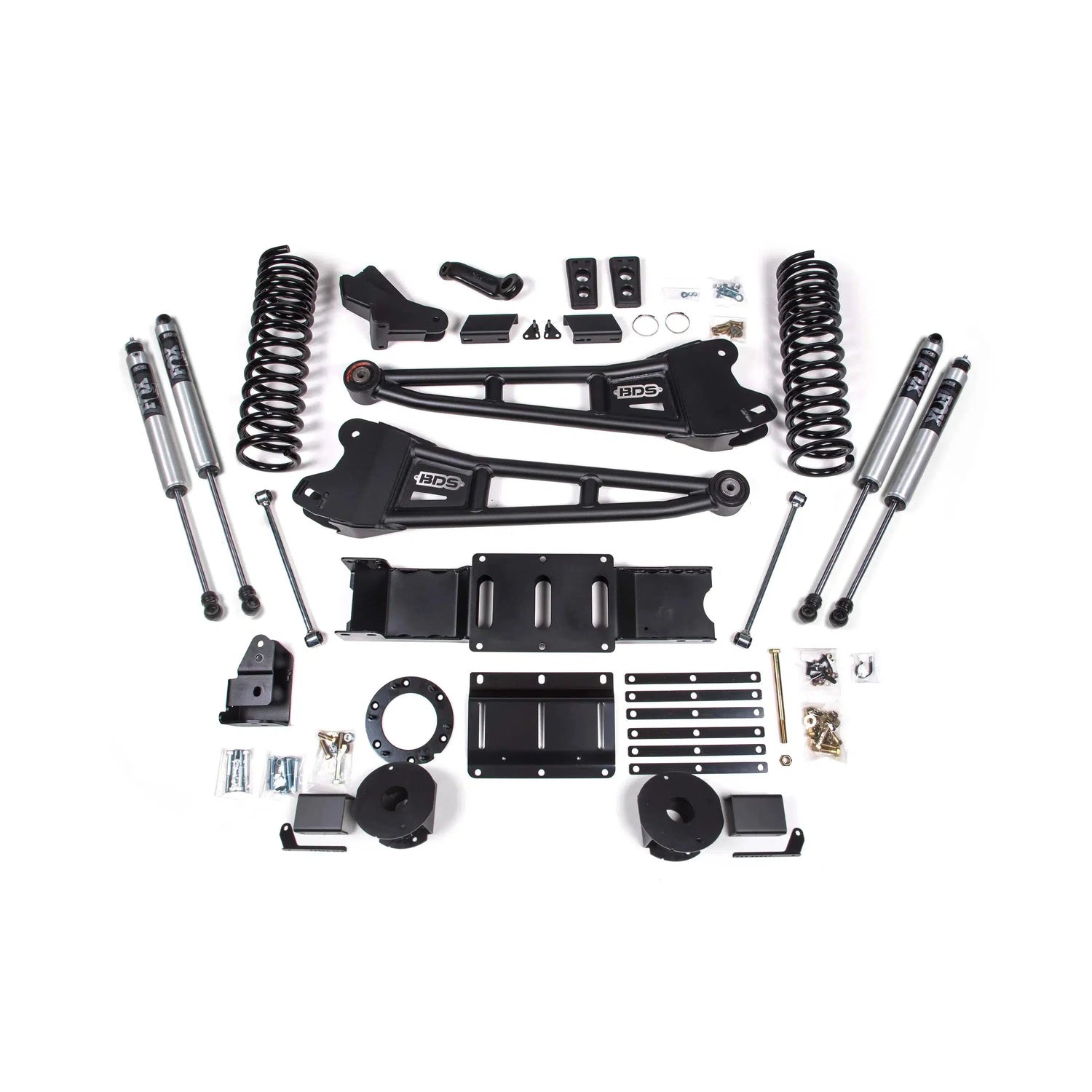

Fully compatible with factory air-ride-equipped trucks, this 4" radius arm lift features Pro-Ride coil springs, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and precision-tuned NX2 or FOX 2.0 shocks; everything to need to get increased ground clearance, improve stance, performance and off-road capability.

Part Number: BDS1714FS

• HD tubular radius arms improve strength, handling & caster control
• High strength progressive rate coil springs for a great ride on any terrain
• Track bar relocation brackets to re-position the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow the use of factory driveshafts
• BDS NX2 gas or FOX performance series IFP gas shocks to improve ride and offroad performance

Wheel and Tire Fitment:

• 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5.625 in. Backspace

• Pitman arm puller is needed
