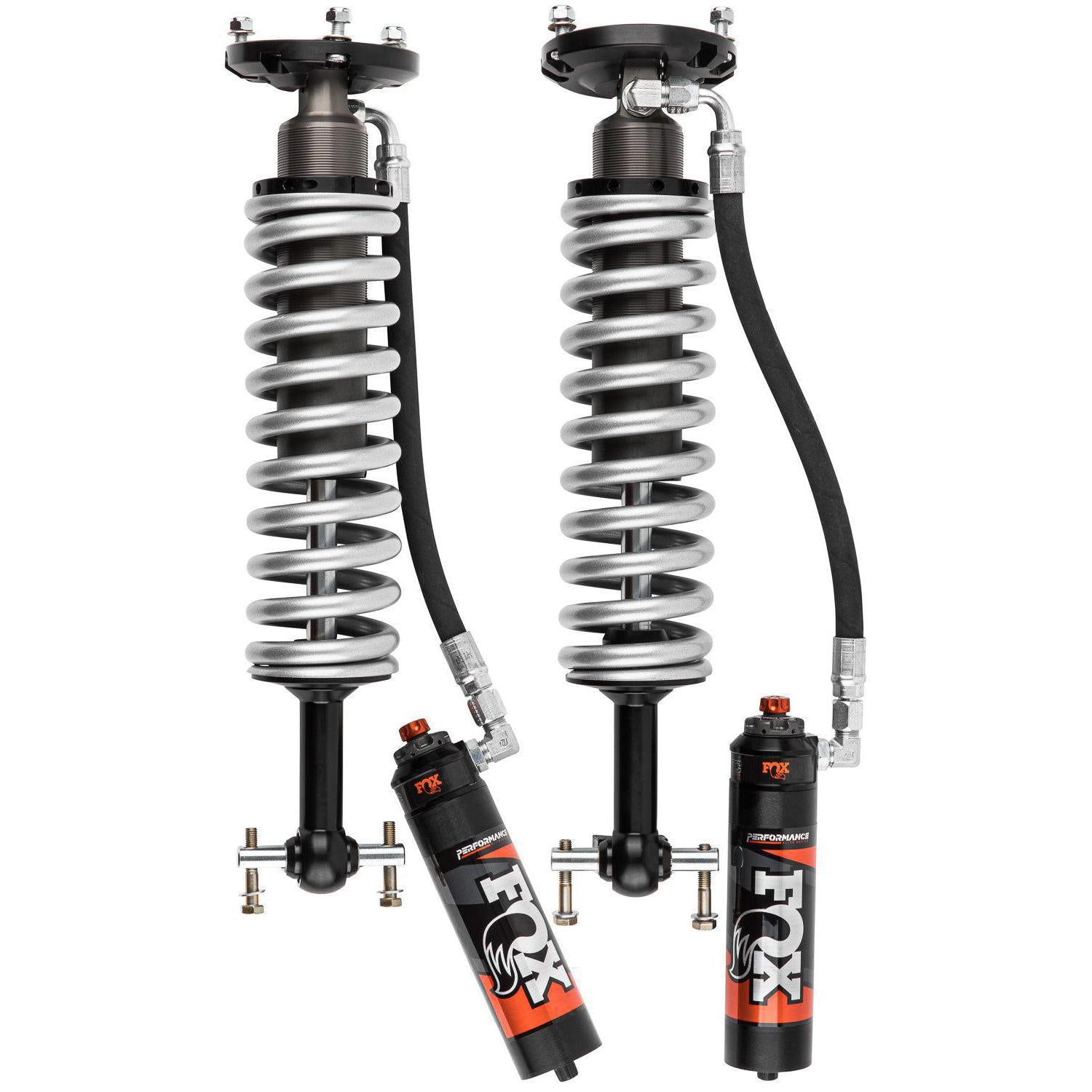

2019-2023 Ranger 2.5 Elite Series 2-3" Lift Front R/R Coilover (883-06-156)

Fits

Note: Fits U.S. Models Only

Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and comes pre-set to level your vehicle right out of the box. Experience the incredible performance and precise control that Performance Elite Series Coil-over Reservoir shocks deliver.

Part Number: 883-06-156

• Durable Zinc Plated Seamless Alloy Body
• External Reservoir System Dissipates Heat Fast

• Body Plating Hard-anodized for a durable finish
• Black-anodized CNC-machined 6061-T6 billet aluminum
• 7/8" hard chrome plated steel Shafts
• 6061-T6 hard-anodized, high flow aluminum Piston
• Application specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• PTFE-lined, heat-treated, alloy steel spherical bearings

Specs:

• Extended Length: 19.91"
• Compressed Length: 15.94"
• Top Mount: TM
• Bottom Mount: Bar Pin
• Travel: 3.97"
• Front Lift Height: 2-3"
