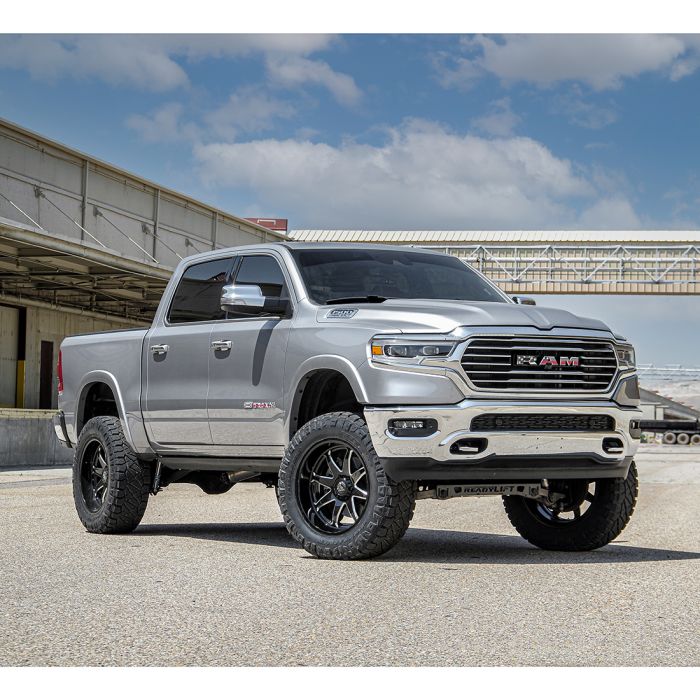

2019-2024 Ram 1500 6" Lift Kit w/ Factory Air Suspension (44-19620)

Fits

Note: NOT compatible with standard suspension or non-air ride suspension equipped models

Specially engineered for the Rams with factory air ride and those massive 22" wheels. ReadyLift has dedicated copious amounts of time and testing to ensure you get a kit that looks great, lasts long, and exceeds performance expectations on any terrain. Featuring dual-rate rear coil springs and rear control arm brackets that minimize small bump sensitivity and increase mid-stroke support. HD steel front cross-members and differential drop brackets retain factory geometry, ride quality, and handling while providing proper differential rotation to ensure there is no driveline vibration when in 4WD or Auto-4HI.

Part Number: 44-19620/ 44-19621

• Rear control arm brackets combined to better capture small bump sensitivity and mid-stroke support
• HD steel front cross-members and differential drops retain factory geometry
• Provides proper differential rotation to ensure there is no driveline vibration
• Maintains factory ride quality and handling

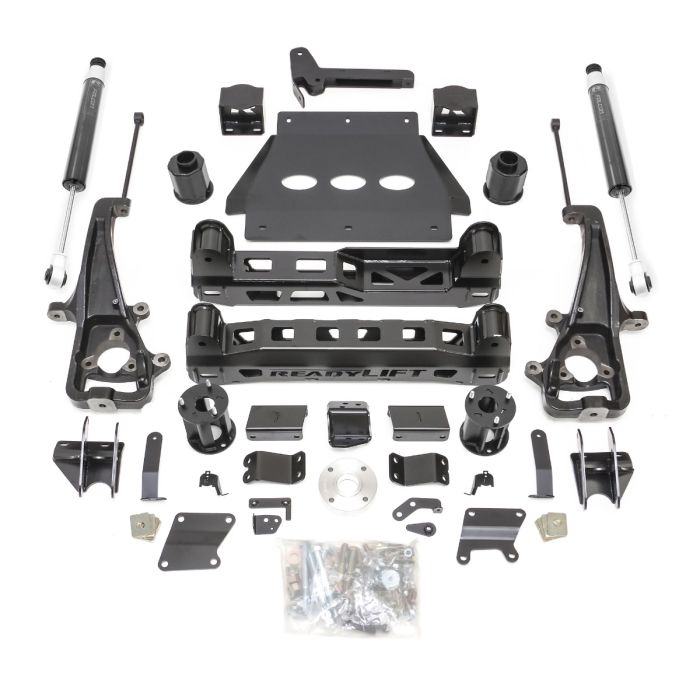

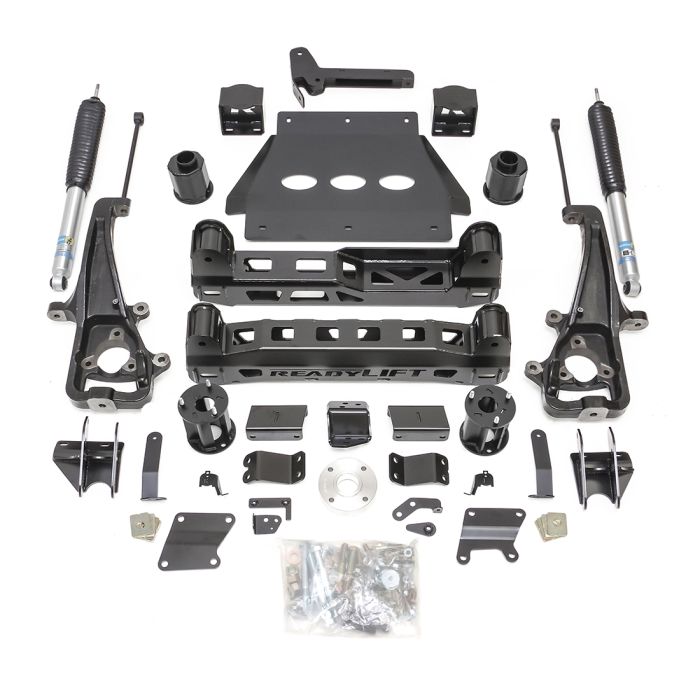

Includes:

• (2) crossmembers
• (2) Cast iron knuckles
• (4) Top mount air strut extensions
• (2) Bilstein 5100 or Falcon 1.1 shocks
• (1) Rear panhard bar bracket
• (2) Sway bar end links
• (1) Skid plate
• All necessary hardware and brackets

Tire Fitment:

• 44-19620 6" Big Lift Kit - Recommended max tire with no trimming: 20x9 0 offset - 37x12.50 tire
• Max with trimming: 20x10 -18 offset - 37x12.50
• For use on Ram 1500 with factory air ride
• Not for use with 18" wheels
• Trimming requirements for larger than recommended wheel/tire include front valance, front felt liner edge, rear felt liner edge, and front rear well edge mud flap

• This kit is for the RAM 1500 with factory air ride
• Does not work with the 3.0-liter twin-turbo inline-six Hurricane engine ( available in some late 2024 models).
• Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT
• This kit is NOT compatible with standard suspension or non-air ride suspension equipped models, diesel engine applications, Rebel Air Ride, or Ram TRX
