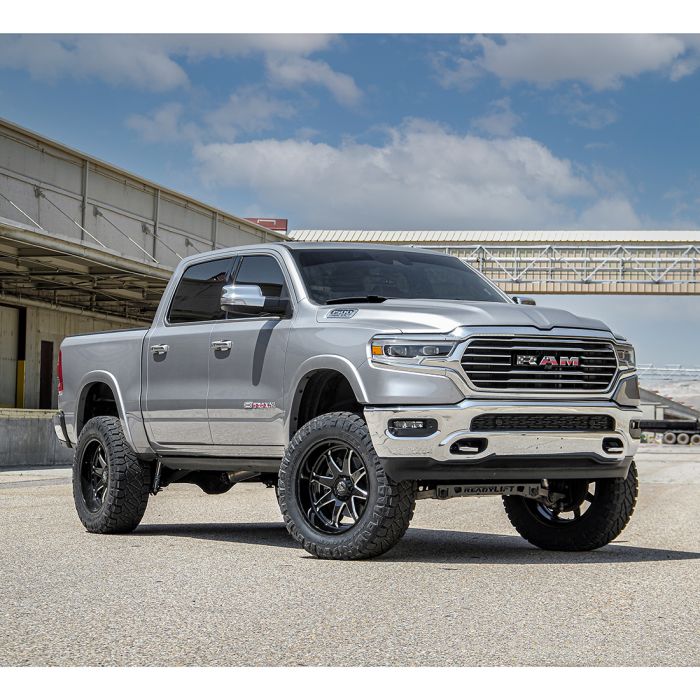

2019-2024 Ram 1500 6" Lift Kit w/ Big Bore Knuckle (44-19622)

Fits

Note: Cannot use 18" wheels with this application.

Specially engineered for the Rams with factory air ride and those massive 22" wheels. ReadyLift has dedicated copious amounts of time and testing to ensure you get a kit that looks great, lasts long, and exceeds performance expectations on any terrain. Featuring dual-rate rear coil springs and rear control arm brackets that minimize small bump sensitivity and increase mid-stroke support. HD steel front cross-members and differential drop brackets retain factory geometry, ride quality, and handling while providing proper differential rotation to ensure there is no driveline vibration when in 4WD or Auto-4HI.

Part Number: 44-19622/ 44-19623

• Rear control arm brackets combined to better capture small bump sensitivity and mid-stroke support
• HD steel front cross-members and differential drops retain factory geometry
• Provides proper differential rotation to ensure there is no driveline vibration
• Maintains factory ride quality and handling

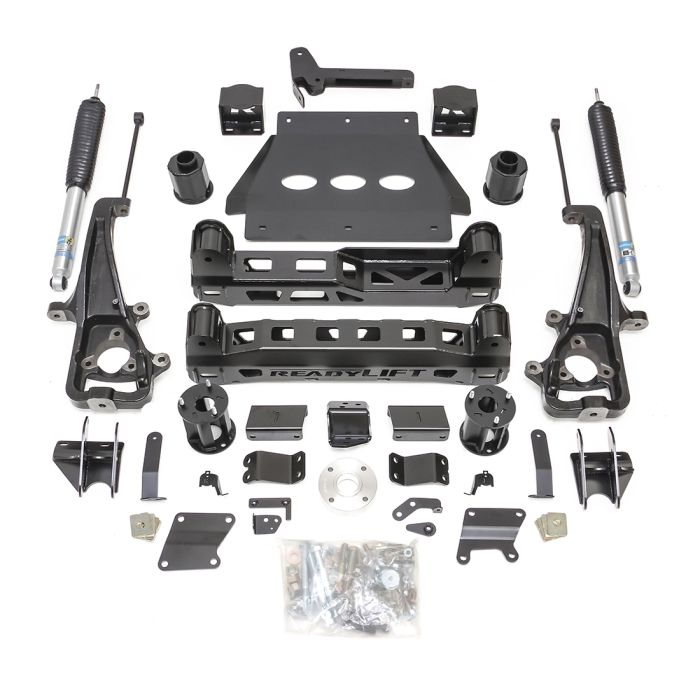

Includes:

• Bilstein 5100 or Falcon 1.1 Monotube shocks
• Dual rate coil springs
• Laser cut HD steel front cross member & differential drop
• Rear track bar bracket
• Longer sway bar end links
• HD cast iron knuckles
• Steel skid plate

Tire Fitment:

• Recommended max tire with no trimming: 20x9 0 offset - 37x12.50 tire
• Max with trimming: 20x10 -18 offset - 37x12.50
• For use on Ram 1500 with factory 22" wheels
• Not for use with 18" wheels.
• Trimming requirements for larger than recommended wheel/tire include front valance, front felt liner edge, rear felt liner edge, and front rear well edge mud flap

•  ReadyLIFT recommends foregoing the front preload spacer installation - the lifted vehicle will sit about 1/2" front high with the preload spacer installed or 3/8" low without the preload spacer.
• Not for use with non-air ride equipped Ram trucks
• Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT

• Does not work with the 3.0-liter twin-turbo inline-six Hurricane engine ( available in some late 2024 models)
