Description
Fits
| Year |
Make |
Model |
| 2019-2024 |
GMC/ Chevrolet |
1500 AT4, Trail Boss |
Featuring HD angled and offset top mount strut extensions that realign the struts to optimize shock performance and minimize wear. A specially designed lower mount strut pre-load spacer offers the added benefit of a slight increase in spring rate to better handle the larger wheels and tires that will find their way onto this new lifted truck. To lift the rear, fabricated steel rear blocks with integrated bump stop landings have been added.
Part Number: 44-39620

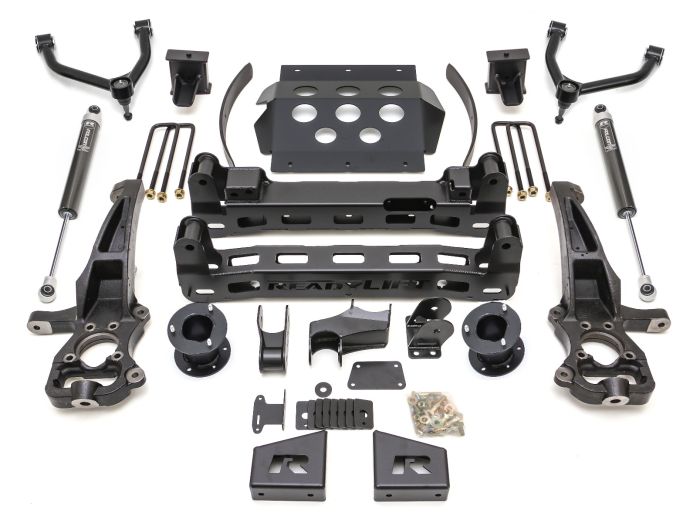

Features
- HD front-rear cross members and skid plate
- HD top mount strut extensions and rear shock extensions
- Sway bar drop brackets
- HD fab steel rear lift blocks with bump stop landings
- HD cast iron lift knuckles engineered to retain factory quality geometry
- All necessary hardware and instructions
Tire Fitment:
- Recommended max tire with no trimming: 20x9 0 offset - 37x12.50 tire
- *Max with trimming: 20x10 -18 offset - 37x12.50
- Trimming requirements for larger than recommended wheel/tire include front valance, front felt liner edge, rear felt liner edge and front rear well edge mud flap
Notes
- Not compatible with rear mono-leaf springs
- Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT
- Not for use on Diesel motor applications
- Use of Auto 4 Hi feature not recommended
Installation
Click here to view installation instructions
