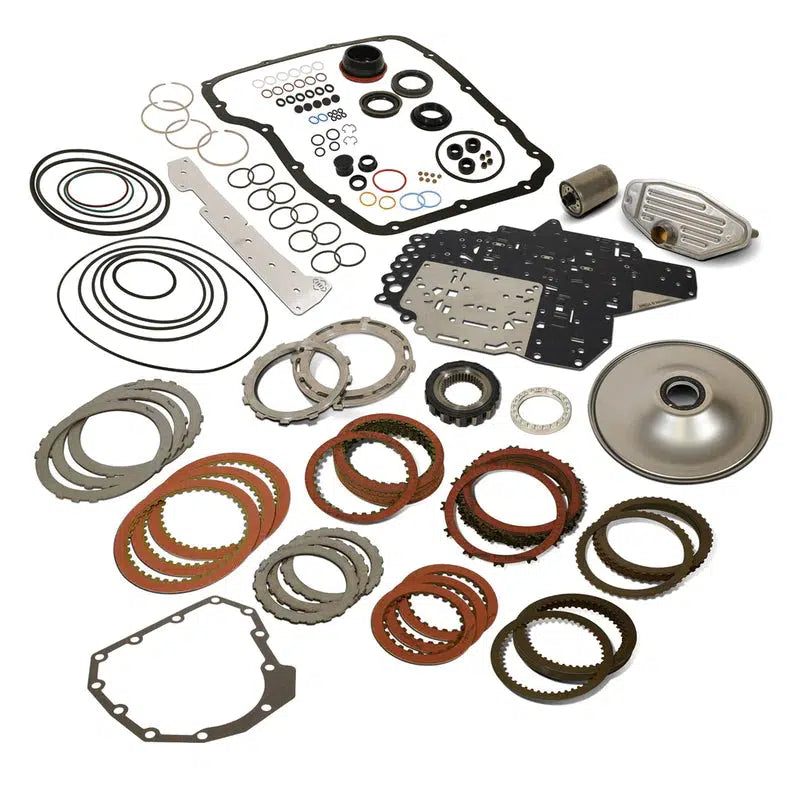

2019-2023 Cummins Build-It 68RFE Trans Master Kit /w ProTect 68 (1062027)

Description

Fits

 Want to rebuild your own tranny? Need some specialty parts? These BD rebuild kits give you everything you need to complete the job

Part Number: 1062027

Features

• Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
• HD accumulator plate to prevent accumulator blowout
• BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
• Upgraded One Way Clutch/Sprag
• OverDrive clutches 17% increase and Under Drive clutches 20% increase

Additional Info

• 3: 2C Clutch Friction
• 3: 2C Clutch Steel
• 3: 4C Clutch Friction
• 3: 4C Clutch Steel
• 15: OD Clutch Friction
• 15: OD Clutch Steel
• 7: Reverse Clutch Friction
• 7: Reverse Clutch Steel
• Filter - Pan
• Filter - Spin On
• Pump Cover
• Billet OD/Reverse Selector Plate
• Billet OD/UD Reaction Plate
• Stiffer Billet Intermediate Reaction Plate
• Stiffer Billet OD/Rev Reaction Plate
• Billet 4C Spring Retaining Ring
• Gasket - Oil Pan
• Gasket - Solenoid Pack
• Gasket Kit - Oil Cooler
• Seal - Solenoid Pack Connector
• Seal - 4wd Output Shaft
• Seal - 2wd Output Shaft
• Seal - Input Shaft
• Seal Kit - 2-4C
• Seal Kit - Input Drum
• Seal Kit - Solenoid Pack
• Seal Kit - Internal
• Seal Kit - External
• O-Ring - pump Cover
• Check balls

Notes

• The customer is required to clean, inspect and reuse their solenoid pack gasket. If it cannot be reused, it must be purchased together with the solenoid pack.
• Tuning is required to increase transmission pump pressures
