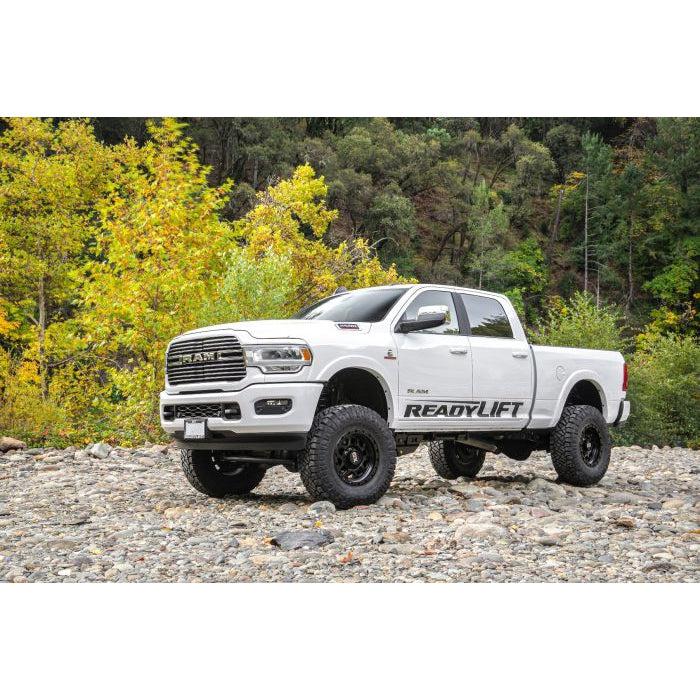

2019-2024 Cummins Standard Output 6" Lift Kit w/ Falcon 1.1 Shocks (49-19610)

Fits

Note: Standard Output ONLY

The Cummins can be a tricky truck to lift sometimes, as often times, there are small components that need to be upgraded that a lot of cheaper lift kits dont include, and you only realize this till you're neck deep in suspension parts. What are these parts, and what would happen if you didn't have them installed? ReadyLift's innovative Driveline Indexing System (DIS) with a transfer case clocking ring, OEM output shaft seal, and adjustable transmission cross-member, ensures correct transmission and pinion position so you never get that irritating driveline vibration.

So at the end of it all, you get a killer combination of menacing aesthetics, superior suspension handling, and articulation for one badass ride, on or off-road.

Part Number: 49-19610

• Maintains factory suspension geometry and articulation
• Maintains factory turning radius without rubbing when using the recommended wheel and tire size
• Bump stop extensions prevent over-compression
• CNC-machined 6061-T6 billet DIS re-clocks the transfer case, aligning the front output shaft for improved driveline angles

Wheel & Tire Fitment:

• Maximum fitment: 37x12.50 tire
  9.5-10" wheel -18 offset

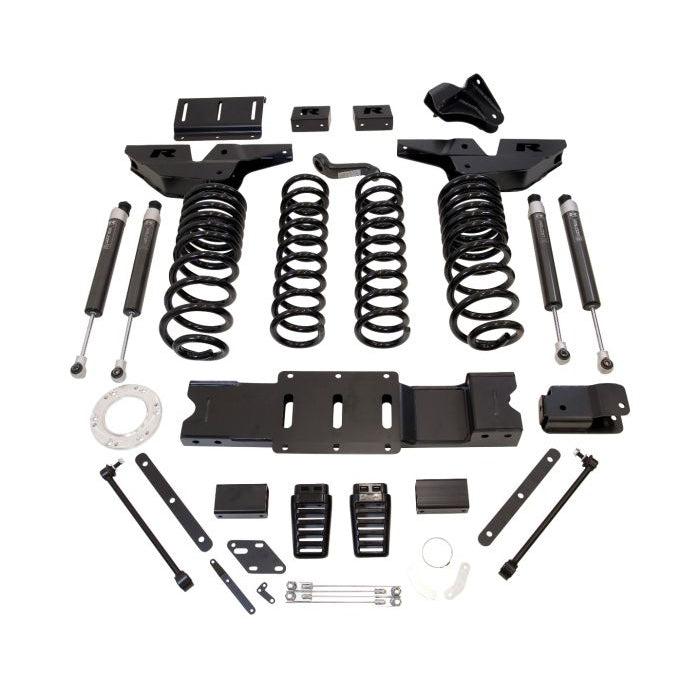

Includes:

• 6" Front Lift Spring

• 4" Rear Lift Rear Coil Spring Spacers

• Falcon Shock, Front

• Falcon Shock, Rear

• Radius Arm Drop Brackets

• Radius Arm Drop Bracket Nut Plates

• Front Track Bar Bracket

• Rear Track Bar Bracket

• Driver, Sway Bar Drop Bracket

• Passenger, Sway Bar Drop Bracket

• 14.25" Sway Bar Endlink

• 5" Replacement Front Bump Stop

• Rear Bump Stop Extension

• Pitman Arm, Drop, Replacement

• Transmission Connector Bracket

• Transmission Crossmember

• Transmission Harness Bracket

• Transmission Mounting Plate

• Transmission Mount Spacer

• 6-Bolt Clocking Ring

• Brake line Bracket, Front

• Rear Brakeline Bracket

• Pinch Clamp

• Hardware Pack

• Only available for the 2500 HD Standard Output Motor and the 68RFE Transmission.
• Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.
• Does not work with Factory Air suspension or the Auto Level system (factory helper bags).
• RAM TSB 03-003-23:  Symptom/Vehicle Issue: Ratchet Type Click, Clicking Noise Heard In Four Wheel Drive (4WD) While Turning. Recommended driveline for the 68RFE Adams Drive Shaft SKU: ASDRAM-1350F-5GEN.
