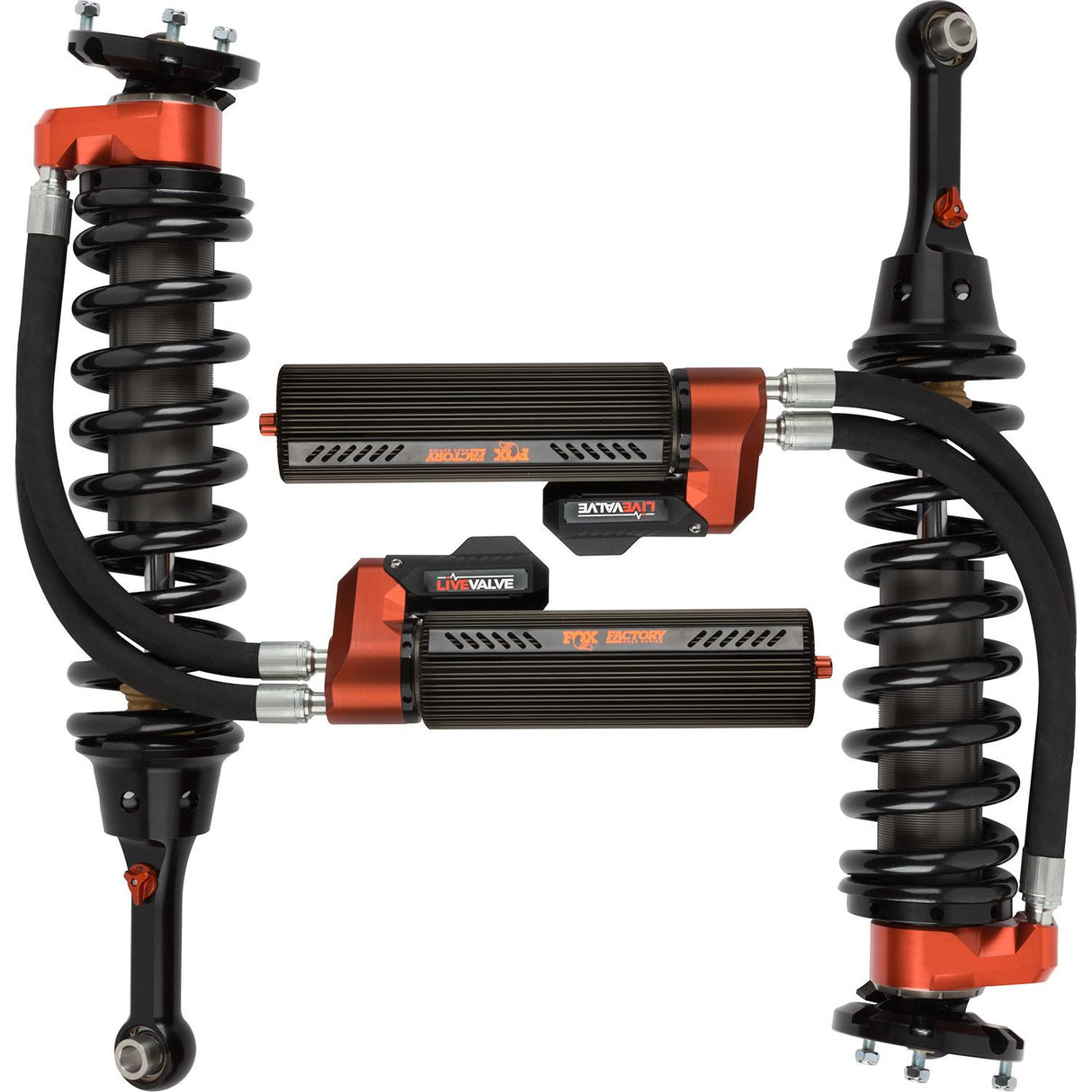

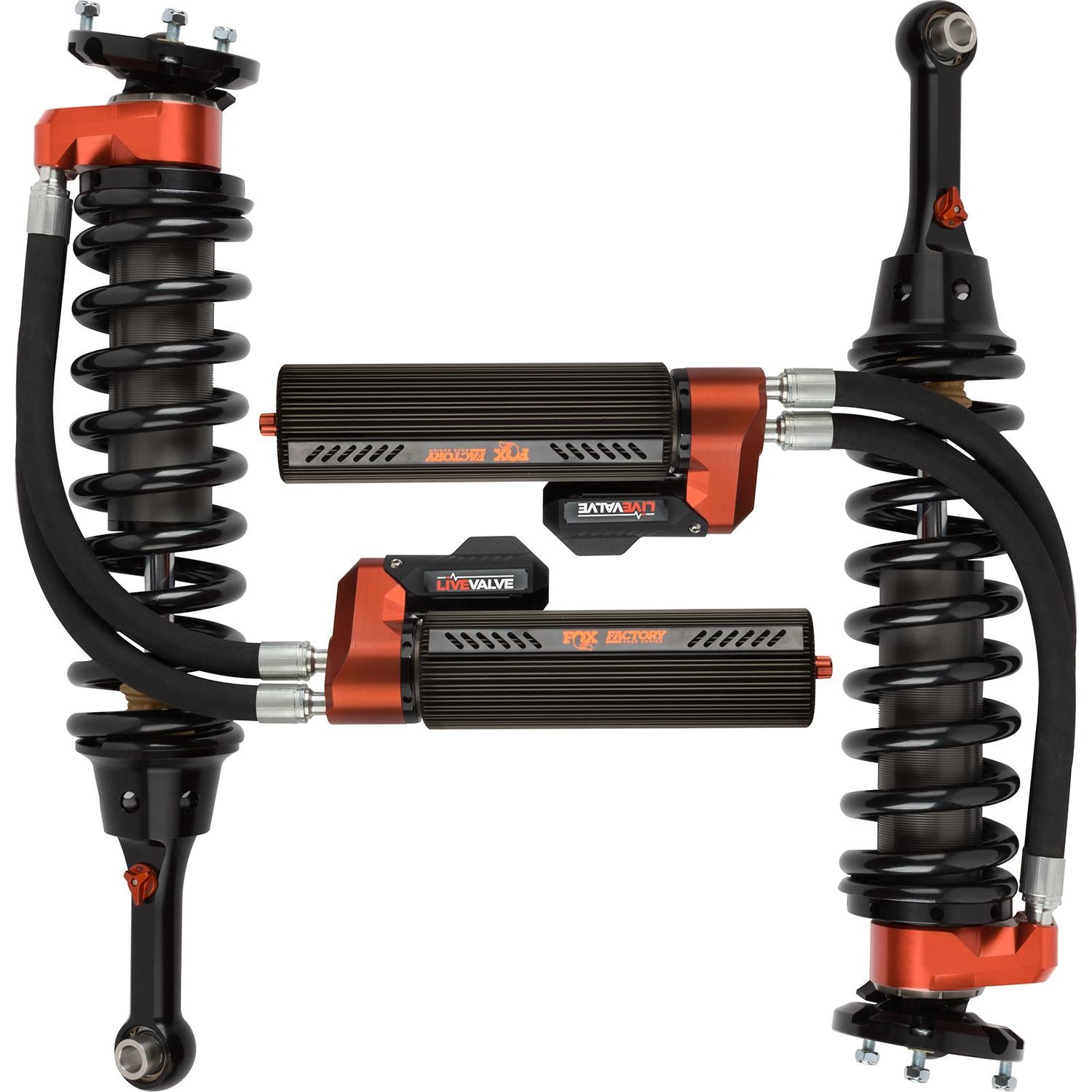

2019-2020 Raptor 3.0 Series 0-2" Lift Internal Bypass Front Coilover (883-06-153)

By using vehicle sensors and accelerometers, Live Valve can instantly adapt to inertial, steering, braking, and acceleration inputs to actively maximize handling, comfort, and bottom-out resistance.

Three-way quick switch adjusters allow the shocks to be optimized for On-Road Performance, On-Road Comfort, or Off-Road Performance while the external cooling system ensures they will perform at their best when you are blasting through the desert.

Part Number: 883-06-153

• Performance Tuned Specifically For Raptors

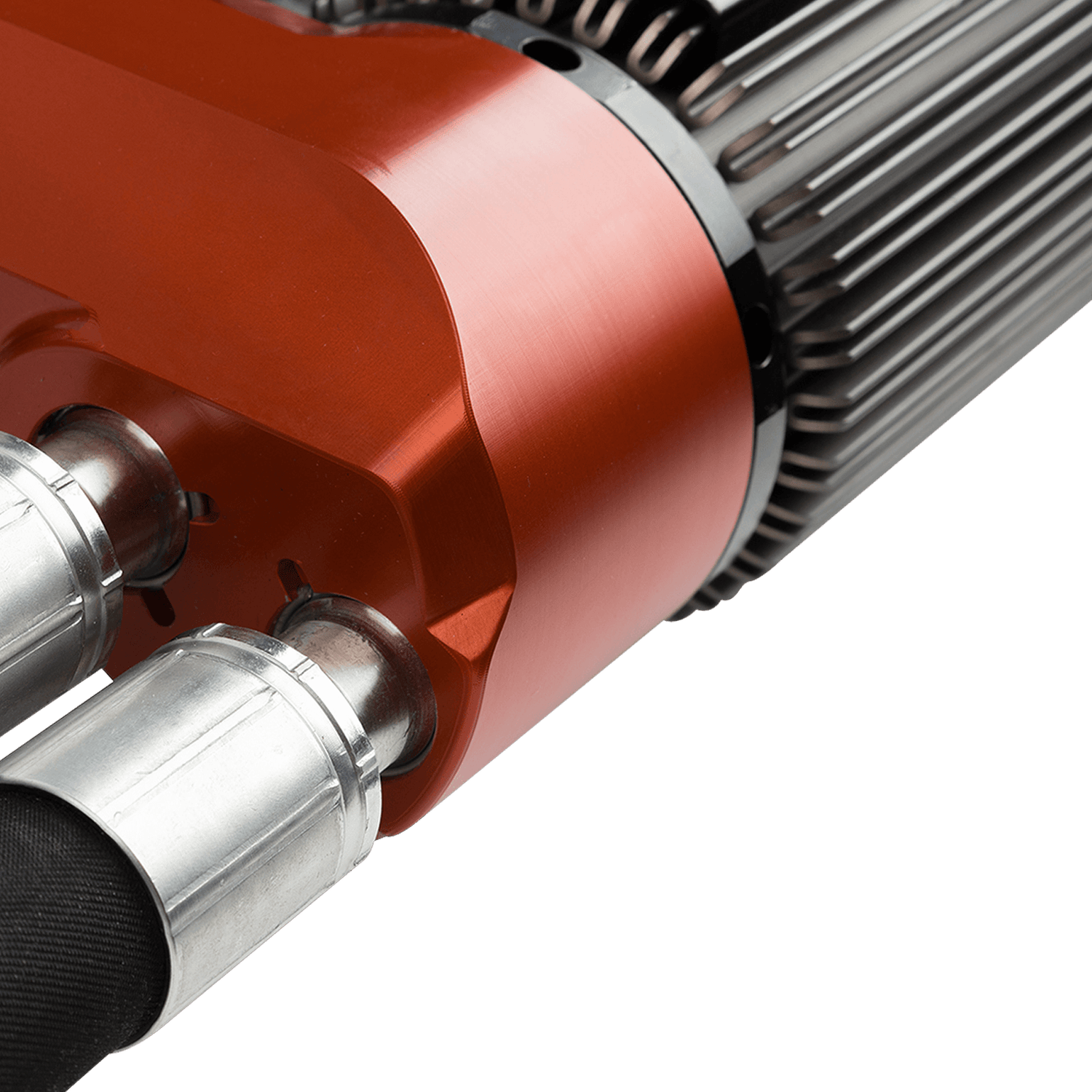

• Finned External Reservoir System Dissipates Heat Fast
• Quick Switch Compression And Rebound Adjusters
• Live Valve Terrain Adaptive Technology

• Body Plating Hard-anodized for a durable finish
• Anodized CNC-machined 6061-T6 billet aluminum
• 7/8" hard chrome plated 17-4 H900 stainless steel
• Hard anodized 6061-T6 billet aluminum high flow race Piston
• Application-specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions
• PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth

Specs:

• Extended Length: 28.49"
• Compressed Length: 20.6"
• Top Mount OEM
• Bottom Mount Eyelet
• Travel 7.89"
• Front Lift Height 0-2"
