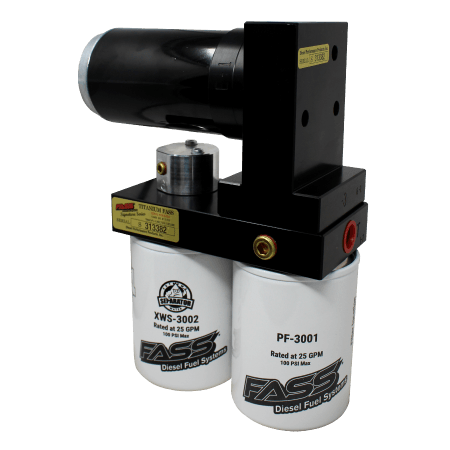

2019-2020 Cummins Titanium Signature Series 290GPH Lift Pump (TSD12290G)

Fits

Power Rating: 1200hp - 1500hp

Flow Rating: 290 Gallons Per Hour

Preset Fuel Pressure:  8-10 PSI

Filter Life Expectancy: 30,000 Mile

Filtration Rating: 2 Micron

Warranty: Limited Lifetime Warranty

The FASS TSD12290G Titanium Signature Series diesel fuel lift pump was engineered by FASS Fuel Systems to be the top-performing, longest lasting and most reliable aftermarket filtration system in the diesel industry. Rated at 290 gallons per hour and backed by a limited lifetime warranty this Titanium Signature Series lift pump is capable of supporting your Dodge Cummins 6.7L diesel engine with enough fuel for multiple fueling upgrades.

A Titanium Signature Series lift pump also offers advanced filtration benefits that will help protect your injection systems, effectively extending the life of both your Bosch Injection Pump and Bosch Diesel Injectors. These Benefits include an improved filtration rating of 2 Microns, a built-in water separation filter, and FASS Fuel Systems patented air/vapor removal process. Aftermarket lift pumps are important for both daily drivers and high-performance Cummins when looking to improve either fuel economy or increase horsepower/torque.

Part Number: TSD12290G

Superseded Part Number: TS D12 290G

• New Whisper Technology
• Includes Two BHF-1005 Bulkhead & Suction Tube Kits
• Complete Replacement Pump
• New Bolt-on Bracket Installation

• Protects & Extends Injector Life
• Improved Cold Weather Starts
• Quietest Motor on the Market
• Improved Fuel Mileage & Volume Delivery
• Limited Lifetime Warranty
• 1,000,000 Mile Motor
• 30,000 Mile Filter Life Expectancy

FASS Whisper Technology (FWT) was engineered to meet the stringent demands of today’s quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System’s high quality and durability standards. FASS Whisper Technology effectively and drastically reduces the sound levels of the Signature Series FASS Diesel Fuel System to a “whisper” while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates.

This kit includes two FASS BHF-1005 (Bulkhead and Suction Tube Kit). Machined from 6061 T-6 Billet Aluminum, the Bulkhead fittings function as both a suction and return tube. This new and improved version from our previous Suction Tube Kit allows the user to plum their FASS suction and return line directly to their bulkhead fitting which is mounted directly on the fuel tank module, eliminating all cutting of the filler neck and significantly speeds up the installation process. The pickup tube is fabricated of PTFE Teflon which can be easily cut to adapt to different depth of fuel tanks. Properly installed, you can safely operate down to below 1/8 tank of fuel.

Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth-flowing cuts within the aluminum housing.  This prevents the reintroduction of air and vapor back into the fuel and prevents eddy currents from forming within the corner of a 90° sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90° fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.

Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that’s not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor, and water. This means your fuel is being constantly “Polished” (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional FASS Fuel Heater options will help insure “EXTREME” cold weather operations!

• For those with a 19-20 Cummins, D12RK1001 is necessary if you're truck has, or is going in for the CP3 recall. These fittings correctly plumb the Fass feed line.
