2018-2023 Wrangler EnduroSport 3" Suspension Lift System (JL30-1X5310-L4)

Fits

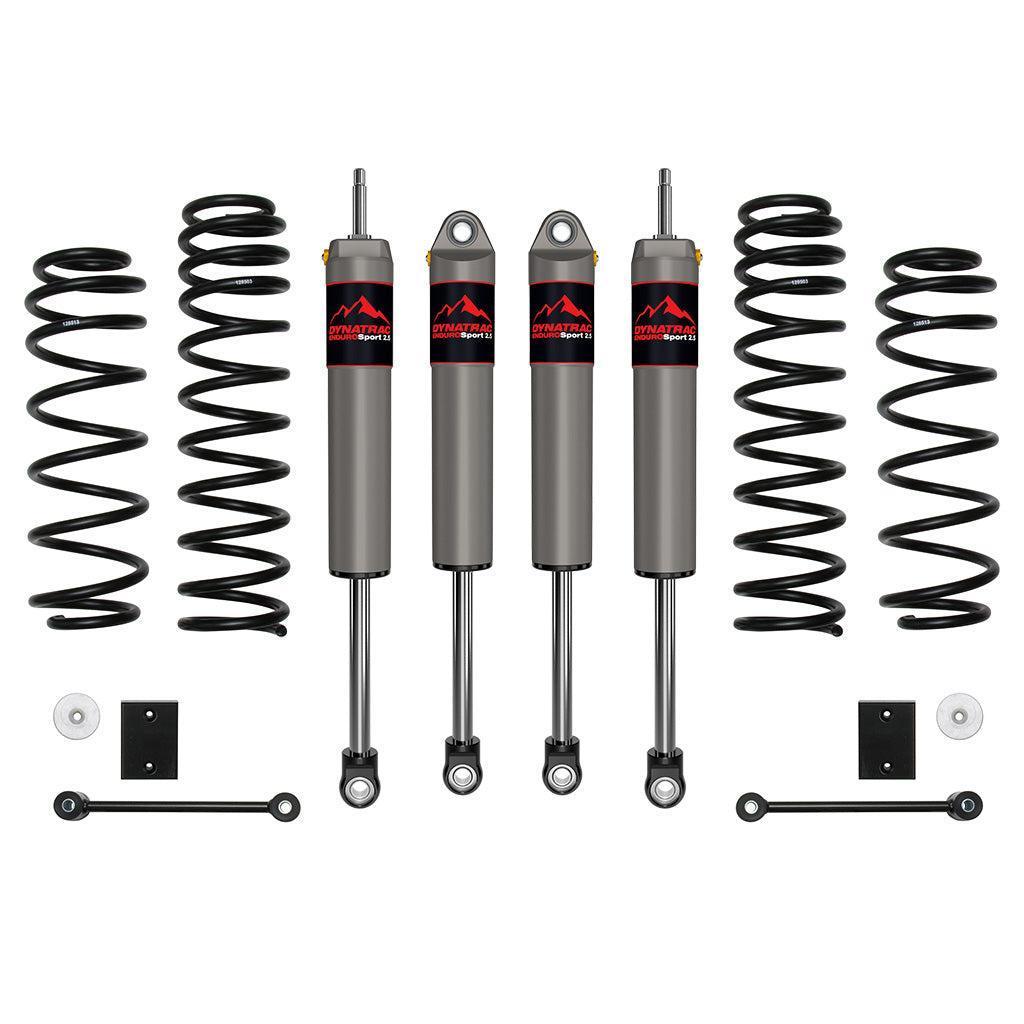

The Dynatrac 3" Suspension Lift System 4 for 2018+ Jeep Wrangler JL boosts your ride with upgraded 2.5 EnduroSport shocks and 3" dual-rate coil springs. It adds extra wheel travel—3" front, 2" rear—so you can fit up to 35" tires easily. Comes with everything you need, and if you want to go bigger with 37" tires, there’s an optional bump stop spacer kit.

Part Number: JL30-1X5310-L4

• 3" front, 2" rear increase in wheel travel
• 3" lift height over stock
• Fits 35" tires (37" with optional extended bump stop spacer kit)
• Improves on and off-road ride quality over stock
• Dual rate coil springs with lifetime guarantee against sagging/breakage
• 2.5 EnduroSport shocks with Jeep JL-specific valving offer greater shock damping and performance
• 100% bolt-on
• Easy install
• Tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Bushings Included: No
• Coil Spring End 1 Type: Closed
• Coil Spring End 2 Type: Closed
• Coils Quantity Front: 2
• Coils Quantity Rear: 2
• Front Spring Rate Type: Progressive Dual Rate
• Grade Type: Performance
• Maximum Lift: 3
• Maximum Lift Front: 3
• Maximum Lift Rear: 3
• Mounting Hardware Included: Yes
• Rear Spring Rate Type: Progressive Dual Rate
• Reservoir Style: Internal
• Shock Body Diameter: 2.5
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

• Springs are NOT rated for use with models equipped with EcoDiesel engines.
• Not compatible with Wrangler JL 4xe or Unlimited Rubicon 392 trims.


• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5" w/ 4.5” Backspace / -6mm Offset
• Recommended Aftermarket Tires: 35 x 12.50 (37 x 12.50 with optional extended bump stop spacer kit PN: DT922029)
