2018-2023 Jeep 2.5" Coil Spring Base Lift Kit (HP10457)

Fits

Note: Will NOT fit: 3.0L EcoDiesel Engines

Each Pacbrake suspension system is built with Quality, Durability and Value as top priorities. This set includes Dual Rate Springs, usually only seen in higher-end competitor kits, as well as front & rear track bar relocation brackets and shock extensions not typically found in basic competitor kits. No need for new wheels here (unlike some kits that would mess with stock wheels due to longer rear end links)!

Part Number: HP10457

• Max tire 35"
• Will fit stock wheels
• Easy bolt-on
• No need for coil spring retainers
• 2-year warranty
• Spring Rate (Initial / Ride Rate)
  • Front: 104 / 140 lbs/in
  • Back: 135 / 220 lbs/in

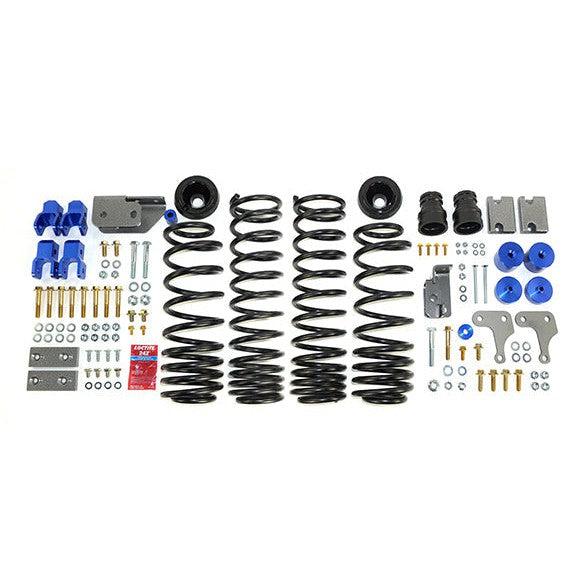

Includes:

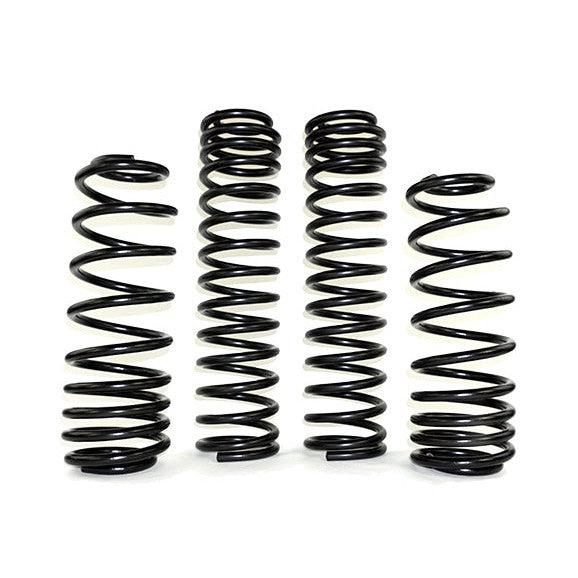

• 2.5" lift coil springs

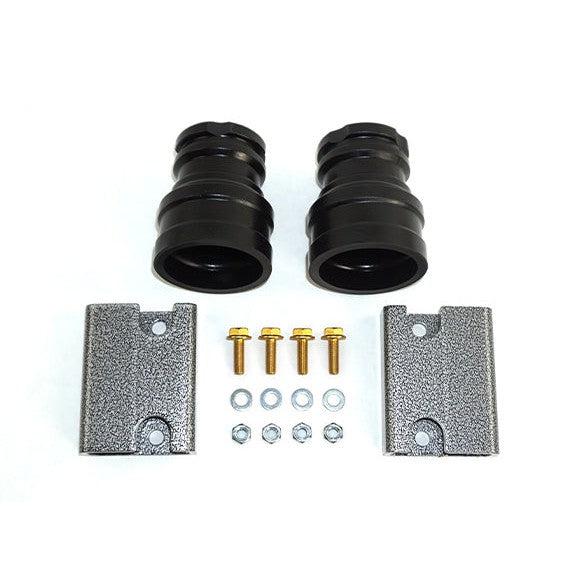

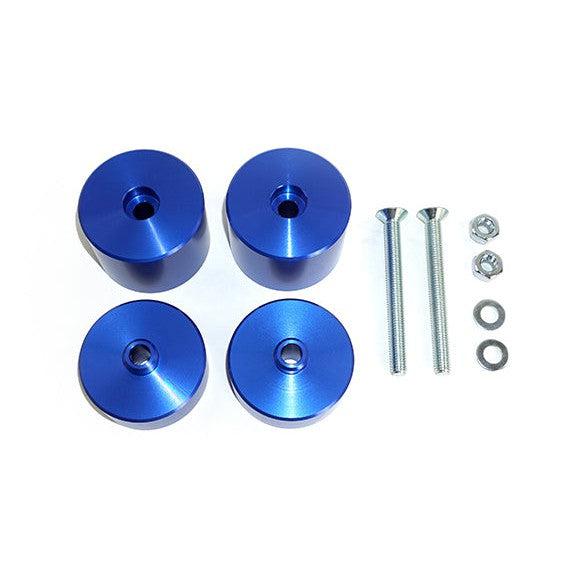

• Front & Rear bump stop extensions

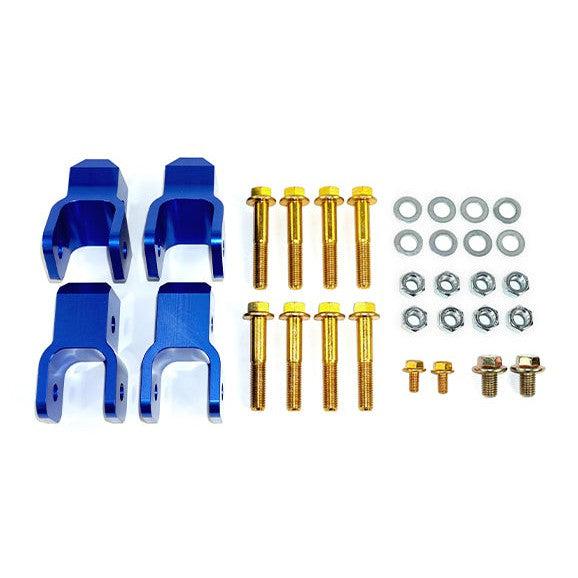

• Shock extensions

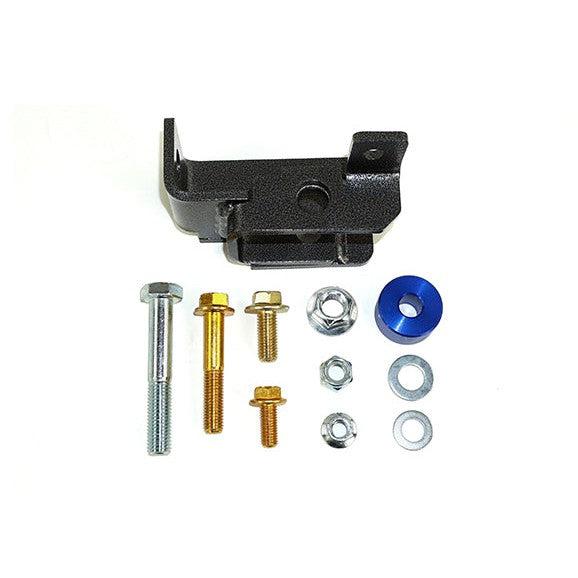

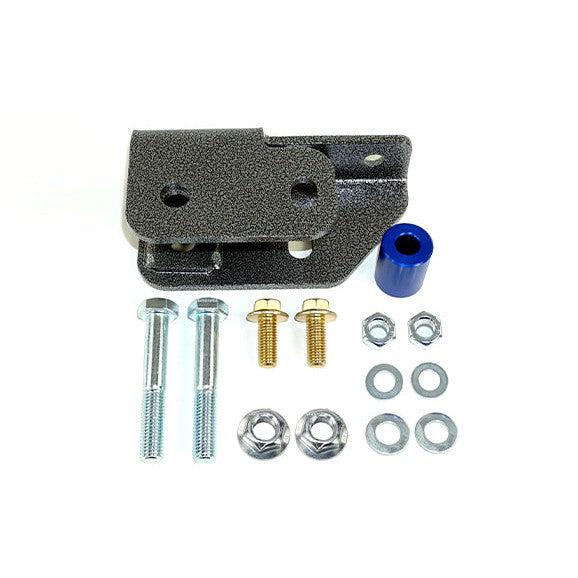

• Front & rear track bar relocation brackets
• Front end link extensions

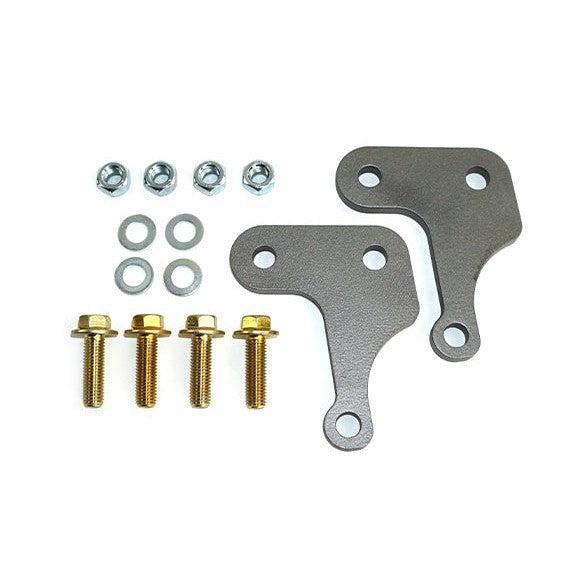

• Rear sway bar drop spacers
• All necessary hardware



• Click Here

• Models with plastic bumpers require removal of bumper-to-fender wind deflector/splash guards in order to fit 35" or larger tires. Lift specs are for a 2021 Jeep Unlimited, 3.6L V6 (4263 lbs); exact lift will depend upon weight of vehicle, including engine selected and any other modifications.

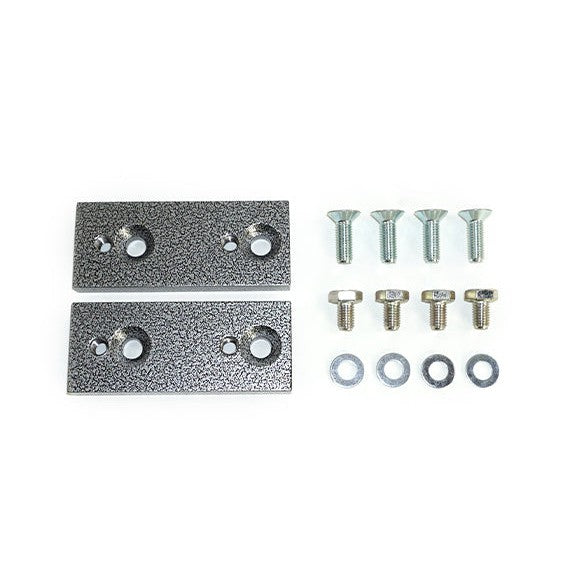

• Sport/Sahara models require the INCLUDED 0.5" front bump stop strike pad spacers in order to fit 35" tires.

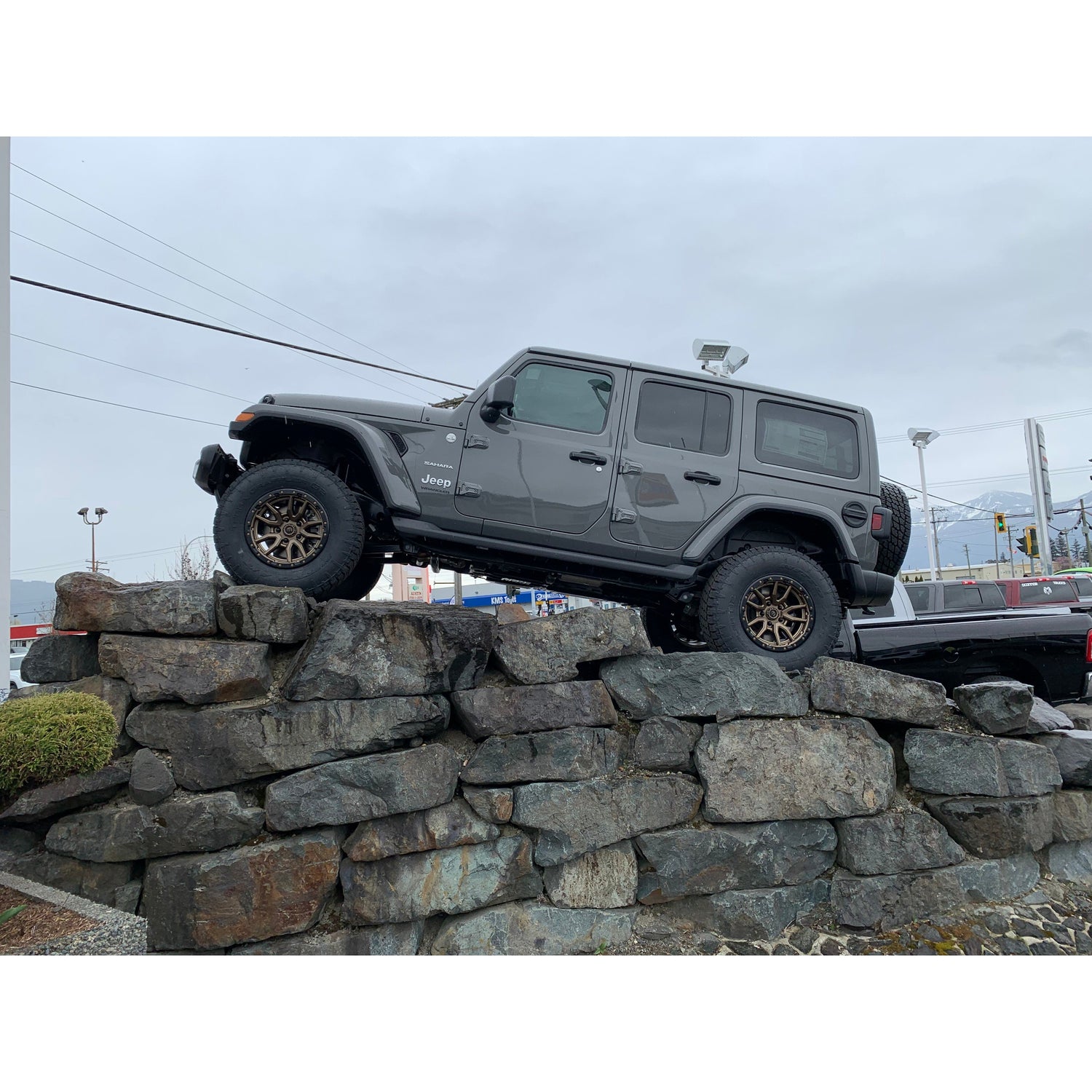

• Lift specs are for a 2021 Jeep Unlimited, 3.6L V6 (4263 lbs); exact lift will depend upon weight of vehicle, including engine selected and any other modifications.
